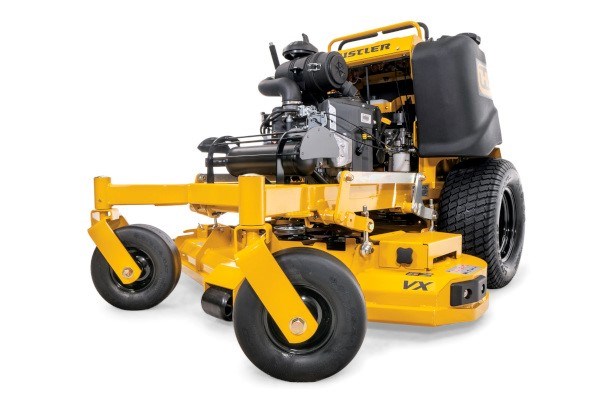

Hustler Turf Super S 52"
A Stand-On With Exceptional Operator Comfort, Control And Maneuverability.
Hustler's Super S® features superior operator comfort and positioning, operator-friendly controls and a compact stance that makes navigating tight spaces easy.
Shopping Tools
Super S 52" Features & Benefits
Adjustable Foot Platform
Adjustable spring loaded suspension foot platform for comfort.
Adjustable Speed Controls
Allows you to go at your own pace for control. Also helps with training new operators.
Service Friendly Design
Designed to make maintenance and service simple and easy.
Compact Design
Designed for tight spaces and for trailering from job-to-job.
VX Deck
Fabricated 7 ga. steel engineered for extreme vacuum performance and cut quality.
Super S 52" Specs & Compare
| Key Specs | Super S 52" |
| ENGINE MANUFACTURER | Kawasaki FX691, FX850, FX850 EFI |
| ENGINE HORSEPOWER | 22, 27, 29.5 |
| TRANSMISSION | Hydro-Gear 12cc pump with Parker TL wheel motors |
| FUEL CAPACITY | 7.3 gal. |
| GROUND SPEED (FWD) | Up to 9 mph |
| CUTTING WIDTH | 52" |
| CUTTING HEIGHT | 1.5" to 5.5" |
| FRONT TIRE | 13 x 5-6 semi pneumatic |
| DRIVE TIRE | 24 x 9.5-12 |
| Engine | |
| ENGINE MANUFACTURER | Kawasaki FX691, FX850, FX850 EFI |
| ENGINE HORSEPOWER | 22, 27, 29.5 |
| DISPLACEMENT | 726cc |
| COOLING | Air Cooled |
| AIR CLEANER | FT: Vortical, FX: Heavy duty canister |
| Drive System | |
| TYPE | Dual Hydrostatic |
| TRANSMISSION | Hydro-Gear 12cc pump with Parker TL wheel motors |
| HYDRAULIC LINES | |
| RESERVOIR CAPACITY | |
| HYDRAULIC COOLING | |
| FUEL CAPACITY | 7.3 gal. |
| GROUND SPEED (FWD) | Up to 9 mph |
| PARKING BRAKE | Hand operated drum brakes |
| Deck | |
| CUTTING WIDTH | 52" |
| CUTTING HEIGHT | 1.5" to 5.5" |
| DECK DEPTH | 5.5" |
| DECK LIFT | Hand Operated |
| NUMBER OF BLADES | 3 |
| BLADE LENGTH | 17.86" |
| BLADE TIP SPEED | 17,700 |
| SPINDLES | Ductile cast iron with steel shaft and sealed ball bearings |
| DECK ENGAGEMENT | Electric PTO Clutch |
| DECK MATERIAL | 7 gauge fabicated with 7 gauge wrappers |
| SPINDLE MOUNTS | 7 gauge with 7 gauge doubler |
| IMPACT TRIM AREA | 11 gauge formed channel with rolled edge |
| ANTI-SCALP WHEELS | |
| Construction | |
| FRAME | 1.5" x 3" steel tube |
| ENGINE PLATE | 7 gauge with 11 gauge jackshaft doubler |
| OPERATOR PLATFORM | 7 gauge with embossed tread pattern |
| FRONT AXLE | Fabricated with tapered roller bearings |
| FRONT CASTER WHEEL | Tapered wheel bearings and debris cap |
| FRONT CASTER FORK | Fabricated 3/8" steel |
| Dimensions | |
| FRONT TIRE (INCHES) | 13 x 5-6 |
| DRIVE TIRE (INCHES) | 24 x 9.5-12 |
| WING TIRE (INCHES) | |
| WEIGHT (LBS) | 1153-1182 |
| HEIGHT (INCHES) | 47 |
| LENGTH (INCHES) | 68 |
| WIDTH W/ CHUTE UP (INCHES) | 52.8 |
| TIRE-TO-TIRE WIDTH (INCHES) | 45.8 |
| PRODUCTIVITY (ACRES PER HOUR) | 3.79 |
| Dimensions with Catcher | |
| CATCHER STYLE | Side Catcher |
| POWERED / NON-POWERED | Non-powered |
| CATCHER CAPACITY | 3.5 bushel |
| MOWER LENGTH W/ CATCHER | 64" |
| MOWER WIDTH W/ CATCHER | 72" |
