Powerful and Efficient X-TORQ® Engine
The X-Torq® engine design reduces harmful exhaust emissions by up to 60% and increases fuel efficiency by up to 20%.
Heavy duty edger head
The 90 degree edger head is designed for tough commercial use.
Auto return stop switch
When the machine is turned off, the stop switch automatically returns to the start position for easier starting.
Stand alone starter
The stand alone starter makes it easy to change starter cord if needed.
Intuitive controls
Easy to use and maneuver
Efficient air filter
The efficient air filter provide less cost for service and less engine wear

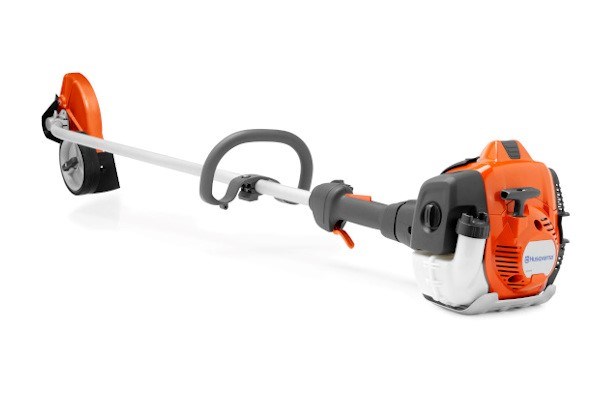

MODEL | 525ECS SKU: 967 17 60‑01 |
525ECS SKU: 967 17 60‑02 |
Dimensions | ||
Weight (excl. cutting equipment) | 13.9 lbs | 13.9 lbs |
Product Size, LxWxH | 68.9 x 11.1 x 11.8 in | 68.9 x 11.1 x 11.8 in |
Tube length | 59.055 in | 59.055 in |
Tube diameter | 0.9 in | 0.9 in |
Engine | ||
Cylinder displacement | 25.4 cm³ | 25.4 cm³ |
Power output | 1.34 hp | 1.34 hp |
Maximum power speed | 8,500 rpm | 8,500 rpm |
Fuel tank volume | 17.3 fl oz | 17.3 fl oz |
Fuel consumption | 600 g/kWh | 600 g/kWh |
Idling speed | 3,000 rpm | 3,000 rpm |
Lubricant | ||
Lubricant type (bevel gear) | Mineral grease | Mineral grease |
Sound and noise | ||
Sound pressure level at operators ear | 94 dB(A) | 94 dB(A) |
Transmission | ||
Drive gear angle | 30° | 30° |
Vibrations | ||
Equivalent vibration level (ahv, eq) front handle | 4.2 m/s² | 4.2 m/s² |
Equivalent vibration level (ahv, eq) rear handle | 9.1 m/s² | 9.1 m/s² |
