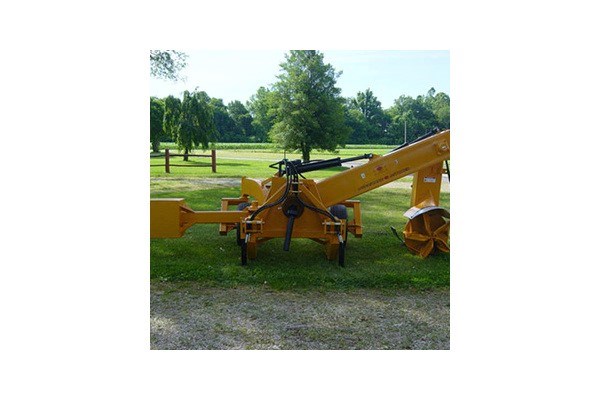

The Baby Side-Arm is designed as an inexpensive and efficient way to clean roadside and drainage ditches.
First designed in 1996, the Baby Side Arm Ditcher is an inexpensive and efficient machine used to clean roadside and drainage ditches. Tackling any soil condition, the Baby Side Arm’s versatility allows it to be used for any drainage application.
Recommended HP Speed | 90 HP to 150 HP |
Power Take-Off (PTO) | Series 55, 1000 RPM with shear bolt protection 1-3/8-21 spline Optional: 1-3/4-20 spline 1000 RPM or 1-3/8-6 spline 540 RPM |
Hitch Type | Cat II or III quick hitch |
Impeller Wheel | 26" 5-paddle impeller |
Rear Shoe (dragplate) | |
Approximate shipping weight | 4,300-5,000 lbs. |
Gearbox | 5/16″ material with double 80 roller chain, oil bath, external idler tension adjustment |
Depth of cut | Up to 12" per single pass |
Width of cut | |
Volume of soil moved with 100 HP tractor | Up to 8" over 1 mile ditch per hour |
Optional Add Ons | Tail wheel assembly Laset or GPS Control Electronic/Hydraulic valve |
