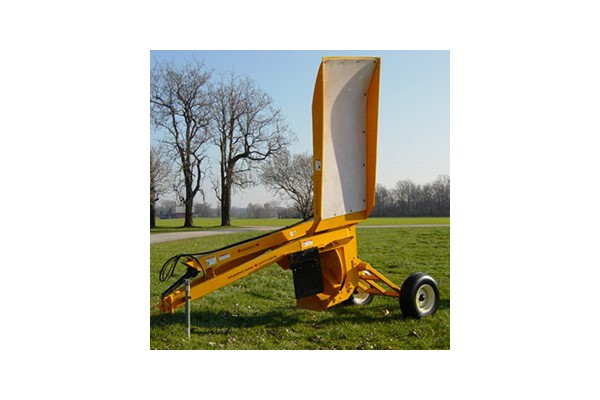

The Model 24 is a pull type ditcher-terracer capable of making drainage ditches, building and maintaining waterways and terraces and cleaning small road ditches.

  • Get a Quote Value Your Trade Request Brochure
  • Send to a Friend
  • Payment Calculator

    • Get information on the Model 24 Ditcher-Terracer

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Request Brochure

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the Model 24 Ditcher-Terracer

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on Model 24 Ditcher-Terracer

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

Model 24 Ditcher-Terracer Features & Benefits

The Model 24 Ditcher-Terracer was developed in 1986 as an efficient and affordable machine to make surface drainage ditches, to construct and clean waterways, and to build and maintain terraces using a standard farm tractor. It has become increasingly popular among soil conservation districts for cleaning waterways and rebuilding terraces.

Key Features
  • Operates with 100-180 HP tractor
  • Equipped with jack stand for easy hook-up and disconnection
  • Dispenses soil over a 100′ area out the left side of the machine
  • Easily laser adaptable for more precise grade control
  • Telescoping axles on the rear wheels allow easier straddling of ditches
  • Hydraulic depth control utilizes the rear wheels to maintain grade and to give a smooth, flat bottom to the ditch
  • 36″ 4-paddle impeller contains hard-surfacing and is designed to be resurfaced as it wears
  • Gearbox consists of large shafts, heavy-duty sprockets and bearings, and double 80 roller chain, all enclosed and running in an oil bath; use the external idler adjustment for chain tensioning to dramatically increase the life of your equipment
  • Optional terracing shield to contain and position soil

Model 24 Ditcher-Terracer Specs & Compare

Recommended HP Speed100-180 HP
Power Take-Off (PTO)Series 55, 1000 RPM with shear bolt protection
1-3/8-21 spline
Optional: 1-3/4-20 spline 1000 RPM
Hitch TypeStandard, Clevis Hitch
Impeller Wheel36″ 4-paddle impeller with 24" cutting edge
Rear Shoe (dragplate)
Rear Shoe (dragplate)
Approximate shipping weight3,200-3,600 lbs.; tongue weight 1,200 lbs
Gearbox1/2″ material with double 80 roller chain, oil bath, external idler tension adjustment
Depth of cutUp to 10" in a single pass; up to 28" in multiple passes
Width of cut24" plus taper on each side
Volume of soil moved with 100 HP tractorUp to 300 tons per hour (5 tons per minute)
Volume of soil moved with 140 HP tractorUp to 1,080 cubic yards per hour (18 cubic yards per minute)
Optional Add OnsTerracing shield allows soil to be placed 7' to 30' from the machine
Deflector shield allows soil to be placed within 7' to 12' of the machine
