The standard 20″ 6-paddle impeller on the 3-PT 20 is ideal for running in extremely trashy or wet conditions.

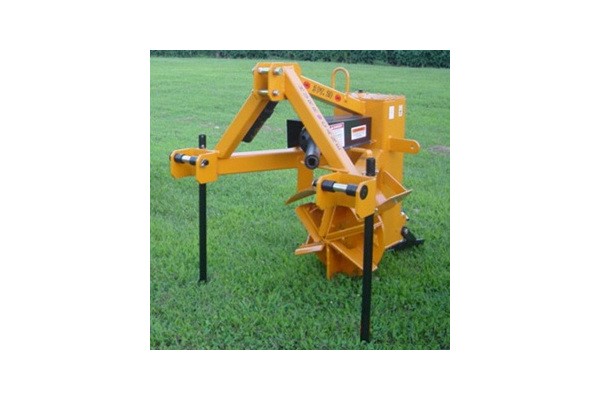

The model 3-PT 20 3-Point ditcher is designed to provide an economical way to make surface drainage ditches using your own farm tractor. Like all Hurricane 3-Point models, the 3-PT 20 is equipped with parking stands for easy hook-up and disconnection. It can be used with Cat II or III quick hitch by moving the bushings to the desired location. Soil will be scattered 20 to 30 feet at left side of machine.
Recommended HP Speed | 60-140 HP |
Power Take-Off (PTO) | Series 55, 1000 RPM with shear bolt protection 1-3/8-21 spline or 1-3/4-20 spline Optional: 1-3/8-6 spline 540 RPM |
Hitch Type | Cat II or III quick hitch |
Impeller Wheel | 20″ 6-paddle impeller Optional: 15″ 5-paddle impeller Optional: 20″ 4-paddle and 18″ cutting edge |
Rear Shoe (dragplate) | Includes heavy-duty ratchet jack |
Approximate shipping weight | 900-1,150 lbs. |
Gearbox | 5/16″ material with double 80 roller chain, oil bath, external idler tension adjustment |
Depth of cut | Up to 10" in a single pass; up to 20 inches in multiple passes Up to 16" in multiple passes with optional 15″ 5-paddle impeller |
Width of cut | 21" with standard 6-paddle impeller wheel 18" plus taper on each side with optional scoop attachment and 4-paddle impeller wheel 15"with optional 5-paddle impeller wheel |
Volume of soil moved with 80 HP tractor | Up to 397 cubic yards per hour (6.5 cubic yards per minute) |
Volume of soil moved with 140 HP tractor | Up to 611 cubic yards per hour (10.2 cubic yards per minute) |
Optional Add Ons | Ripper tooth Deflector Shield 15" 5-paddle impeller with 18" cutting edge 540 RPM PTO GPS |
