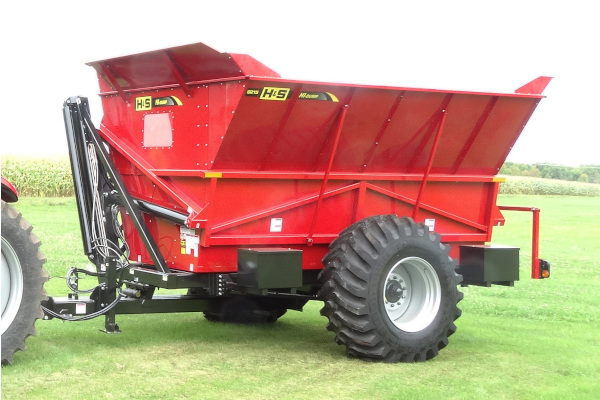

Features
- Combination 10 and 12 gauge steel tub construction.
- Heavy gusseted and reinforced box style frame.
- With a GVWR rating of approximately 45,000 lbs., and an empty box weight of around 15,000 lbs., the 9215 is capable of lifting and dumping approximately 30,000 lbs of product
to meet the GVWR capacity. - The variable dumping height gives you more versatility at harvest time.
- The ENTIRE dumping cycle should take approximately two minutes depending on hydraulic supply output.
- The master/slave hydraulic system automatically rephases at the end of each cylinder stroke and has the flexibility to top off a truckload with a partial dump – not restricted to a
full dump cycle. - Right hand dump has a 47 degree dumping angle.
- (2) 27” x 16” Sight windows and (2) tub access panels.
- Standard highway lighting.
- Adjustable height single clevis swivel hitch.
- Telescoping/adjustable length pole.
- Heavy-Duty 4½” Spindles.
- Rear Tow Bar
- 12,000 lb Jack
Specs
| HDB9215 | |
| Cubic Ft. Capacity Struck Level w/o Ext. | 863 |
| Cubic Ft. Capacity Struck Level w/ Ext. | 1,129 |
| Inside Length of Box | 180" (15') |
| Inside Width of Box - Bottom/Top | 65"/136" (5' 5"/11' 4") |
| Depth of Box | 89" (7' 5") |
| Overall Length Min./Max w/ Pole Adjustment | 304"/328" (25' 4"/27' 4") |
| Overall Width | 158" (13' 2") |
| Shipping Width (top slide to hub cap) | 143" (11' 11") |
| Loading Height | 130" (10' 10") |
| Shipping Height | 117" (9' 9") |
| Front Lift Cylinder (size/length) | 5.5" x 72" |
| Rear Lift Cylinder (size/length) | 4.75" x 72" |
| Dump Cylinders (size/length) | 5" x 71.25" |
| Maximum Dump Lip Clearance | 31" (2' 7") |
| Minimum Dump Height | 116" (9' 8") |
| Maximum Dump Height | 184" (15' 4") |
| Maximum Ground Clearance | 15" (1' 3") |
| Tread Width | 121" (10' 1") |
| Spindle Size | 4.5" |
| Tires | 30.5 x 32 R1 16 Ply Radial Tires |
| Jack | 12,000 lbs |
| Shipping Weight w/ Tires | 15,243 lbs |
