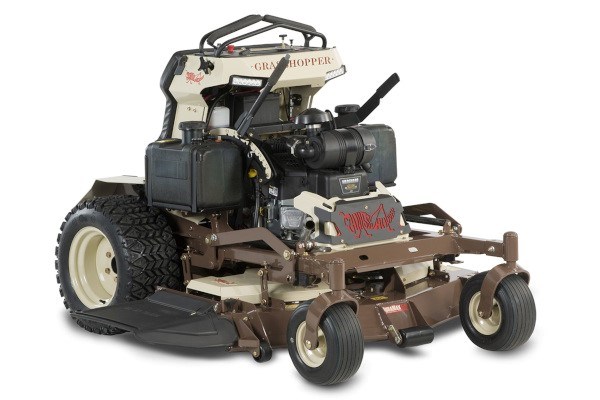

Grasshopper MODEL OutStander® SO26
Take your business to the next level. The Stand-On Series is designed for extreme operator proficiency and all-day ergonomic comfort. True ZeroTurn™ maneuverability, outstanding ease-of-use, effortless on/off and legendary Grasshopper cut quality combine to deliver superior performance.
Fleet managers will appreciate the commonality of parts between Stand-On models and the rest of the Grasshopper product line.
Shopping Tools
MODEL OutStander® SO26 Features & Benefits
Command Center Tower
- Provides 4.5 inches of adjustable range and is positioned to provide a panoramic view of the mowing environment and easy reach of all switches, levers and controls, including a deep phone/accessory tray with USB charging ports.
- Features an extra-wide, extra-thick pad with embroidered Grasshopper logo.
LED Work Lights
- LED work lights provide improved visibility in low light situations.
Heavy-Duty Deck
- Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
- Specially designed cutting chambers enhance airflow for better cut quality
- Deck easily converts from side discharge to optional Down Discharge™ mulching
- Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
- Spindle planes are fabricated from double-layered formed steel laminate and combine with the spindles to form a triple-strength deck to keep blades level and deliver a high-quality cut.
- Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion
Hydraulically Dampened Control Levers
- Hydraulically dampened control levers that also provide responsive and effortless maneuvering–including one-hand operation–and return to neutral when released from forward and reverse. Adjustable grip bar accommodates larger and smaller reaches of different operators.
Wide Anti-Slip Platform
- Equipped with coil-spring suspension and dampeners, insulating the operator from vibrations, for a smooth, shock-reducing, floating-action ride and minimal bouncing.
Low Center of Gravity
- Every Grasshopper mower is designed with a low center of gravity for optimal traction and stability. The centralized location of the engine, T-Drive™ pump and dual fuel tanks on Stand-On models lowers the overall center of gravity, and a total fuel capacity of 9.25 gal/35.0 L reduces the need for frequent refueling.
EZ Deck lift lever
- Cutting height is effortlessly raised and lowered thanks to the smooth motion of the hand-operated lever.
USB Ports
- Two USB Charging Ports
Compact Wheelbase
- The compact wheelbase provides an incredible power-to-size ratio.
- Easily fit more units on trailers and maneuver through tighter spaces.
Minimal Maintenance
- Five grease points and easy top-side access to belts and filters
- 500-hour transmission fluid change intervals
- Self-tensioning belts minimize cost and labor on routine maintenance
Rugged Construction
- Robotically-welded steel construction for long-lasting durability
- Centered-bearing design provides greater load-bearing capacity to handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
- Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance
B&S Vanguard Engine
- 810 cc (49.4 cu. in.) Vanguard, V-Twin, OHV engine
- Heavy-duty components enhance power and reliability
- Remote-mounted, centrifugal multi-stage air cleaner with advanced debris managements
- Extended maintenance intervals
- Three-year limited commercial engine manufacturer warranty (see dealer for details)
MODEL OutStander® SO26 Specs & Compare
| ENGINE | |
| Type/Horsepower/Cylinders | B&S Vanguard V-Twin |
| Displacement | 49.4 cu. in. (810cc) |
| Lubrication System | Pressure Lube/Filter |
| Crankshaft | Vertical |
| Cooling System | Air |
| Fuel | Gasoline - unleaded |
| Fuel Capacity | 9.25 U.S. Gal. (35.0 l) total fuel capacity twin tanks with fuel selector |
| Optional Fuel Capacity | NA |
| Air Cleaner | Heavy-duty, cyclonic, remote-mounted engine dual cleaner with replaceable element |
| Muffler | Ultra-quiet, single, industrial type |
| DURAMAX® DECKS | |
| DECK | DuraMax |
| Mulching Package # | |
| DURAMAX® DECK SIZE | – 41" Deck NA – 42" Deck NA – 44" Deck NA – 48" Deck NA – 52" Deck (3) 18 in. (45.7 cm) – 61" Deck (3) 21 in. (53.3 cm) – 72" Deck NA |
| CUTTING HEIGHT RANGE | 1.0 - 5.5 in. (2.5 - 12.7 cm) in 1/4-inch increments |
| CONSTRUCTION (Robotic-welded steel) | Double-layered, 10-gauge plus 7-gauge formed-steel laminate spindle plane 0.313 in. (7.95 mm) thick more than 25% thicker than 0.25 in. (6.35 mm) with 7-gauge skirts for geometric strength. Spindle plane is 0.9 in. (22.86 mm) thick in stress zones; anvil-edge design with 0.5 in. (12.7 mm) reinforcement on front edge of deck. |
| BLADES (Tempered, alloy steel) | – 41" Deck NA – 42" Deck NA – 44" Deck NA – 48" Deck NA – 52" Deck (3) 18 in. (45.7 cm) – 61" Deck (3) 21 in. (53.3 cm) – 72" Deck NA |
| SPINDLE ASSEMBLIES | Sentry™ Spindle System, 2.5 cm (approx. 1 in.) outside diameter (O.D.) shaft; double bearings, greasable from top of deck. Spindle head designed to eliminate fiber wrap. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion. |
| SPINDLE HOUSINGS | 8-in. (20.3 cm)-diameter machined aluminum housing with 6-bolt pattern |
| BLADE DRIVE | Belt drive with single Kevlar V-belt & idler arm tensioning |
| TRIMABILITY (Outside of std. tire to left trim side) | – 41" Deck NA – 42" Deck NA – 44" Deck NA – 48" Deck NA – 52" Deck NA – 61" Deck NA – 72" Deck NA |
| STARTER & ELECTRICAL SYSTEM | |
| Battery (maintenance-free) | 12 Volt |
| Starter | Solenoid shift |
| Ignition | Breakerless |
| Interlock System | Prevents engine start when PTO clutch is engaged or steering levers are in drive position; allows operator dismount without engine shutdown only when PTO is disengaged and steering levers are returned to neutral |
| ULTIMATE OPERATOR STATION | |
| Seat | NA |
| Suspension | Coil spring suspension with dampening |
| Console-mounted Instruments | Low engine oil pressure, hour meter, phone/accessory tray with USB charging ports, parking brake indicator light, ignition switch, choke & push/pull PTO switch |
| Work Lights | Standard - LED |
| Hour Meter | Standard |
| TRANSMISSION & STEERING | |
| Type | T-DriveTM hydrostatic transmission with tandem 12cc Parker pumps-in-reservoir, in-line CoolFanTM for cooling efficiency, and design-matched Parker high-torque wheel motors |
| Filtration/Hydro Fluid | Self-contained fluid and internal filtration / CoolTemp Hydro-MaxTM fluid withstands high and low temperature extremes for extended service intervals |
| Speed | 0 - 9.5 mph (0 - 15.3 kph) forward 0 - 5.0 mph (0 - 8.0 kph) reverse |
| Turning Radius | True zero degree, turns within own length with counter-rotating, independently powered drive wheels |
| Steering | One- or two-handed operation with dual levers that automatically return to neutral from either forward or reverse position |
| Brakes | Dynamic braking through hydrostatic transmission |
| Parking Brake | Manual lever through linkage to bar in tire (compression) brake |
| Attachment Drive | |
| TIRE SIZES | |
| MidMount | |
| Drive Wheels - Standard (4-ply rated) | – 41" Deck NA – 42" Deck NA – 44" Deck NA – 48" Deck NA – 52" Deck 23 x 10.5-12, 350 Mag OTR, 4-ply rated – 61" Deck 23 x 10.5-12, 350 Mag OTR, 4-ply rated – 72" Deck NA |
| Drive Wheels - Optional (4-ply rated) | NA |
| Front Wheels - All Models | NA |
| FrontMount | |
| Drive Wheels - Standard (4-ply rated) | NA |
| Drive Wheels - Optional (4-ply rated) | NA |
| Single Tail Wheel | NA |
| Wide Stance Single Fork Tail Wheel | NA |
| Deck Tires (4-ply rated) | – 41" Deck NA – 42" Deck NA – 44" Deck NA – 48" Deck NA – 52" Deck NA – 61" Deck NA – 72" Deck NA |
| DIMENSIONS | |
| Height (Seat Back) | |
| Height (Seat Cushion) | |
| Height (ROPS) | |
| Length (Stand-On w/ DuraMax® Deck - Mowing Position) | – 41" Deck NA – 42" Deck NA – 44" Deck NA – 48" Deck NA – 52" Deck 73.0 in. (185.4 cm) – 61" Deck 75.3 in. (191.3 cm) – 72" Deck NA |
| Length (FrontMount Power Unit + DuraMax® Deck - Folded Up) | – 41" Deck NA – 42" Deck NA – 44" Deck NA – 48" Deck NA – 52" Deck – 61" Deck – 72" Deck |
| Deck Width (Side Discharge) | – 41" Deck NA – 42" Deck NA – 44" Deck NA – 48" Deck NA – 52" Deck 65.5 in. (166.5 cm) – 61" Deck 74.5 in. (189.2 cm) – 72" Deck NA |
| Deck Width (Mulch*) | – 41" Deck NA – 42" Deck NA – 44" Deck NA – 48" Deck NA – 52" Deck 53.0 in. (134.6 cm)/73.0 in. (185.4 cm) – 61" Deck 62.0 in. (157.5 r cm)/75.3 in. (191.3 cm) – 72" Deck NA |
| FrontMount PowerUnit Only (Width/Length) | NA |
| FrontMount Power Unit (Wheelbase) | NA |
| WEIGHT | |
| (Uncrated) | – 41" Deck NA – 42" Deck NA – 44" Deck NA – 48" Deck NA – 52" Deck 1080 lbs. (489.9 kg) – 61" Deck 1120 lbs. (508.0 kg) – 72" Deck NA |
| FrontMount Power Unit Only (uncrated) | NA |
| FrontMount Deck Only - Side Discharge (uncrated) | – 41" Deck NA – 42" Deck NA – 44" Deck NA – 48" Deck NA – 52" Deck NA – 72" Deck NA |
| Mulching Package | – 41" Deck NA – 42" Deck NA – 44" Deck NA – 48" Deck NA – 52" Deck 29 lbs. (13.2 kg) – 61" Deck 36 lbs (16.3 kg) – 72" Deck NA |
