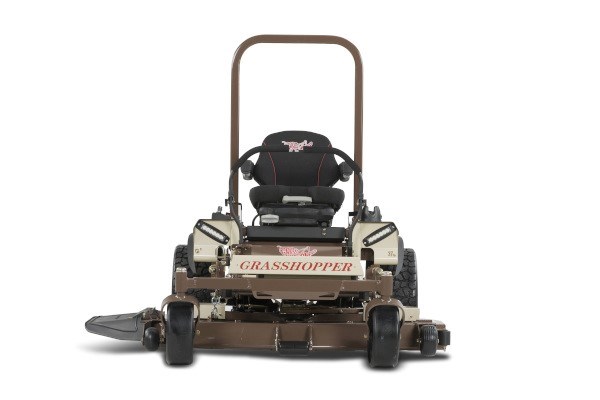

Grasshopper Model 337G5 EFI
Powerful performance and fuel economy are available with the 337G5. Equipped with a Briggs & Stratton Vanguard Electronic Fuel-Injection (EFI) vertical shaft, V-twin engine continuously adjusts fuel ratios while using less fuel. EFI technology minimizes fuel-related services issues and offers reduced emissions.
Shopping Tools
Model 337G5 EFI Features & Benefits
Heavy-duty Deck
- Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
- Specially designed cutting chambers enhance airflow for better cut quality
- Deck easily converts from side discharge to optional Down Discharge™ mulching or PowerVac™ collection
- Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
- Spindle planes are fabricated from double-layered formed steel laminate and combine with the spindles to form a triple-strength deck to keep blades level and deliver a high-quality cut.
- Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion
QuikAjust Tilt™ Levers
QuikAjust Tilt™ steering levers with "no tools" adjustment provide a 9-inch range for maximum comfort and fit while maintaining natural arm and wrist positions.
QuikAjust® Drop Pin Height Adjustment
- Raise and lower the deck easily with foot pedal and drop pin for precision cutting heights between 1.0 and 5.0 inches.
Reduced Maintenance
- Only two Access-Eze™ lubrication points cut maintenance time up to 95%
- Self-tensioning belts minimize cost and labor on routine maintenance
Rugged Construction
- Robotically-welded steel construction for long-lasting durability
- Centered-bearing design provides greater load-bearing capacity to handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
- Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance
Vigilant Operator Presence System™
- Standard, low profile Roll-over Protection System (ROPS) structure with an adjustable seatbelt
- Dampened steering levers that return to neutral from forward and reverse
- Interlock switches that shut down the engine when the operator leaves the seat while PTO is engaged or levers are in drive position
B & S Vanguard Electronic Fuel Injection (EFI Engine) Engine
- 993cc V-Twin Briggs & Stratton Vanguard Electronic Fuel Injection (EFI)
- OHV gasoline engine with vertical crankshaft and pressure lube run cooler and provide longer service life
- Delphi-based closed-loop EFI engine continually adjusts fuel ratio to use less fuel and provide reliable hot and cold starts, reduced exhaust emissions and fewer fuel-related service issues
- Automotive-style plug-in diagnostics
- Facilitates faster and more precise service
Premier Suspension Seat
Optional premier suspension seat provides the ultimate in operator comfort. Low-profile seat slides fore and aft and includes an integrated shock absorber that manually adjusts to operators between 100 – 300 lbs. Other ergonomic features include a backrest that tilts from -5 degrees to +30 degrees, a lumbar support mechanism, adjustable armrests and a retractable seat belt.
Hydro-Gear ZT-5400 Transmission
The G5 Hydro-Gear ZT-5400 transmissions are designed to provide powerful, smooth response. The heavy-duty, self-contained commercial transaxles are integrated with a cooling fan and feature 1-3/8-inch axles for longer service life. You’ll also enjoy best-in-class transmission fluid change intervals after a 100-hour break-in period, reducing costs and maintenance time.
LED Work Lights
LED work lights provide improved visibility in low light situations.
Ultimate Operator Station™
- The Grammer Premier Suspension Seat is covered with breathable CoolTemp Cordura® fabric which dissipates heat and won’t tear or crack. This seat offers the ultimate in customized operator fit. It adjusts to the individual operator’s weight and slides fore and aft. The backrest tilts and includes adjustable lumbar support. Adjustable, foldable, padded armrests complete the comfort features of this seat. QuikAjust Tilt™ dual levers with 9-inch adjustment and the adjustable seat work together to provide a custom fit for operators of all sizes.
- Operational controls including throttle, choke and angled View-Eze™ console and adjustable cup holder are well positioned for visibility and ease of reach
- One- or two-handed operation with ComfortReach™ adjustable Hydra-Smooth™ dual levers that automatically return to neutral from either forward or reverse position.
Model 337G5 EFI Specs & Compare
| ENGINE | |
| Type/Horsepower/Cylinders | Briggs & Stratton Vanguard Delphi®-based closed-loop Electronic Fuel Injection (EFI) V-Twin |
| Displacement | 60.6 cu. in. (993cc) |
| Lubrication System | Pressure Lube/Filter |
| Crankshaft | Vertical |
| Cooling System | Air |
| Fuel | Gasoline - unleaded |
| Fuel Capacity | 13 U.S. Gal. (49.2 l) |
| Optional Fuel Capacity | NA |
| Air Cleaner | Heavy-duty, cyclonic, remote-mounted engine dual cleaner with replaceable element |
| Muffler | Ultra quiet, single, industrial type. |
| DURAMAX® DECKS | |
| DECK | DuraMax |
| Mulching Package # | 504569(61), 504571(72) |
| DURAMAX® DECK SIZE | |
| - 41" Deck | NA |
| - 42" Deck | NA |
| - 44" Deck | NA |
| - 48" Deck | NA |
| - 52" Deck | NA |
| - 61" Deck | * |
| - 72" Deck | * |
| CUTTING HEIGHT RANGE | 1.0 to 5.0 in. (2.5 cm to 12.7 cm) |
| CONSTRUCTION (Robotic-welded steel) | Double-layered 10-gauge plus 7-gauge formed-steel laminated spindle plane 0.313 in (7.95 mm) thick- more than 25% thicker than 0.25 in. (6.35 mm) with 7-gauge skirts for geometric strength. Spindle plane is 0.9 in.(22.86 mm) thick in stress zones. Anvil-edge design with 0.5 in. (12.7 mm) reinforcement on front edge of deck. |
| BLADES (Tempered, alloy steel) | |
| - 41" Deck | NA |
| - 42" Deck | NA |
| - 44" Deck | NA |
| - 48" Deck | NA |
| - 52" Deck | NA |
| - 61" Deck | (3) 21 in. (53.3 cm) |
| - 72" Deck | (3) 25 min. (63.5 cm) |
| SPINDLE ASSEMBLIES | Sentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Double bearings greasable from top of deck. Spindle head designed to eliminate fiber wrap. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion. |
| SPINDLE HOUSINGS | 8 in. (20.3 cm)-diameter housing with 6-bolt pattern. Machined aluminum housing on 52- and 61-inch decks. Cast iron on 72-inch deck. |
| BLADE DRIVE | Belt drive with single Kevlar V-belt and idler arm tensioning. |
| TRIMABILITY (Outside of std. tire to left trim side) | |
| - 41" Deck | NA |
| - 42" Deck | NA |
| - 44" Deck | NA |
| - 48" Deck | NA |
| - 52" Deck | NA |
| - 61" Deck | NA |
| - 72" Deck | NA |
| STARTER & ELECTRICAL SYSTEM | |
| Battery (maintenance-free) | 12 Volt |
| Starter | Solenoid shift |
| Ignition | Breakerless |
| Interlock System | Prevents engine start when PTO clutch is engaged or steering levers are in drive position. Allows operator dismount without engine shutdown only when PTO is disengaged and steering levers are locked in neutral. |
| ULTIMATE OPERATOR STATION | |
| Seat | Deep-cushioned, deluxe Premium Comfort seat features a coil-spring suspension and padded lumbar support with sliding 2-inch fore and aft adjustment for all-day comfort. Seat and padded, foldable armrests are covered in scuff- and tear-resistant Cordura®. |
| Suspension | InFrame™ suspension with iso-mounted seat and footrest |
| Console-mounted Instruments | Low engine oil pressure, combination electronic fuel gauge/hour meter, engine code light and parking brake warning lights, ignition and push/pull PTO switches. |
| Work Lights | Optional - LED |
| Hour Meter | Combination electronic fuel gauge/hour meter |
| TRANSMISSION & STEERING | |
| Type | Heavy-duty Hydro-Gear ZT5400 hydrostatic transmissions with cooling fans, integrated transaxles with 16cc piston pumps and 21cc piston motors, gear reduction, internal disc brakes, and 1-3/8-inch axles |
| Filtration/Hydro Fluid | Self-contained fluid and internal filtration. CoolTemp HydroMax® fluid withstands high and low temperature extremes for extended service intervals after 100-hour break-in oil change. |
| Speed | 0 - 10.5 mph (0 - 16.9 kph) forward 0 - 6.0 mph (0 - 9.7 kph) reverse |
| Turning Radius | True zero degree, turns within own length with counter-rotating, independently powered drive wheels. |
| Steering | One- or two-hand operation with adjustable HydraSmooth™ dual levers that automatically return to neutral from either forward or reverse position. |
| Brakes | Dynamic braking through hydrostatic transmission. |
| Parking Brake | Internal disc brake in transmission. |
| Attachment Drive | NA |
| TIRE SIZES | |
| Mid Mount | |
| Drive Wheels - Standard (6-ply rated) | |
| - 41" Deck | NA |
| - 42" Deck | NA |
| - 44" Deck | NA |
| - 48" Deck | NA |
| - 52" Deck | NA |
| - 61" Deck | 26x12.00x12 turf, 6-ply rated |
| - 72" Deck | 26x12.00x12 turf, 6-ply rated |
| Drive Wheels - Optional (4-ply rated) | 24x12.00x12 bar tread, 4-ply rated |
| Front Wheels - All Models | 13x6.50x6; rib tread, pneumatic with greasable, double-sealed bearings to protect from grass wrap. |
| Front Mount | |
| Drive Wheels - Standard (4-ply rated) | NA |
| Drive Wheels - Optional (4-ply rated) | NA |
| Single Tail Wheel | NA |
| Wide Stance Single Fork Tail Wheel | NA |
| Deck Tires (4-ply rated) | |
| - 41" Deck | NA |
| - 42" Deck | |
| - 44" Deck | NA |
| - 48" Deck | NA |
| - 52" Deck | NA |
| - 61" Deck | NA |
| - 72" Deck | NA |
| DIMENSIONS | |
| Height (Seat Back) | 49.0 in. (124.5 cm) |
| Height (Seat Cushion) | 35.0 in (88.9 cm) |
| Height (ROPS) | 72.0 in (182.9 cm) |
| Length (mid mount w/ DuraMax® Deck - Mowing Position) | |
| - 41" Deck | NA |
| - 42" Deck | NA |
| - 44" Deck | NA |
| - 48" Deck | NA |
| - 52" Deck | NA |
| - 61" Deck | 85.0 in. (215.9 cm) |
| - 72" Deck | 89.0 in (226.9 cm) |
| Length (Front Mount Power Unit + DuraMax® Deck - Folded Up) | |
| - 41" Deck | NA |
| - 42" Deck | NA |
| - 44" Deck | NA |
| - 48" Deck | NA |
| - 52" Deck | NA |
| - 61" Deck | NA |
| - 72" Deck | NA |
| Deck Width (Side Discharge) | |
| - 41" Deck | NA |
| - 42" Deck | NA |
| - 44" Deck | NA |
| - 48" Deck | NA |
| - 52" Deck | NA |
| - 61" Deck | 74.5 in. (189.2 cm) |
| - 72" Deck | 82.5 in. (217.7 cm) |
| Deck Width (Mulch*) | |
| - 41" Deck | NA |
| - 42" Deck | NA |
| - 44" Deck | NA |
| - 48" Deck | NA |
| - 52" Deck | NA |
| - 61" Deck | 62.5 in.* (158.8 cm) |
| - 72" Deck | 73.5 in. (186.7 cm) |
| Front Mount PowerUnit Only (Width/Length) | NA |
| Front Mount Power Unit (Wheelbase) | NA |
| WEIGHT | |
| (Uncrated) | |
| - 41" Deck | NA |
| - 42" Deck | NA |
| - 44" Deck | NA |
| - 48" Deck | NA |
| - 52" Deck | NA |
| - 61" Deck | 1260 lbs (571.2 kg) |
| - 72" Deck | 1340 lbs. (607.8 kg) |
| Front Mount Power Unit Only (uncrated) | NA |
| Front Mount Deck Only - Side Discharge (uncrated) | |
| - 41" Deck | NA |
| - 42" Deck | NA |
| - 44" Deck | NA |
| - 48" Deck | NA |
| - 52" Deck | NA |
| - 61" Deck | NA |
| - 72" Deck | NA |
| Mulching Package | |
| - 41" Deck | NA |
| - 42" Deck | NA |
| - 44" Deck | NA |
| - 48" Deck | NA |
| - 52" Deck | NA |
| - 61" Deck | 36 lbs. (16.3 kg) |
| - 72" Deck | 44 lbs. (20.0 kg) |
| All specifications and information displayed on this Web site are subject to change without notice. |
