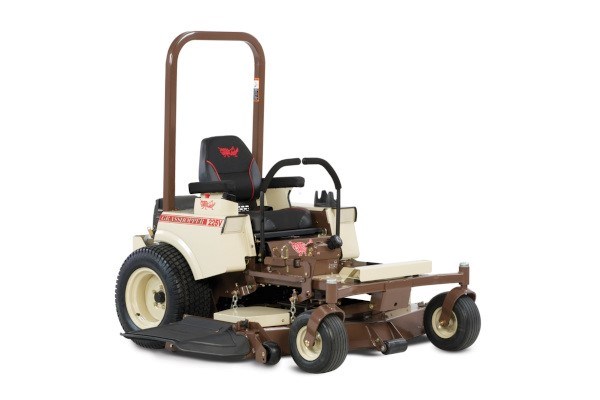

Grasshopper Model 225V-G4
A compact, Grasshopper true zero-turn riding lawn mower designed with commercial-grade features such as comfort, durability, performance, ease of maintenance and responsiveness. The zero turn Model 225V-G4 mower utilizes heavy-duty Hydro-Gear ZT-4400 commercial transaxles with integrated cooling fan that feature 1-3/8-inch axles for longer service life. Ideal for commercial landscapers and large-acreage homeowners.
Shopping Tools
Model 225V-G4 Features & Benefits
Kohler Confidant Engine
- Professional-grade 747 cc Kohler Confidant OHV V-Twin engine
- Designed to maximize airflow and reduce operating temperatures for extended service life
- Heavy-duty cyclonic air filter with Quad-Clean™ multi-stage air filtration
- Full-pressure lubrication to protect critical components
Vigilant Operator Presence System™
- Standard, low profile operator protection structure (OPS) with an adjustable seatbelt
- Dampened steering levers that return to neutral from forward and reverse
- Interlock switches that shut down the engine when the operator leaves the seat while PTO is engaged or levers are in drive position
QuikAjust Tilt™ Levers
QuikAjust Tilt™ steering levers with "no tools" adjustment provide a 9-inch range for maximum comfort and fit while maintaining natural arm and wrist positions.
Hydro-Gear ZT-4400 Transmission
The G4 Hydro-Gear ZT-4400 transmissions are designed to provide powerful, smooth response The heavy-duty, self-contained commercial transaxles are integrated with a cooling fan and feature 1-3/8-inch axles for longer service life. You’ll also enjoy best-in-class transmission fluid change intervals after a 100-hour break-in period, reducing costs and maintenance time.
Heavy-duty Deck
- Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
- Specially designed cutting chambers enhance airflow for better cut quality
- Deck easily converts from side discharge to optional Down Discharge™ mulching or PowerVac™ collection
- Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
- Spindle planes are fabricated from double-layered formed steel laminate and combine with the spindles to form a triple-strength deck to keep blades level and deliver a high-quality cut.
- Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion
QuikAjust® Drop Pin Height Adjustment
- Raise and lower the deck easily with foot pedal and drop pin for precision cutting heights between 1.0 and 5.0 inches.
Reduced Maintenance
- Only two Access-Eze™ lubrication points cut maintenance time up to 95%
- Self-tensioning belts minimize cost and labor on routine maintenance
Rugged Construction
- Robotically-welded steel construction for long-lasting durability
- Centered-bearing design provides greater load-bearing capacity to handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
- Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance
Ultimate Operator Station™
- The deep-cushioned, deluxe Premium Comfort Seat features a coil-spring suspension and padded lumbar support with sliding 2-inch fore and aft adjustment for all-day comfort. Iso-mounting eliminates vibration before it reaches the seat, and both padded seat and foldable armrests are covered in scuff-resistant, breathable CoolTemp Cordura® fabric, which dissipates heat and won’t tear or crack with extended use.
- Operational controls including throttle, ignition and push/pull PTO switches, choke, angled View-Eze™ console and adjustable cup holder are well positioned for visibility and ease of reach.
- One- or two-handed operation with ComfortReach™ adjustable Hydra-Smooth™ dual levers that automatically return to neutral from either forward or reverse position.
Model 225V-G4 Specs & Compare
| Specifications | Model 225V-G4 |
| ENGINE | |
| Type/Horsepower/Cylinders | Kohler Confidant, V-Twin |
| Displacement | 45.6 cu. in. (747 cc) |
| Lubrication System | Pressure Lube/Filter |
| Crankshaft | Vertical |
| Cooling System | Air |
| Fuel | Gasoline - unleaded |
| Fuel Capacity | 6.5 U.S. Gal. (26.6 l) |
| Optional Fuel Capacity | NA |
| Air Cleaner | Heavy-duty cyclonic air filter with QUAD-CLEAN™ multi-stage air filtration |
| Muffler | Ultra quiet, single, industrial type. |
| DURAMAX® DECKS | |
| DECK | NA |
| Mulching Package # | 504567(52), 504569(61) |
| DURAMAX®; DECK SIZE | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | * |
| – 61" Deck | * |
| – 72" Deck | NA |
| CUTTING HEIGHT RANGE | 1.0 to 5.0 in. (2.5 to 12.7 cm) |
| CONSTRUCTION (Robotic-welded steel) | Double-layered 10-gauge plus 7-gauge formed-steel laminated spindle plane 0.313 in (7.95 mm) thic - more than 25% thicker than 0.25 in. (6.35 mm) with 7-gauge skirts for geometric strength. Spindle plane is 0.9 in.(22.86 mm) thick in stress zones. Anvil |
| BLADES (Tempered, alloy steel) | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | |
| – 52" Deck | (3) 18 in. (45.7 cm) |
| – 61" Deck | (3) 21 in. (53.3 cm) |
| – 72" Deck | NA |
| SPINDLE ASSEMBLIES | Sentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Spindle head designed to eliminate fiber wrap. Double bearings, non-greasable. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion. |
| SPINDLE HOUSINGS | 8 in. (20.3 cm)-diameter machined aluminum housing with 6-bolt pattern. |
| BLADE DRIVE | Belt drive with single Kevlar V-belt and idler arm tensioning. |
| TRIMABILITY (Outside of std. tire to left trim side) | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | NA |
| – 61" Deck | NA |
| – 72" Deck | NA |
| STARTER & ELECTRICAL SYSTEM | |
| Battery (maintenance-free) | 12 Volt |
| Starter | Solenoid shift |
| Ignition | Breakerless |
| Interlock System | Prevents engine start when PTO clutch is engaged or steering levers are in drive position. Allows operator dismount without engine shutdown only when PTO is disengaged and steering levers are locked in neutral. |
| ULTIMATE OPERATOR STATION | |
| Seat | Deep-cushioned, deluxe Ultimate Suspension Ride™ (USR™) seat features a coil-spring suspension and padded lumbar support with sliding 2-inch fore and aft adjustment for all-day comfort. Seat and padded, foldable armrests are covered in scuff- and tear-resistant Cordura®. |
| Suspension | Roomy, iso-mounted footrest with Shock Impact Reduction System™ (SIRS™). |
| Console-mounted Instruments | Digital hour meter, parking brake indicator light, ignition switch, choke and push/pull PTO switch. |
| Work Lights | Optional-LED |
| Hour Meter | Standard |
| TRANSMISSION & STEERING | |
| Type | Heavy-duty Hydro-Gear ZT4400 hydrostatic transmissions with cooling fans, integrated transaxles with 12cc piston pumps and 16cc piston motors, gear reduction, internal disc brakes, and 1-3/8 inch axles. |
| Filtration/Hydro Fluid | Self-contained fluid and internal filtration. CoolTemp HydroMax� fluid withstands high and low temperature extremes for extended service intervals after 100-hour break-in oil change. |
| Speed | 0 - 9.0 mph (0 - 14.5 kph) forward 0 - 6.0 mph (0 - 9.7 kph) reverse |
| Turning Radius | True zero degree, turns within own length with counter-rotating, independently powered drive wheels. |
| Steering | One- or two-hand operation with adjustable HydraSmooth™ dual levers that automatically return to neutral from either forward or reverse position. |
| Brakes | Dynamic braking through hydrostatic transmission. |
| Parking Brake | Compression |
| Attachment Drive | NA |
| TIRE SIZES | |
| MidMount | |
| Drive Wheels - Standard (4-ply rated) | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | 23x10.50x12 turf, 4-ply rated |
| – 61" Deck | 23x10.50x12 turf, 4-ply rated |
| – 72" Deck | NA |
| Drive Wheels – Optional (4-ply rated) | NA |
| Front Wheels – All Models | 13x6.50x6; pneumatic with greasable, double-sealed bearings to protect from grass wrap. |
| DIMENSIONS | |
| Height (Seat Back) | 46.0 in. (116.9 cm) |
| Height (Seat Cushion) | 30.0 in. (76.2 cm) |
| Height (ROPS) | 68.0 in. (172.7 cm) |
| Length (MidMount w/ DuraMax Deck - Mowing Position) | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | |
| – 52" Deck | 76.0 in. (193.0 cm) |
| – 61" Deck | 79.0 in. (200.7 cm) |
| – 72" Deck | NA |
| Deck Width (Side Discharge) | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | |
| – 52" Deck | 65.5 in. (166.5 cm) |
| – 61" Deck | 74.5 in. (189.2 cm) |
| – 72" Deck | NA |
| Deck Width (Mulch*) | |
| – 41" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | 53.5 in.* (135.9 cm) |
| – 61" Deck | 62.5 in.* (158.8 cm) |
| – 72" Deck | NA |
| WEIGHT (Uncrated) | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | 980 lbs. (444.5 kg |
| – 61" Deck | 1050 lbs. (476.3 kg) |
| – 72" Deck | NA |
| Mulching Package | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | 29 lbs. (13.2 kg) |
| – 61" Deck | 36 lbs. (16.3 kg) |
| – 72" Deck | NA |
