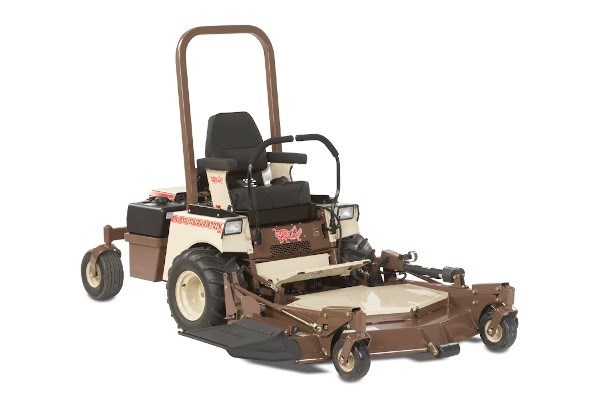

Grasshopper Model 727T EFI
Delivering powerful, high-tech performance and unparalleled fuel economy, the Grasshopper Model 727T EFI riding lawn mower with zero-turn maneuverability features an Electronic Fuel Injection (EFI) engine that maximizes fuel efficiency. The PowerFold® deck lift/electric height adjustment of the out-front deck raises the deck to a near vertical position for easy cleaning. The deck can be replaced with several grounds-maintenance implements.
Shopping Tools
Model 727T EFI Features & Benefits
Single-fork Tail Wheel
- Single-fork tail wheels enhance weight distribution, improve stability and enhance castering effect when maneuvering.
T6® Drive Hydrostatic Transmission
- Tandem 16cc Parker pumps-in-reservoir transmission with design-matched Parker high-torque wheel motors
- In-line CoolFan™ cooling system for cooling efficiency and long service intervals
- Delivers smooth response and requires less maintenance, with industry-leading 1,000-hour fluid change interval
QuikConverter™ Implement Capability
- Add or remove implements in minutes without tools with QuikConverter™ Implement System
- Equip your out-front mower with a wide range of tools, including turf cleanup, renovation and snow removal implements that extend your productivity year-round
AntiVibe Power Platform®
Isolates the engine and T-Drive™ from the operator platform for an unprecedented vibration-free experience
Minimal Maintenance
- Fewer than 10 grease points and easy top-side access to belts and filters
- 1,000-hour transmission fluid change intervals
- Self-tensioning belts minimize cost and labor on routine maintenance
Built for Long Life
- Robotically-welded, high-grade steel construction and I-beam reinforcement for long-lasting durability
- Centered-bearing design provides greater load-bearing capacity to easily handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
- Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance
Vigilant Operator Presence System™
- Standard, low profile Roll-over Protection System (ROPS) structure with an adjustable seatbelt
- Dampened steering levers that return to neutral from forward and reverse
- Interlock switches that shut down the engine when the operator leaves the seat while PTO is engaged or levers are in drive position
Kohler Command Pro Electronic Fuel Injection (EFI) Engine
- 747cc V-Twin Kohler Command Pro Delphi® based Electronic Fuel Injection (EFI)
- OHV gasoline engine with horizontal crankshaft and pressure lube run cooler and provide longer service life
- Closed-loop EFI engine continually adjusts fuel ratio to use less fuel and provide reliable hot and cold starts, reduced exhaust emissions and fewer fuel-related service issues
- Automotive-style plug-in diagnostics
- Facilitates faster and more precise service
PowerFold® Electric Deck Lift
Standard on all FrontMount™ DuraMax® decks, PowerFold® is the zero-turn mower industry's first electric deck lift (introduced in 2004).
PowerFold® rotates the deck nearly 90 degrees to provide easy access to the underside of the deck for simplified maintenance and mulching package installation, plus space-saving portability and storage.
The feature also adjusts cutting height between 1.25 and 5.0 inches and controls deck lift functions using a single switch.
Heavy-duty Deck
- Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
- Specially designed cutting chambers enhance airflow for better cut quality
- Deck easily converts from side discharge to optional Down Discharge™ mulching or PowerVac™ collection
- Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
- Spindle planes are fabricated from double-layered formed steel laminate and combine with the spindles to form a triple-strength deck to keep blades level and deliver a high-quality cut.
- Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion
LED Work Lights
LED work lights provide improved visibility in low light situations.
Ultimate Operator Station™
- The deep-cushioned, deluxe Premium Comfort Seat features a coil-spring suspension and padded lumbar support for all-day comfort. Iso-mounting eliminates vibration before it reaches the seat, and both padded seat and armrests are covered in scuff-resistant, breathable CoolTemp Cordura® fabric, which dissipates heat and won’t tear or crack with extended use.
- Operational controls including throttle, ignition and push/pull PTO switches, angled View-Eze™ console and adjustable cup holder are well positioned for visibility and ease of reach.
- One- or two handed operation with QuikAjust Tilt™ dual levers with 9-inch comfort range to custom fit operator's reach. Levers automatically return to neutral from either forward or reverse position and are less strenuous than riding mowers with steering wheels.
Model 727T EFI Specs & Compare
| Specifications | Model 727T EFI |
| ENGINE | |
| Type/Horsepower/Cylinders | Kohler Command Pro, Delphi®-based closed-loop Electronic Fuel Injection(EFI)/V-Twin |
| Displacement | 45.6 cu. in. (747 cc) |
| Lubrication System | Pressure Lube/Filter |
| Crankshaft | Horizontal |
| Cooling System | Air |
| Fuel | Gasoline - unleaded |
| Fuel Capacity | 7.2 U.S. Gal. (27.3 l) |
| Optional Fuel Capacity | NA |
| Air Cleaner | Heavy-duty, remote mounted, cyclonic, dual element air filtration. |
| Muffler | Ultra quiet, single, industrial type |
| DURAMAX® DECKS | |
| DECK | DuraMax |
| Mulching Package # | 504567(52), 504569(61), 504571(72) |
| DURAMAX®; DECK SIZE | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | * |
| – 61" Deck | * |
| – 72" Deck | * |
| CUTTING HEIGHT RANGE | 1.25 to 5.0 in. (3.2 cm to 12.7 cm) |
| CONSTRUCTION (Robotic-welded steel) | Tubular 2.25 in. x 4 in. boxed members with 0.25 in. gussets. Formed double thickness hardened steel (0.269 in. 7.6% thicker than 0.25 in. (6.35 mm)) truss spindle plane and (3) Sentry™ spindles and a triple-strength upper deck, 1/2 inch thick in |
| BLADES (Tempered, alloy steel) | |
| – 41" Deck | NA |
| – 41" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | (3) 18 in. (45.7 cm) |
| – 61" Deck | (3) 21 in. (53.3 cm) |
| – 72" Deck | (3) 25 in. (63.5 cm) |
| SPINDLE ASSEMBLIES | Sentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Double bearings greasable from top of deck. Spindle head designed to eliminate fiber wrap. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion. |
| SPINDLE HOUSINGS | 8 in. (20.3 cm)-diameter housing. Machined aluminum housing on 52- and 61-inch deck. Cast iron on 72-inch deck. |
| BLADE DRIVE | Maintenance-free gearbox with single Kevlar V-belt and idler arm tensioning. |
| TRIMABILITY (Outside of std. tire to left trim side) | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | 1.0 in. (2.5 cm)*** |
| – 61" Deck | 8.5 in. (21.6 cm)*** |
| – 72" Deck | 13.75 in. (34.9 cm)*** |
| STARTER & ELECTRICAL SYSTEM | |
| Battery (maintenance-free) | 12 Volt |
| Starter | Solenoid shift |
| Ignition | Breakerless |
| Interlock System | Prevents engine start when PTO clutch is engaged or steering levers are in drive position. Allows operator dismount without engine shutdown only when PTO is disengaged and steering levers are locked in neutral. |
| ULTIMATE OPERATOR STATION | |
| Seat | Ultimate Suspension Ride (USR) iso-mounted, high-back, deep-cushioned, foam-padded CoolTemp Cordura-covered, padded arms/backrest with lumbar support and coil-spring suspension. Optional CoolTemp Cordura-covered premier suspension seat. |
| Suspension | AntiVibe PowerPlatform™ with iso-mounted seat and footrest |
| Console-mounted Instruments | Low engine oil pressure, engine code and parking brake warning lights, digital hour meter, ignition and push/pull PTO switches. |
| Work Lights | Standard - LED |
| Hour Meter | Standard |
| TRANSMISSION & STEERING | |
| Type | T6® hydrostatic transmission with tandem 16 cc Parker pumps-in-reservoir, in-line CoolFan™ for cooling efficiency, design-matched Parker high-torque wheel motors. AntiVibe Power Platform® reduces vibration for the operator. |
| Filtration/Hydro Fluid | Integrated, replaceable, high-efficiency, fine-particle filter / Grasshopper CoolTemp Hydro-Max™ fluid withstands high and low temperature extremes for 1,000 hour change intervals. |
| Speed | 0 - 10.0 mph (0 - 16.1 kph) forward 0 - 6.0 mph (0 - 9.7 kph) reverse |
| Turning Radius | True zero degree, turns within own length with counter-rotating, independently powered drive wheels. Seat is pivot point. |
| Steering | One- or two-hand operation with adjustable, HydraSmooth™, dual levers that automatically return to neutral from either forward or reverse position. |
| Brakes | Dynamic braking through hydrostatic transmission. |
| Parking Brake | Disc parking brakes, one for each drive wheel. |
| Attachment Drive | Telescoping PTO shaft with two high-speed U-joints, Quik-D-Tatch® coupler and heavy-duty electric Mag Stop® blade clutch/brake. |
| TIRE SIZES | |
| FrontMount | |
| Drive Wheels – Standard (4-ply rated) | 22x11.00x10 bar tread, high flotation, 4-ply rated |
| Drive Wheels – Optional (4-ply rated) | 22x10.00x10, turf tread, 4-ply rated |
| Single Tail Wheel | 13x6.50x6 rib tread, pneumatic (2) |
| Wide Stance Single Fork Tail Wheel | NA |
| Deck Tires (4-ply rated) | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | 9x3.50x4 (flat proof), 4-ply rated |
| – 61" Deck | 9x3.50x4 (flat proof), 4-ply rated |
| – 72" Deck | 13x6.50x6 rib tread, pneumatic, 4-ply rated |
| DIMENSIONS | |
| Height (Seat Back) | 46.0 in. (116.8 cm) |
| Height (Seat Cushion) | 30.5 in. (77.5 cm) |
| Height (ROPS) | 69.0 in. (175.3 cm) |
| Length (FrontMount w/ DuraMax® Deck - Mowing Position) | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | 105.5 in. (268.0 cm) |
| – 61" Deck | 107.5 in. (273.0 cm) |
| – 72" Deck | 117.5 in. (298.5 cm) |
| Length (FrontMount Power Unit + DuraMax® Deck - Folded Up) | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | 88.5 in. (224.8 cm) |
| – 61" Deck | 91.0 in. (231.1 cm) |
| – 72" Deck | 104.0 in. (264.2 cm) |
| Deck Width (Side Discharge) | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | 65.5 in. (166.5 cm) |
| – 61" Deck | 74.5 in. (189.2 cm) |
| – 72" Deck | 85.5 in. (227.3 cm) |
| Deck Width (Mulch*) | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | 53.5 in.* (135.9 cm) |
| – 61" Deck | 62.5 in.* (158.8 cm) |
| – 72" Deck | 73.5 in.* (186.7 cm) |
| FrontMount PowerUnit Only (Width/Length) | 50.0 in. (127.0 cm)/66.5 in. (168.9 cm) |
| FrontMount Power Unit (Wheelbase) | 51.5 in. (130.8 cm) |
| WEIGHT - (Uncrated) | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | 1285 lbs. (582.9 kg) |
| – 61" Deck | 1335 lbs. (605.5 kg) |
| – 72" Deck | 1460 lbs. (662.2 kg) |
| FrontMount Power Unit Only (uncrated) | 915 lbs. (415 kg) |
| FrontMount Deck Only - Side Discharge (uncrated) | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | 370 lbs. (167.8 kg) |
| – 61" Deck | 420 lbs. (190.5 kg) |
| – 72" Deck | 545 lbs. (247.2 kg) |
| Mulching Package | |
| – 41" Deck | NA |
| – 42" Deck | NA |
| – 44" Deck | NA |
| – 48" Deck | NA |
| – 52" Deck | 29 lbs. (13.2 kg) |
| – 61" Deck | 36 lbs. (16.3 kg) |
| – 72" Deck | 44 lbs. (20.0 kg) |
