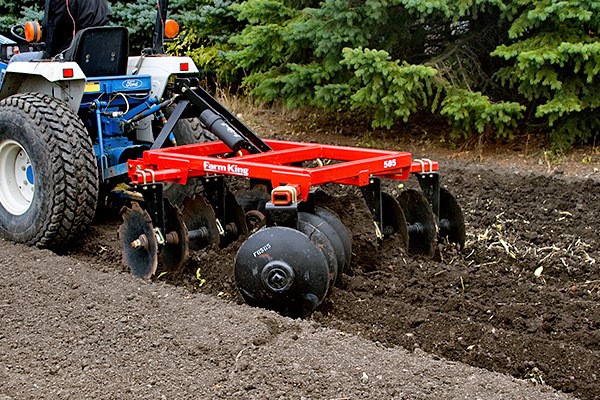

Farm King 505
Specializing in seedbed preparation, the Farm King disc penetrates the crusty, hard packed soil and rejuvenates it for easy seed application. Hardened steel discs help churn the soil to reveal a nutrient rich layer and deeper rich soil texture. Available in notched front and plain rear, or notched front and notched rear. Each Farm King disc is Quick hitch compatible.
Shopping Tools
505 Features & Benefits
Discs are manufactured with 2” x 3” tubing to give the piece a sturdy foundation. The dual gangs offer 5 adjustment points. The center pivot allows the gang to be easily maneuvered into the desired angle. After the angle is selected, simply insert the pin and hairpin clip and the disc is ready for use.
The self-aligning bearings ensure each disc assembly follows the contours of the ground. Individual discs are evenly spaced 7 ½ inches apart to allow for easy soil follow through.
OPTIONS
Various options are available on the complete line of Farm King discs. Center sweeps can be added on the back to assist in breaking up undisrupted soil in-between the middle discs. Farm King discs can come equipped with the optional scraper kit to keep discs free of clinging soil.
Disc options include notched or smooth style disc patterns. All models can come equipped with notched front and plain rear, or notched front and notched rear.
505 Specs & Compare
| Model | 505 |
| Width | 5-1/2' |
| Frame | 2" x 3" x ¼" wall tube |
| Discs | 16 |
| Disc diameter | 18" |
| Disc spacing | 7-1/2" |
| Scraper kit | Optional |
| Center sweep | Optional |
| 3-point hitch | Cat. 1 |
| Tractor engine requirements | 20 - 40 hp |
| Weight | 649 lb |
