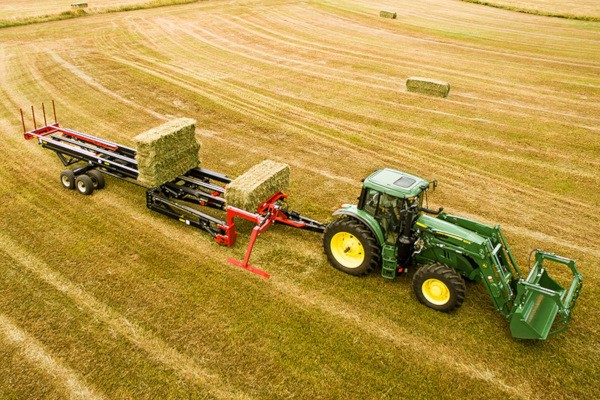

WITH YEARS OF ON-FARM TESTING AND REFINEMENTS THE FARM KING 4480XD SQUARE BALE CARRIER OFFERS SIMPLIFIED OPERATION AND AN INTUITIVE DISPLAY. The Farm King 4480XD Square Bale Carrier improves it’s capacity with 9 4'x4', 20 3'x4' and 24 3'x3' bales picked per load. With full customization and the quarter turn option you can configure it to perform to your operation’s needs. The 4480XD features a host of new innovations and technology designed to increase efficiency, maximize durability and minimize bale damage.

  • Get a Quote Value Your Trade Request Brochure
  • Send to a Friend
  • Payment Calculator

    • Get information on the 4480 XD

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Request Brochure

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the 4480 XD

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on 4480 XD

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

4480 XD Features & Benefits

STRUCTURE
The Farm King 4480XD square bale mover features a heavy-duty undercarriage and 4" x 8" beams to support heavy loads under stress. The 4480XD also has eight bolt heavy-duty wheels. The tandem walking beam axles reinforce the overall stability and structural integrity.

UNLOADING
Unloading is quick and easy thanks to the innovative design of the carrier. The rear deck tilts backward, resting the back half of the load on the ground. Move the carrier forward and return the tilt deck to the neutral position. Push the remaining bales to the back of the carrier and repeat the process.

STACKING
The bales are stacked in tight rows. The strings are not touching the ground, which prevents prolonged exposure to surface moisture. As settling occurs, the bales rest together in a structurally sound stack.

REDUCE STRESS
The beams on the carrier deck have been covered with a special graphite coating that allows the bales to slide with minimal effort.

BALE PUSHER
After bales are lifted onto the deck, a pusher powered by two hydraulic motors moves the bales rearward. If the pusher senses resistance from a heavier-than average bale during regular operation, it automatically shifts to ‘low’ for five seconds to provide more power to push the bale. If the bale will not move, a sensor sends a message to the monitor to alert the operator. The sensor on the pusher motor counts revolutions to efficiently measure the pushback distance.

CHAIN
The chain that powers the pusher is recessed beneath the beams so the weight of the bale is never resting fully on the chain, minimizing bale stress and limiting the chance of string breakage.

HYDRAULICS
The bale carrier automatically adjusts its hydraulic configuration to correspond with the hydraulic system on the tractor, as selected by the operator. The bale carrier is compatible with open-center, closed-center, or load-sensing closed-center hydraulic systems.

CARRIER ARM
The reinforced carrier arm enhances the structural integrity of the machine. Hydraulic hoses and electronic sensors have been positioned to avoid being pinched or damaged by moving parts.

4480 XD Specs & Compare

MODEL4480XD
Overall Length42' 8" (13 m)
Usable Deck Length34' (10.36 m)
Overall Width13' 10" (4.2 m)
Width (Without Loading Arm)10' 2" (3.1 m)
Transport Width10' 2" (3.1 m)
Overall Height15' 10" (4.8 m)
Tipping Frame Height (Raised)15' 10" (4.8 m)
Rotate Arm Height (Lift Arm Fully Raised)15' 7" (4.75 m)
Weight (empty)9485 LB. (4302 KG) (APPROX.)
Hitch Weight (empty)1950 LB. (884 KG) (APPROX.)
Hitch Weight (maximum)7500 lb. (3402 kg) (approx.)
TiresEight 12.5L x 15 - Load Range F
Hubs8 Bolt Heavy Duty
Hub Spindle / Tire Capacity8000 lb. (3630 kg) @ 90 psi
Hydraulic Flow (closed or open center)25 US gpm (80 lpm) @ 3000 psi
Maximum Hydraulic Pressure3500 psi (24132.5 kPa) (241 bar)
Operating Hydraulic Pressure3000 psi (20685 kPa) (207 bar)
Hydraulic Motors (Pusher)Dual 22.2 cu. in.
Lift Cylinder4" diameter x 18" stroke
Clamp Cylinder3" diameter x 16" stroke
Rotate Cylinder3" diameter x 16" stroke
Tilt Cylinders3.5" diameter x 36" stroke
Electrical12V (Internal Fuse Protection)
Maximum Load25,000 lb. (11,300 kg)
Bale Length8' (2.4 m)
48" x 48" (122 x 122 cm) Bales9 Bales (single row on carrier) / 8 Bales (single row with 1/4 turn)
32" x 35" (81 x 90 cm) Bales24 Bales (double row on carrier) / 20 Bales (double row with 1/4 turn)
36" x 48" (91 x 122 cm) Bales18 Bales (double row on carrier) / 10 Bales (single row with 1/4 turn)
