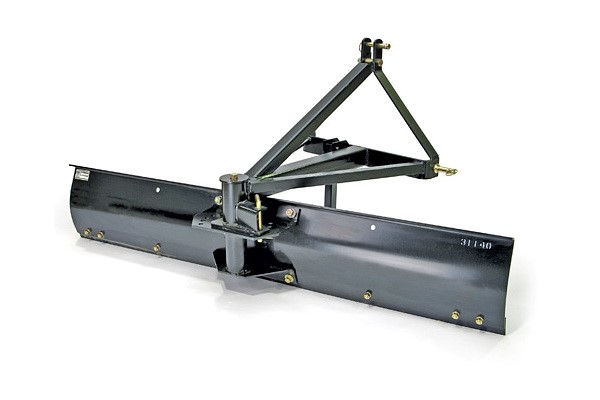

Available in 4', 5' and 6' widths. Manual adjustment. Tilt adjustment is 3-point hitch linkage adjustment.
PRECISION ENGINEERED
These rear blades have been precisely built, with particular attention to the pivot point. To minimize metal-on-metal wear and maximize blade longevity, the pivot point has been designed with tight tolerance and built to those specifications.
ADJUSTMENT
The manual tilt adjustment on the 45 Series tilts the blade up to 15°. The same bolts adjust the sideshift feature to move the blade up to 12" off-center. Tilt on the 30 and 60 Series is adjusted on the 3-Point Hitch.
CUTTING EDGE
Allied by Farm King rear blades feature a reversible and replaceable cutting edge.
STANDARD EQUIPMENT
Allied Rear Blades are quick hitch compatible and the parking stand is standard equipment.
Series | 30 |
Model | 3072 |
Maximum hp | 30 |
3-point hitch | Category I |
Moldboard thickness | 1/4" |
Moldboard width | 72" |
Moldboard height | 12-1/2" |
Adjustment | Manual 5-position |
Adjustment, angle | 30° left or right |
Adjustment, tilt | 3-point hitch linkage adj. |
Offset | N/A |
Sideshift | N/A |
King pin | N/A |
Cutting edge | 1/4" x 3" reversible |
Weight, lb | 180 |
Dual gauge wheel kit | N/A |
Skid shoes | N/A |
Racket jack | N/A |
