DJI FlyCart 30 Features & Benefits

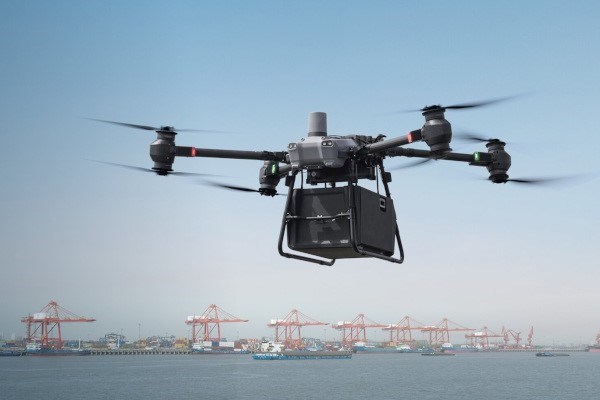

DJI FlyCart 30 is here to deliver the goods. A long-distance heavy lifter with powerful signal and intelligence, DJI FlyCart 30 supports Cargo mode and Winch mode and ascends beyond traditional logistical limits to deliver a safe, economical, and efficient air transport solution.

DJI FlyCart 30 Specs & Compare

Aircraft
Weight42.5 kg (without battery)
65 kg (with two DB2000 batteries)
Max Takeoff Weight95 kg (with cargo at sea level）
Max Diagonal Wheelbase2200 mm
Dimensions1590 x 1900 x 947 mm
(LxWxH) (arms unfolded, propellers folded)
2800x3085x947 mm
(LxWxH) (arms & propellers unfolded)
1115x760x1027 mm
(LxWxH) (arms & propellers folded)
Folding MethodTowards body
Loadable Battery Quantity2
Hovering Endurance (empty weight, with max battery capacity)29 mins (dual battery mode)
15 mins (single battery mode)

*The data was collected in controlled conditions: zero altitude and a windless environment. For reference only.
Hovering Endurance (max weight, with max battery capacity)18 mins (30 kg weight load, dual battery mode)
8 mins (40 kg weight load, single battery mode)

*The data was collected in controlled conditions: zero altitude and a windless environment. For reference only.
Max Flight Distance (empty weight, with max battery capacity)28 km (dual battery mode)
12 km (single battery mode)

*The data was collected in controlled conditions: zero altitude and windless environment, at a constant speed of 15m/s. For reference only.
Max Flight Distance (max weight, with max battery capacity16 km (30 kg weight load, dual battery mode)
8 km (40 kg weight load, single battery mode)

*The data was collected in controlled conditions: zero altitude and windless environment, at a constant speed of 15 m/s. For reference only.
Max Flight Time (max weight, with max battery capacity)18 mins (30 kg weight load, dual battery mode)
9 mins (40 kg weight load, single battery mode)

*The data was collected in controlled conditions: zero altitude and a windless environment, at a constant speed of 15 m/s. For reference only.
Operating Temperature-20° to 45° C
Ingress Protection RatingIP55
Hovering Accuracy (with strong GNSS signal)RTK positioning enabled:
±10 cm horizontal, ±10 cm vertical

RTK positioning disabled:
±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm)
RTK/GNSS Operating FrequencyRTK: GPS L1/L2, Galileo F1/F2, BeiDou B1I/B2I/B3I, Galieo E1/E5b, QZSS L1/L2
GNSS: GPS L1, BeiDou B1I, Galileo F1, Galieo E1, QZSS L1
Max Pitch Angle30°
Max Ascent Speed5 m/s

*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only.
Max Descent Speed3 m/s (vertical)
5 m/s (tilted)

*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only.
Max Horizontal Speed20 m/s

*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload, for reference only.
Max Flight Altitude6000 m (without payload)
Max Wind Speed Resistance12 m/s

*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only.
Propulsion System
Stator Size100x33 mm
Motor KV Value48 rpm/V
Max Motor Power4000 W/rotor
Propellers MaterialCarbon fiber composite
Propellers Diameter54 inch
Propellers TypeFoldable double-blade propellers
Main-rotor Diameter1375 mm
Rotor Quantity8
LED Light
Effective Illumination Distance10 m
Illumination Mode60 Hz, automatically switch on according to ambient light
DJI O3 Image Transmission
ModelPigeon (with DDR)-2T4R
Signal Effective Distance20 km (FCC)
8 km (CE/SRRC/MIC)

*Measured with FCC compliance in unobstructed environments with typical interference. Data is for reference only. The actual transmission distance may vary depending on the environment's obstruction and interference conditions. Please pay attention to reminders in the app.
O3 Operating Frequency2.4000 to 2.4835 GHz
5.725 to 5.850 GHz

*Some countries or regions do not support the 5.8 GHz frequency band. Please refer to local flight laws and regulations for details.
EIRP2.400 GHz - 2.4835 GHz:
<33 dBm（FCC）
<20 dBm（CE/SRRC/MIC）

5.725 GHz - 5.850 GHz：
<33 dBm（FCC
<30 dBm（SRRC）
<14 dBm（CE）
Data SecurityAES-256
ADS-BSupported
Forward and Backward Active Phased Array Radar
Model NumberRD241608RF (forward)
RD241608RB (backward)
Altitude DetectionFixed altitude range: 1.5-200 m
Rear Obstacle AvoidanceSensible distance (rear): 1.5-50 m
FOV Forward: 360° horizontal, ±45° vertical，±45°upward
Backward: ±45° horizontal, 360° vertical
Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m away from the aircraft
Safe distance: 3.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking)
Sensing direction: multi-direction
Binocular Vision System
FOVHorizontal: 90; Vertical: 106°
Work Environment RequirementsNormal lighting with clearly textured surfaces
FPV Camera
Resolution1920x1440
DFOV149°
Frame Rate30fps
TypeFull HD FPV Single Axis Gimbal Camera
Fill LightSupported
Cargo Case
Dimension754x472x385 mm (LxWxH)
Inner Space573x416x305 mm (LxWxH)
MaterialEPP plus aluminum alloy frame
Weighing FeatureSupported
WeightApprox. 3 kg
Load Capacity0-40 kg
Parachute
Max Payload≤ 95 kg
Dimension300x200x120 mm (LxWxH)
WeightApprox. 2.1 kg
Automatic Reaction TimeApprox. 1000 ms
Descending Speed≤ 6 m/s (at sea level, no wind)
Parachute ShapeSquare
MaterialNylon
Surface AreaApprox. 22 ㎡
Minimum Opening Height60 m
Operating Temperature-20° to 45° C
Ingress Protection RatingIP55
Mainboard Power-off Battery Life≥ 1 hour
Memory Card CapacityReal-time record for 10 flights
Buzzar AlarmSupported
Lighting AlarmSupported
Manually OpeningSupported
Automatic OpeningSupported
Winch System (Optional)
ModelA2EWI-30A
Dimension252x195x193 mm (LxWxH)
Body Weight2.5 kg (without clump and couple)
Clump Weight1.9 kg
Couple Weight0.6 kg
Touchdown Release FeatureSupported
Payload Capacity5-30 kg (dual battery)5-40 kg (single battery)
Cable Length20 m
Max Retraction Speed0.8 m/s
Operating Temperature-20° to 45° C
Ingress Protection RatingIP55
Weighing FunctionSupported
Cut Cable ProtectionSupported
Swing Control FeatureSupported
Manual OperationSupported
Automatic OperationSupported
Deceleration ProtectionSupported
DJI DB2000 Intelligent Battery
ModelDB2000
Capacity38000 mAH
Nominal Voltage52.22 V
Type14S1P
Energy1984.4 Wh
WeightApprox. 11.3 kg
Installation MethodPlug
Dimension316x152x279 mm (LxWxH)
Operating Temperature-20° to 45° C
Charging Rate5 to 15° C: 1.0C15 to 45° C: 2.5C
Max Charging Power5700 W
Automatic Heating FeatureSupported (when the battery temperature is below 10° C, pressing and holding the button or turning on the drone will activate the self-heating function. When the battery temperature is below 20° C, connecting the charger to the battery will activate the self-heating function. Charging and discharging in a low-temperature environment may reduce the battery's lifespan)
DJI C8000 Intelligent Charger
ModelCHX101-7000
Input90-264 V AC
Output42-59.92 V DC
Max Output Power7200 W (Dual input)3600 W (Single input)
Output Channel Quantity2
Protection FeatureThe feature is designed to respond to issues including overheating, overvoltage, undervoltage, short circuits, fan stalls, etc.
Operating Temperature-20° to 45° C
Charging SecurityConnector protection feature available
Remote Controller
TypeDJI RC Plus
APPDJI Pilot 2
Operating Frequency2.400-2.483 GHz
5.725-5.850 GHz
EIRP2.400-2.4835 GHz:
<33 dBm（FCC）
<20 dBm（CE/SRRC/MIC）

5.725-5.850 GHz:
<33 dBm（FCC）
<23 dBm（SRRC）
<14 dBm（CE)
Operating Temperature-20° to 50° C
Charging Environment Temperature5° to 40° C
Built-in Battery Life3.3 hours
External Battery2.7 hours
Charging MethodUse a USB-C fast charging charger with a maximum power of no less than 65 W (maximum voltage of 20 V). A DJI portable charger is recommended.
Charging Time2 hours with built-in battery, 2.5 hours with built-in and external battery (shutdown status according to official charging method)
Ingress Protection RatingIP54
Video Output InterfaceHDMI
Wi-Fi ProtocolWi-Fi 6
Wi-Fi Working Frequency2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Bluetooth ProtocolBluetooth 5.1
Bluetooth Working Frequency2.4000 - 2.4835 GHz
EIRP<10 dBm
GNSSGPS+Galileo+BeiDou
Screen7.02 inch touch LCD display screen, resolution 1920*1200, brightness 1200 nits
Dual Operator ModeSupported
Others
Guaranteed software updates until2026/12/31
