DJI Agriculture DJI AGRAS T25P
Shopping Tools
DJI AGRAS T25P Features & Benefits

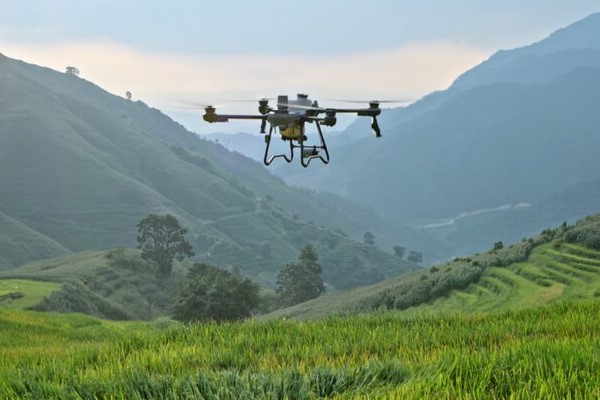

The DJI Agras T25P drone retains its compact, foldable design, featuring 20 kg spraying[1], an upgraded 25 kg[1] high-precision screw feeder spreading system 4.0, and Safety System 3.0[2]. It excels in aerial mapping and plant protection, offering flexible operations and convenient mobility, making it ideal for solo operations.
Compact and Efficient
20 kg spraying[1]
25 kg spreading[1]
Fully Automatic Operation
One-Click Takeoff
Intelligent Obstacle Bypassing[2]
Automatic Aerial Mapping
Flexible Operations
Foldable and Easy to Transport
Optional Four-Sprinkler Design For Reverse Directional Spray During Flight
Spreading System 4.0
Various Granular Compatibility[3]
Wide Spreading Width, High Precision
Signal Stability
Quad-Antenna O4 Video Transmission
Safety System 3.0[2]
Millimeter-Wave Radars
Tri-Vision System
Night Vision Color FPV Camera
DJI AGRAS T25P Specs & Compare
| Aircraft | |
| Weight | 26 kg (spraying without battery) 33 kg (spraying with battery) |
| Max Takeoff Weight[1] | Max takeoff weight for spraying: 53 kg Max takeoff weight for spreading: 60 kg |
| Max Diagonal Wheelbase | 1970 mm |
| Dimensions | Spraying: 2650×2700×820 mm (arms and propellers unfolded) 1520×1580×820 mm (arms unfolded and propellers folded) 1120×700×850 mm (arms and propellers folded) Spreading: 2650×2700×850 mm (arms and propellers unfolded) 1520×1580×850 mm(arms unfolded and propellers folded) 1120×700×850 mm(arms and propellers folded) |
| Hovering Accuracy Range (with strong GNSS signal) | RTK enabled: Horizontal: ±10 cm, Vertical: ±10 cm RTK disabled: Horizontal: ±60 cm, Vertical: ±30 cm |
| Max Configurable Flight Radius | 2000 m |
| Operating Temperature | 0° to 40° C |
| Max Wind Resistance | Level 3 wind (<6 m/s) |
| Propulsion System - Motors | |
| Stator Size | 100×28 mm |
| KV | 59 RPM/V |
| Propulsion System - Propellers | |
| Material | Nylon carbon fiber |
| Dimensions | 50 in |
| Quantity | 4 |
| Spraying System - Spray Tank | |
| Material | Plastic (HDPE) |
| Volume | 20 L |
| Operating Payload | 20 kg |
| Spraying System - Sprinklers | |
| Model | LX07550SX |
| Quantity | Standard Configuration 2 |
| Nozzle Distance | 1420 mm (Rear Nozzles) |
| Droplet Size | 50-500 μm |
| Effective Spray Width[2] | 4-7 m (at a height of 3 m above the crops) |
| Spraying system - Delivery Pumps | |
| Type | Impeller Pump (Magnetic Drive) |
| Quantity | 2 |
| Max Flow Rate | 16 L/min (2 nozzles) 24 L/min (4 nozzles) |
| Spreading System 4.0 | |
| Compatible Material Diameter | 0.5-5 mm dry granules |
| Spreading Tank Volume | 30 L |
| Spreader structure type | Centrifugal Disc |
| Discharge Structure Type | Feeder Feeding |
| Max Discharge Rate | 190 kg/min (compound fertilizer) |
| Max load inside the spreading operation box | 25 kg |
| Effective spreading width[3] | 3-8 m |
| Safety System 3.0 | |
| Millimeter-Wave Radar EIRP | <20 dBm (NCC/MIC/KC/CE/FCC) |
| Operating Temperature | 0° to 40° C; |
| Operating Environment | Adequate light and discernible surroundings |
| Operating Frequency | 24.05-24.25 GHz (NCC/FCC/MIC/KC/CE) |
| Field of View (FOV) | Front phased array digital radar: Horizontal 360°, Vertical ±45°, Upper ±45° (cone) Rear phased array digital radar: Vertical 360°, Horizontal ±45° Tri-camera vision system: Horizontal 90°, Vertical 180° |
| Range[4] | ≤ 60 m |
| Effective safe obstacle avoidance speed[5] | ≤ 10 m/s |
| Effective Obstacle Avoidance Height | ≥ 1.5 m |
| Remote Controller | |
| Model | TKPL 2 |
| Screen | 7-inch LCD touchscreen; resolution: 1920×1200; brightness: 1400 cd/m² |
| Storage Temperature Range | Less than one month: -30° to 45° C (-22° to 113° F) One to three months: -30° to 35° C (-22° to 95° F) Three months to one year: -30° to 30° C (-22° to 86° F) |
| Charging Temperature | 5° to 40° C (41° to 104° F) |
| Internal Battery Runtime | 3.8 hours |
| External Battery Runtime | 3.2 hours |
| Charging Type | It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger. |
| Charging Time | 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger) |
| DB800 Intelligent Flight Battery | |
| Weight | Approx. 6.6 kg |
| Capacity | 15500 mAh |
| Nominal Voltage | 52.22 V |
| D6000i Multifunctional Inverter Generator | |
| Battery charging time[6] | To fully charge one battery (DB800 battery) takes 9-12 mins |
| Fuel tank capacity | 20 L |
| Starting Method | Starting the Generator via the One-Button Start Switch |
| Max Power of Engine | 6 kW |
| Fuel type | Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10% (*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%) |
| Reference fuel consumption | 600 ml/kWh |
| Engine Oil Capacity | 0.8 L |
| Engine Oil Model | SJ10W-40 |
| C8000 Intelligent Power Supply | |
| Dimensions | 300×280×230 mm |
| Weight | 11.5 kg |
| Input | 100-240 Vac |
| Output | Output Voltage: 59.92VOutput Current: 100A max |
| Charging Time[6] | Fully charges a battery in 9 to 12 minutes (DB800 Intelligent Flight Battery) |
| Protection Functions | Over-voltage, over-charge, under-voltage and over-temperature protection. |
| Charging Safety | AC wire protection, power wire protection, and charge connector protection |
| Annotation | |
| [1] When the sea level height is measured, the DJI Agriculture App will intelligently recommend the load weight based on the current aircraft status, environmental conditions, and operational tasks. The maximum weight of the materials loaded by the user should not exceed the recommended value, as this may affect flight safety. [2] The effective spray width of the spraying system depends on the actual working scene. [3] The effective spreading width is measured at a flight altitude of 3 m, and the actual operation is related to the disc rotation speed, material type, material mu usage, and site environment. [4] The observation distance of the safety system 3.0 varies due to different environmental light, rain, Fog, and the material, Location, and shape of the subject object. [5] Except for linear obstacle scenes, damage to the aircraft due to obstacle avoidance failure within 10 m/s can be analyzed through log responsibility analysis, and non-human causes can be repaired for free; if there are wires, guy wires on Power Poles, and other linear obstacles, please mark them as obstacles, otherwise, failure to bypass obstacles will be the customer's responsibility. Note:1. The downward perception is used to assist terrain-following altitude flight. If a collision with an obstacle occurs below, it is considered the customer's responsibility.2. Due to the performance limitations of the safety system, the aircraft cannot actively avoid moving objects. Accidents in such scenes are considered the customer's responsibility. [6] Sea level height, environmental temperature between 15-40 degrees Celsius, time to charge the battery from 30% to 95%; fast charging is supported when the battery cell temperature is within the range of 15-75 degrees Celsius; charging time varies depending on input power, ASL, initial charge level, and other factors. | |
