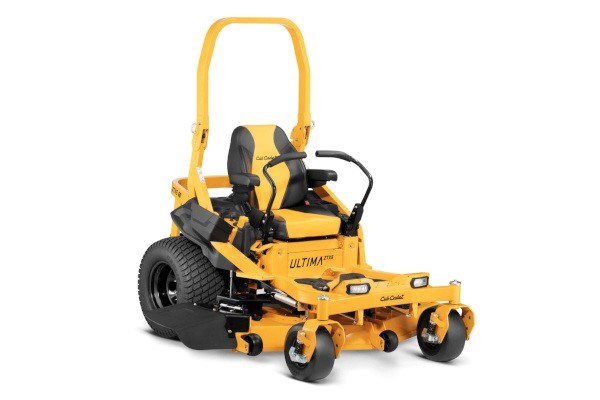

Cub Cadet ZTX5 60
The Cub Cadet® Ultima Series ZTX5 60 60-in. 24 HP* Zero-Turn Lawn Mower with AeroForce™ Max Reinforced Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish.
- Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
- Equipped with a powerful 24 HP* Kawasaki® FS Series V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
- Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.
- Independent suspension caster wheels that deliver a smooth ride with less vibration.
- High comfort, high performance an automotive-inspired, ergonomic, fully adjustable premium 24 in. high back adjustable seat with cushioned armrests, ball-bearing seat slide and patented suspension system, adjustable lap bars and industry-exclusive ergonomic hand grips optimized for comfort providing you the confidence to maximize your speed and reduce operator fatigue
- Zero-Turn Mower
Shopping Tools
ZTX5 60 Features & Benefits
Front Suspension
Independent suspension caster wheels deliver a smooth ride with less vibration on challenging mowing terrains.
Quick-Adjust Lap Bars
No tools needed to quickly adjust your zero-turn’s lap bars for your comfort or for different operators.
Enhanced Traction
Large Turf Master rear tires provide enhanced traction on uneven terrain with minimal grass damage
Rugged Frame
A rugged 1.5 x 3-inch tubular steel frame provides the strength needed for long-lasting use.
AeroForce Max™
A 10-gauge steel fabricated AeroForce Max™ deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Dual LED Headlights
LED headlights come standard on every Ultima Series ZTX™, allowing you to see clearer in low-visibility conditions.
Reduced Vibration
Mow in comfort with overmolded soft-touch hand grips and a rubber floor mat designed to reduce vibration and user fatigue.
Easy Maintenance
Easily access the cutting deck pulleys and belts during maintenance and service intervals.
Hydro-Gear™ ZT 3200 Transmissions
Dual hydrostatic transmissions allows you to reach speeds of up to 8.5 mph (3.5 mph in reverse) while providing effortless control and a smooth, zero-turn radius for the perfect pass.
High-Back Seat
A 24” premium high-back seat, cushioned armrests and a suspension system with polymer set isolators deliver a smoother ride than traditional seat springs.
Advanced Grass Collection
The AeroForce Max™ deck top discharge allows for superior flow of grass through the large 9" diameter boot, directly up into the larger capacity bags.
ZTX5 60 Specs & Compare
Engine
- Engine Brand - Kawasaki®
- Engine Model - FS Series
- Engine Model Number - 730V
- Engine Displacement - 726cc
- Engine Output - 24HP
- Starter Type - Electric
- Fuel Tank Capacity - 5.5 gal. US (20.82 L)
- Cylinders - Twin
- Engine Start - Ignition Key
- Engine Oil Capacity - 2.1 qt US ( 2 L)
- Lubrication - Fully pressurized
- Charging System - 12 amp regulated
- Fuel Gauge - Yes
- Governor - Mechanical
- Choke - Separate Choke
- Air Filter - Single element
- Oil Filter - Yes
- Fuel Delivery - Carburetor
Battery
- Battery - 210 CCA
- Battery Type - AGM (Absorbent Glass Mat)
- Battery Voltage - 12V
Drive System
- Transmission - Hydro-Gear ZT 3200
- Forward Speed - 8.5 MPH / 13.7 km/h
- Reverse Speed - 3.5 MPH / 5.6 km/h
- Drive System - Hydrostatic
Cutting Deck
- Deck Cutting Width - 60 in
- Deck Wash - No
- Deck Material - 10-gauge steel with 2-gauge reinforcement
- Deck Engagement (PTO) - Electric
- Deck Construction - Fabricated
- Blade(s) - Three
- Deck Lift - Foot pedal with Dial Adjust
- Cutting Height Range - 1" - 4.75"
- Anti-Scalping - Three gauge wheels
- Deck Positions - 17
Chassis
- Frame - 1.5" x 3" tubular steel
- Turning Radius - 0°
- ROPS - Yes
- Rear Tow Hitch - Yes
- Corrosion Protection - Yes
Controls
- Cruise Control - No
- Brakes - Disc
- Steering Control - Lap Bars
Comfort
- Seat Type - 24" high back
- Armrests - Yes
- Seat Adjustment - Lever
- Front Caster Suspension - Yes
Wheels
- Rear Tires - 23"x 12"-12"
- Front Tires - 13"x 6.5"-6"
- Tire Tread - Turf Master / Multi Trac
Specifications
- Series
Ultima Series™ ZTX
Additional Specifications
- Hour Meter - Yes
- Mulch Kit - Available separately
- Headlight(s) - Dual-LED
- Cup Holder - Yes
- Operator Presence System - Yes
- Parking Brake - Lap Bar Integrated
- Model Number - 47AKAAA8A10
Disclaimers
- Specifications
Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website. - Horsepower
As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
