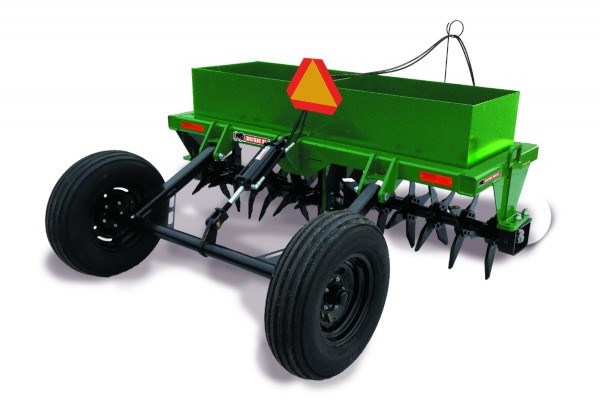

PA8 Features & Benefits

Product Features

  • Angled rotor adjustment from 2.5° to 7.5° allows the user to achieve even more soil fracturing as the gangs are offset
  • Heavy duty bearing hangers support the twisted shank rotors
  • Built-in weight box to ensure maximum soil penetration (weights not included)
  • Powder Coat Paint

PA8 Specs & Compare

ModelPA8
TRACTOR HORSEPOWER REQUIREMENTS40 to 90 HP
WORKING WIDTH86 in.
OVERALL WIDTH97-3/8 in.
OVERALL LENGTH136 in. in transportation position
OVERALL HEIGHT (with tines on the ground)44-1/4 in.
WEIGHT (LBS) [approximate]1950
MAX. BALLAST IN WEIGHT BOX2200 lbs. (PA8)
[weight box comes standard with the unit](weight not included)-lbs.
NUMBER OF TINES24 LH & 24 RH
TINE MATERIALForged & heat treated through steel
TINE HUB SPACING7-1/2 in.
TINE PENETRATIONUp to 8-1/8 in. depending on ground condition
FRAME CONSTRUCTION4 in. square tubing; all welded construction
SIDE MAINFRAME CONSTRUCTION4” X 3” X 1/4” Tubing
MAIN TONGUE BEAM4 in. square
ROTOR/TINE SUPPORT HANGERS1 in. x 7 in. heavy duty hangers
ROTOR BEARINGSHeavy duty greaseable bearings
ROTOR BEARING PROTECTION3/8 in. x 3-1/2 in. metal housing
ROTOR ANGLE ADJUSTMENT2.5°, 5°, 7.5°
TIRES & WHEELS9-1/2L x 15 tires on 15 in. - 5 bolt wheels
TINE DEPTH CONTROLAdd cylinder donuts to cylinder rod (included)
HYDRAULIC CYLINDER3-1/2 in. x 8 in.
TRANSPORTATION LOCKManual cylinder lock
REAR AXLE PIVOTgreaseable
