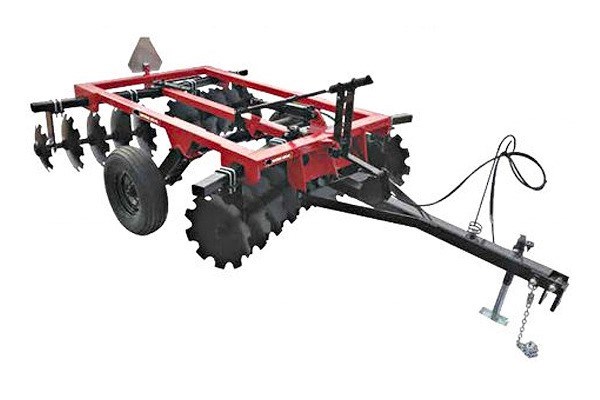

DHP8 Features & Benefits

Performance Features

  • Square and rectangle tube steel frames and gang tubes
  • Adjustable gang angles, front and rear
  • Variable Blade Spacings Available: 9” front and rear gangs for tough-to-cut “New Ground” • 7 1/2” front and rear gangs for finer soil finishing • 9” front gangs/7 1/2” rear gangs–the best of both worlds
  • 1 1/8” square, high carbon steel gang axles
  • Available in tractor colors
  • Optional disc scrapers, Center Sweep Kit, Dual Wheel Transport Kit



Product Features

  • Bearing hangers reinforces with gussets
  • Notched discs for maximum cutting action

DHP8 Specs & Compare

Model Number DHP8
Drawbar horsepower requirement 40-65 hp
Hitch type Pull-type w/clevis & hole for 1 1/4” pin
Approximate transport width 8’-10”
Max. cultivation width 8’-6”
Mainframe width 60”
Approx weight load on each blade (lbs.) 95-114
Disc blade sizes and types 20” or 22” Notched
Disc blade spacing 7.5” or 9” or a combination of both
Disc bearing type Triple lip sealed ball bearings
Number of bearings 8
Forward gang angle adjustment 15, 16.5, 18, 19.5, 21 Degrees
Rear gang angle adjustment 12, 13.5, 15, 16.5, 18 Degrees
Hitch frame construction 4” x 4” x 1/4” tubing
Side mainframe construction 4” x 3” x 1/4” tubing
Mainframe Width 60"
Mainframe middle tube construction 4” x 3” x 1/4” tubing
Gang arm construction 4” x 3” x 1/4” tubing
Gang axle 1 1/8” Square, High Carbon Steel
Front to rear leveling system Manual crank adjustment
Depth control Cylinder stroke control spacers
Hydraulic cylinder 3- 1/2” x 8” ASAE hydraulic cylinder
Transport tires and wheels Two 9.5L x 15 tires on 15” x 6” - 5 bolt wheels
Parking jack Standard
AVAILBLE OPTIONS
Disc Scrapers, Center Sweep Kit, Dual Wheel Transport Kit
