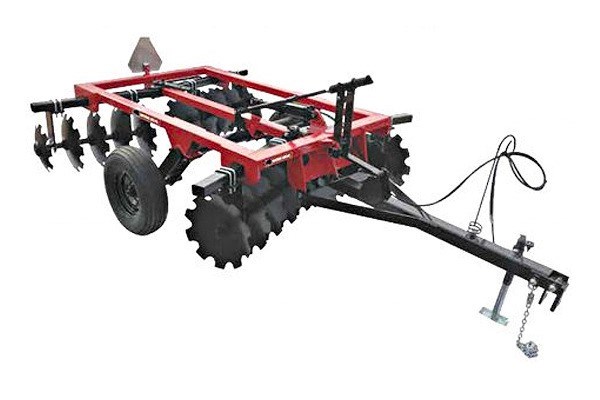

DHP10 Features & Benefits

Performance Features

  • Square and rectangle tube steel frames and gang tubes
  • Adjustable gang angles, front and rear
  • Variable Blade Spacings Available: 9” front and rear gangs for tough-to-cut “New Ground” • 7 1/2” front and rear gangs for finer soil finishing • 9” front gangs/7 1/2” rear gangs–the best of both worlds
  • 1 1/8” square, high carbon steel gang axles
  • Available in tractor colors
  • Optional disc scrapers, Center Sweep Kit, Dual Wheel Transport Kit



Product Features

  • Bearing hangers reinforces with gussets
  • Notched discs for maximum cutting action

DHP10 Specs & Compare

Model NumberDHP10
Drawbar horsepower requirement40-100 hp
Hitch typePull-type w/clevis & hole for 1 1/4” pin
Approximate transport width10’-10”
Max. cultivation width10’-6”
Mainframe width93 1/2”
Approx weight load on each blade (lbs.)84-94
Disc blade sizes and types20” or 22” Notched
Disc blade spacing7.5” or 9” or a combination of both
Disc bearing typeTriple lip sealed ball bearings
Number of bearings12
Forward gang angle adjustment15, 16.5, 18, 19.5, 21 Degrees
Rear gang angle adjustment12, 13.5, 15, 16.5, 18 Degrees
Hitch frame construction4” x 4” x 1/4” tubing
Side mainframe construction4” x 3” x 1/4” tubing
Mainframe middle tube construction4” x 3” x 1/4” tubing
Gang arm construction4” x 3” x 1/4” tubing
Gang axle1 1/8” Square, High Carbon Steel
Front to rear leveling systemManual crank adjustment
Depth controlCylinder stroke control spacers
Hydraulic cylinder3- 1/2” x 8” ASAE hydraulic cylinder
Transport tires and wheelsTwo 9.5L x 15 tires on 15” x 6” - 5 bolt wheels
Parking jackStandard
AVAILBLE OPTIONS
Disc Scrapers, Center Sweep Kit, Dual Wheel Transport Kit
