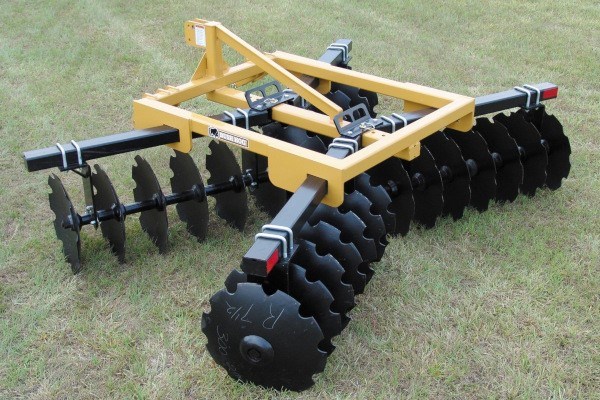

Bush Hog’s line of lift disc harrows is designed to expand your tractor’s productivity potential! Whether you are a gardener, small farmer, wildlife manager, landscaper, operate a nursery or simply someone looking to break up the ground, the heavy duty frames and the heat-treated notched disc blades of Bush Hog® lift disc harrows make them the right choice for the job. The three disc harrow series in the Bush Hog® line are designed to fit tractors from 35 to 95 horsepower, giving you several choices to properly fit your tractor and application. Easy-to-adjust front and rear gangs allow you to change from light tilling to more aggressive cutting action with a simple pull of a pin and repositioning of the gangs. The sky, well actually the dirt, is the limit when using a Bush Hog® lift disc harrow to solve your groundbreaking needs.
  • Get a Quote Value Your Trade Request Brochure
  • Send to a Friend
  • Payment Calculator

    • Get information on the 3D96

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Request Brochure

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the 3D96

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on 3D96

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

3D96 Features & Benefits

Performance Features

  • Adjustable gang angles, front and rear, using an easy-to-grasp handle
  • Cat 1 standard and quick hitch on the 1D and 2D series, along with Cat 1 and 2 standard and quick hitch on the 3D series
  • Variable Blade Spacings Available: 9 in. front and rear gangs for tough-to-cut “New Ground” • 7 1/2 in. front and rear gangs for finer soil finishing • 9 in. front gangs/7 1/2 in. rear gangs–the best of both worlds



Construction Features

  • Square and rectangle tube steel frames and gang tubes
  • Self-aligning, sealed ball bearings
  • 1 in. square, high carbon steel gang axle on the 1D and 2D series, with a 1 1/8 in. square, high carbon steel gang axle used on the 3D series
  • Available in tractor colors
  • Optional disc scrapers



Product Features

  • Notched discs for maximum cutting action

3D96 Specs & Compare

DESCRIPTION 3D96
DRAWBAR HP REQUIREMENT 95 HP
HITCH TYPE Cat. 1 Std and QH
MAX. CULTIVATION WIDTH 96 in.
APPROX. WT. LOAD ON EACH BLADE 53-59 lbs.
DISC BLADE SIZES NOTCHED 20 in. or 22 in.
DISC BLADE SPACING 9 in. Front, 7 1/2 in. Rear or 9 in. Front/Rear or 7 1/2 in. Front/Rear
DISC BEARING TYPE Self-aligning, sealed ball bearings
NO. OF BEARINGS 2 per gang
FORWARD GANG ANGLE ADJUSTMENT Front Gangs – 0°, 7°, 14°, 21°
REAR GANG ANGLE ADJUSTMENT Rear Gangs – 7°, 14°, 21°
MAINFRAME FRONT TUBE CONSTRUCTION 2 in. square tubing
GANG ARM CONSTRUCTION 3 in. x 1 1/2 in. tubing
GANG AXLES 1 1/8 in. square, high carbon steel
DISC SCRAPPERS Optional
