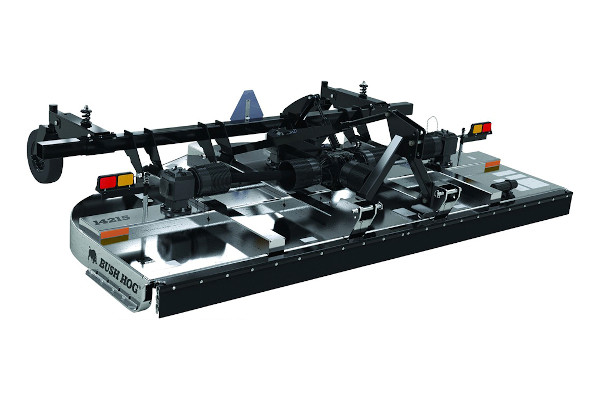

Bush Hog 14215
The Bush Hog 14215 is a row crop and pasture maintenance beast! This 15’ Multi-Spindle makes short work of cutting unwanted crop residue and pasture overgrowth. This cutter differs from conventional Multi-Spindle Cutters in that it incorporates overlapped but non-timed cutting circles. This design allows for each gearbox to have Slip-Clutch protection in lieu of rigid cross-shafts found on other Multi-Spindle cutters. Axle arms can be positioned precisely to specific row spacings. The galvanized deck provides extra rust protection in environments such as crop fields and pastures where fertilizer and herbicides are often used. Available as a Lift-Type, 1000RPM unit with Round Blade Pan and 21” Laminated Tires only. Due to its weight and overall size, this cutter requires at least a 125HP tractor to operate effectively.
Shopping Tools
14215 Features & Benefits
PERFORMANCE FEATURES
- 15-Foot Wide Galvanized Deck
- Offset Cutting Circles Eliminates Blade Timing
- Multi-Plate Slip-Clutches Protect Center and Outboard Gearboxes
- Multi-Position Axle Arms Accommodate Varied Row Crop Spacings
CONSTRUCTION FEATURES
- Heavy-Duty Cat II & III Standard & Quick Hitch
- 1000RPM 1-3/8″-21 Input Gearbox Only
- 10″ Tall Sidebands
- 7ga High-Strength Steel Deck
- 7ga Structural Tube Strongbacks
- 7ga Round Blade Pan/Stump Jumper
- Heavy-Duty Axle Arms with Spring Cushions
- 21″ Laminated Tires
SAFETY FEATURES
- Front Rubber Belting
- Rear Metal Band
- Driveline Shields
- Input Gearbox PTO Shield
14215 Specs & Compare
| MODELS | 14215 |
| CUTTING WIDTH | 180″ |
| CUTTING HEIGHT | 2″ - 16″ |
| CUTTING CAPACITY | 3 1/2″ |
| HITCH TYPE | CAT 2 & 3 STD & QH |
| DECK THICKNESS | 7GA |
| SIDEBAND THICKNESS | 1/4″ |
| SIDEBAND HEIGHT | 10″ |
| DRIVELINE SIZE | CAT 5 |
| DRIVELINE PROTECTION | 4-PLATE SLIP-CLUTCH |
| TRANSFER GEARBOX (HP) | 210 |
| CUTTING GEARBOX (HP) | 205 |
| TRACTOR PTO SPEED | 1000 |
| MINIMUM TRACTOR PTO HP | 125 |
| BLADE HOLDER | ROUND PAN |
| BLADES | 1/2″ X 4″ UPLIFT |
| BLADE TIP SPEED (FPM) | 17,280/15,708 |
| TIRES | 21″ LAMINATED |
| DEFLECTOR TYPE | BELT/BELT |
| APPROXIMATE WEIGHT (LB) | 3,700 |
