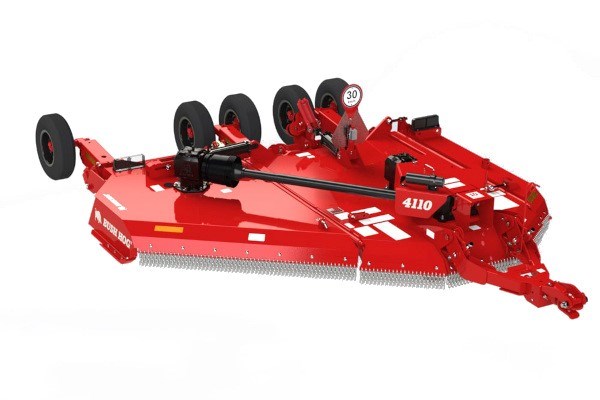

Bush Hog 4110
Building upon the success of our legendary Heavy-Duty Flex-Wing lineup, the New 4110 Flex-Wing is built for the harshest roadside cutting conditions. Designed to cut heavy grasses and brush up to 4” in diameter, these New 10’ Flex-Wings are serious machines for serious users. Perfectly at home maintaining rights-of-way, levees, and roadsides, these cutters get the job done in any environment, day in and day out. New performance and convenience features like seriously upgraded axles, EZ-change blade bolts, and EZ-adjust leveling rods make your life easier and worry-free. Our new and improved axles glide over obstacles, while reducing shock loads for an improvement you can see and feel in the tractor seat. Heavily-braced, 7ga smooth-top decks shed debris and water for easier cleanup. Gearbox stand plates are thicker and gusseted for improved strength and durability. Our Perma-Level+ Hitch has received additional reinforcements and quality of life features like rollover and clevis stops for easier tractor hookups. Standard equipment includes convenience features like EZ-lube drivelines, increased tongue transport height, and hydraulic hose handles to reduce slipping and improve ergonomics; then when not in use, the hoses can be safely stored in the holder on the tongue.
The New 4110 10’ Flex-Wing comes standard with Deck Rings and Double Row Chains for additional safety on roadsides. It also comes with your selection of 540 or 1,000 PTO Driveline, Center Dual or Walking Tandem Axles, Wing Single, Dual, or Walking Tandem Axles, Laminated, Air-Filled, or Foam-Filled Tires. And as with all Bush Hog® Rotary Cutters, the New 4110 Flex-Wing comes with the industry’s only 10-Year Gearbox Limited Warranty. Remember, “If it doesn’t say Bush Hog®, it just won’t cut it.”
Shopping Tools
4110 Features & Benefits
PERFORMANCE FEATURES
- New and improved axle suspension reduces g-force shock loads by 51%
- Replaceable 1/2″ Cast Wing Skids for extended wear during heavy ground contact
- Angled rear deck section with 41% longer skids improve durability during side and backward impacts
- New durable Cast Leveling Rod Cams make adjusting deck pitch easier
- New Cast Walking Tandem Axles walk over the most rugged terrain instead of bounce through it
- Center section axle spindles are centered on the axle arm for equalized loading of vertical forces
- Grease fittings and spring steel bushings at axle pivot points for longer life.
- Wing decks free float 22° down and 45° up without engaging the hydraulic cylinder for longer cylinder life
- Wing axles are adjustable 20″ left to right for variable row crop spacings
- New Rollover and Clevis Stops on the Perma-Level+ Hitch make tractor hookups easier
- Increased Cutting and Transport Height by 2″ to mow down taller vegetation and easier loading on trailers
CONSTRUCTION FEATURES
- Industry first — 3″ O.D. output shaft in cutting gearboxes
- Smooth-top 7ga deck plates are heavily-reinforced for years of trouble-free service
- 33% stronger gearbox mount and stand are built to withstand years of punishing mowing conditions
- Blade pans come standard with Hardened Hex-Head Blade Bolts and Bushings for easy blade changes
- 194% increase in axle arm section for substantially improved strength
- ASAE Cat. 6 Input Drivelines and ASAE Cat.4 Wing Drivelines for use in heavy cutting conditions
- Patented oil sight windows make for quick and easy oil level checks
- Grease fittings in our E-Z lube drivelines align for reduced service times
SAFETY FEATURES
- Double Row Chains to knock down flying debris
- New Cast Transport Lock supports the cutter while transporting
- Wing locks hold the wings stable when in an upright position
- Rollover and Clevis Stops reduce rotating and swinging hitch components while attaching to tractor drawbar/li>
- 360° coverage around rotating drivelines
4110 Specs & Compare
| MODELS | 4110 |
| CUTTING WIDTH | 10'6″ |
| CUTTING HEIGHT | 1 1/2″ - 16″ |
| CUTTING CAPACITY | 4″ |
| TRANSPORT WIDTH* | 8′ 2″ |
| TRANSPORT HEIGHT** | 7′ 3″ |
| TRANSPORT LENGTH*** | 15′ 3″ |
| APPROXIMATE WEIGHT (LB.) | 6,000 |
| APPROXIMATE TONGUE WEIGHT (LB.) | 1,900 |
| MINIMUM TRACTOR PTO HP | 60 |
| HITCH | "PERMA-LEVEL" OR BALL HITCH |
| CENTER DECK | 11GA OVER 7GA |
| WING DECKS | 7GA |
| WING CUTTING ANGLES | 22° DOWN AND 45° UP |
| WING LEVEL ADJUSTMENT | TURNBUCKLES |
| SIDEBANDS | 1/4″ X 13 1/2″ |
| TRANSFER GEARBOX (HP) | 250 |
| CUTTING GEARBOXES (HP) | 225 |
| INPUT DRIVELINE | CATEGORY 6 |
| WING DRIVELINES | CATEGORY 5 |
| BLADE HOLDER | 7GA ROUND |
| BLADES | 1/2″ X 4″ |
| BLADE TIP SPEED (FPM) | 16,268 |
| AXLE SUSPENSION | SPRINGS @ EACH AXLE |
| CENTER & WING HYDRAULICS | 3 HOSES STANDARD |
| SAFETY TOW CHAIN | STANDARD |
| DISTRIBUTION BAFFLES | OPTIONAL |
| PTO DRIVELINE SUPPORT | OPTIONAL |
*Measured from Wing Skid to Wing Skid when Folded
**Measured at Maximum Transport Height
***Measured from hitch tip to rear of 21″ Laminated Tire
