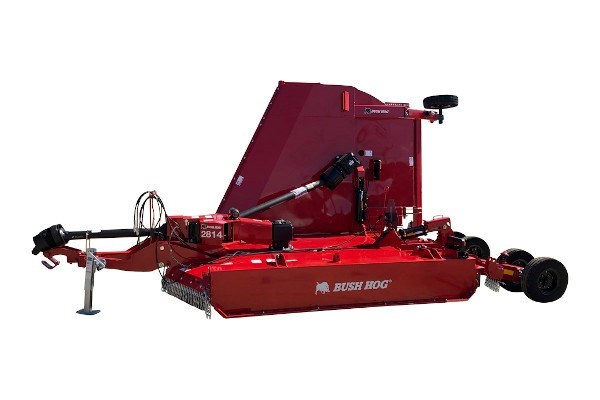

Bush Hog 2814
HEAVY-DUTY RIGHT-OF-WAY SINGLE FLEX-WING
The New 2814 Single Flex-Wing fits the bill when double wing cutters are prohibited by county or state governments due to the danger of having the left wing stick out into the road. And spanning 14 feet, the 2814 covers a lot of ground. The 2814 is equally at home in maintaining orchards, trimming row crops residue, or general field clearing. These cutters are packed with performance features like a rugged, center dual deck design, heavy-duty 250HP Transfer Gearbox, dependable 225HP cutting gearboxes with sight windows to quickly and safely check the oil, and independent spring-cushioned suspension at each wheel. The 2814 also comes standard with Double Row Chains as recommended for additional safety from thrown objects when mowing along roadsides, as well as Deck Rings for added strength and protection from blade deflection.
The 2814 is available with either a Ball or Perma-Level Hitch, 540 or 1000 RPM CV input drivelines, Dual or Walking Tandem Axles, and 6 Selections of tires.
The 2814 is another example that “If It Doesn’t Say BUSH HOG®, It Just Won’t Cut It.™”
Shopping Tools
2814 Features & Benefits
PERFORMANCE FEATURES
- Perma-level hitch allows the cutter to glide along ground contours
- Wings are free to float 22° down and 45° up without engaging the hydraulic cylinder for longer cylinder life
- Each cutting gearbox has the industry’s first massive 3-inch output shaft with deeper splines for maximum transmission of torque to the blade pan.
- Heavy-duty CV drivelines transfer power from the tractor PTO to the Transfer Gearbox
- Independent coil springs at each wheel take the brunt of rough field conditions instead of the axle
- Bush Hog® branded blades rip through tough vegetation
CONSTRUCTION FEATURES
- Decks are smooth on top as well as the underside for easy cleanup and better flow of clippings
- Deck rings come standard to provide additional deck support and to protect the deck from blade deflection
- 7ga reinforced blade pans protect the cutter, blade bar, and gearbox output shaft from unexpected obstacles
- Tough ¼” thick wing skids are formed at a 45° angle to protect the sidebands and reduce digging into the ground
- Grease fittings and Spring steel bushings minimize wear at each axle pivot point
- Six tire options from 21” Laminated to 29” Aircraft allow you customize the ride to your needs
SAFETY FEATURES
- Double row chains come standard to prevent thrown objects from exiting the cutter
- Highway travel lights come standard for safer travel on roadsides and in-between fields
PRODUCT FEATURES
- The Patent Pending oil sight gauge takes the guess work out of checking the oil. In less than 10 seconds, all three cutting box oil levels can be checked and rechecked as often as you walk around the machine. Never climb onto the cutter again to check the gearbox oil levels.
- Heavy-duty blade pans and deck rings protect the cutter and gearbox output shaft from unexpected obstacles and blade deflection.
- Bush Hog’s E-Z lube drivelines are quick and easy to service. All grease fittings on the pto CV driveline and wing drivelines align for quick location of grease points. Since all grease fittings on all drivelines are in an up position on every 5th revolution, service times are reduced.
2814 Specs & Compare
| MODELS | 2814 |
| CUTTING WIDTH | 13' 6" |
| CUTTING HEIGHT | 2″ -14″ |
| CUTTING CAPACITY | 3" |
| TRANSPORT WIDTH* | 9' |
| TRANSPORT HEIGHT** | 9' |
| TRANSPORT LENGTH*** | 17' 2" |
| APPROXIMATE WEIGHT (LB) | 6,050 |
| APPROXIMATE TONGUE WEIGHT (LB.) | 2,600 |
| MINIMUM TRACTOR PTO HP | 90 |
| HITCH | "PERMA-LEVEL" OR BALL HITCH |
| CENTER DECK | 11GA OVER 10GA |
| WING DECKS | 10GA |
| WING CUTTING ANGLES | 22° DOWN AND 45° UP |
| WING LEVEL ADJUSTMENT | TURNBUCKLES |
| SIDEBANDS | 1/4″ X 13 1/2″ |
| TRANSFER GEARBOX (HP) | 250 |
| CUTTING GEARBOX (HP) | 225 |
| INPUT DRIVELINE | CATEGORY 6 |
| CUTTING DRIVELINES | CATEGORY 5 |
| BLADE HOLDER | 7GA ROUND |
| BLADES | 1/2″ X 4″ |
| BLADE TIP SPEED (FPM) | 15,936 |
| AXLE SUSPENSION | SPRINGS @ EACH AXLE |
| CENTER & WING HYDRAULICS | 3 HOSES STANDARD |
| SAFETY TOW CHAIN | STANDARD |
| DISTRIBUTION BAFFLES | OPTIONAL |
| PTO DRIVELINE SUPPORT | OPTIONAL |
| *Measured from Wing Skid to Wing Skid when Folded **Measured at Maximum Transport Height ***Measured from hitch tip to rear of 21″ Laminated Tire |
