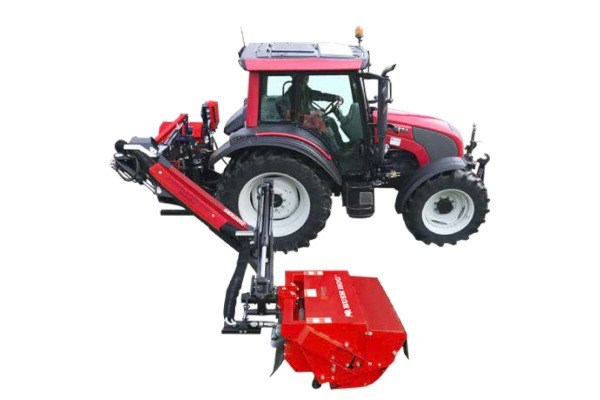

Bush Hog RMB1880F
The Forward Reach RMB Mower series from Bush Hog is available in two models ideal for more demanding agricultural, roadside maintenance and municipality use. Built to last from high grade DOMEX steel, both the RMB1880F and RMB2080F models pack a powerful combination of cutting capacity and reach into a rear mounted boom mower designed to handle extensive hedge cutting and verge-mowing duties. With Variable Forward Reach capabilities, the operator can now maneuver the mower head from behind the tractor wheel to alongside the cab for improved visibility, functionality and efficiency. For use with tractors equipped with cabs, weighing a minimum of 9,920 lb. and 80 HP.
Four cutter head options are available for the Forward Reach RMB mowers. Three flail head options with a 1”- 1-1/2” cutting capacity. Each come standard with adjustable front guard and flap kits to protect from thrown objects, as well as a built-in wire trap feature to help keep loose wires from becoming entangled in the rotor. The optional rotary cutter head unit offers powerful 4” cutting capacity in a 47” working width.
Shopping Tools
RMB1880F Features & Benefits
PERFORMANCE FEATURES
- 18-ft. and 20-ft. Boom Arm Reach
- Forward Reach Capability to Bring Cutter Alongside Tractor Cab for Better Visibility
- Standard Oil Coolers Make Units Ideal for Continuous Duty Use
- Power Slew – Rotate the Cutter 100⁰ to the Rear to Maneuver / Mow Around Obstacles
- SoftStart Rotor Engagement Reduces Strain During Startup
- Hydraulic Safety Breakaway Protects Boom and Tractor in Case of Obstacle Contact
- Cushioned Top Link Protects During Transit and Reduces Shock-Loading on the Tractor
- Constructed Using High Grade DOMEX Steel
PRODUCT FEATURES
- Both RMB1880F and RMB2080F models come equipped with the Evolution Control system, a more user friendly and intuitive setup operators will appreciate.
- An RMB mower allows the operator to reach from 18’ to 20” with either a flail or rotary cutter head attachment.
- Forward Reach capability makes it possible to bring the cutter head from behind the tractor wheel up alongside the cab for greater visibility and ease of use.
- Extended reach also means being able to mow down banks, around, and over obstacles like guard rails or fences thanks to the versatility of a boom mower.
RMB1880F Specs & Compare
| BOOM MOWERS | RMB1880F |
| TRACTOR ENGINE MINIMUM HP | 80 |
| TRACTOR MINIMUM WEIGHT (LB.) | 9,920 |
| TRACTOR PTO | 540 |
| MACHINE WEIGHT (LB.)* | 2,469 |
| HYDRAULIC SYSTEM | TOTALLY INDEPENDENT |
| ATTACHMENT METHOD | CATEGORY 2 & 3, 3-POINT MOUNT |
| CONTROLS | TWO-WAY ROTOR ENGAGEMENT - ELECTRIC CONTROL (ERC) |
| MAXIMUM REACH, HORIZONTAL (A) | 18′ 1″ |
| MAXIMUM HEIGHT, HORIZONTAL (B) | 16′ 1″ |
| MAXIMUM HEIGHT, HORIZONTAL (C) | 17′ 5″ |
| MAXIMUM HEIGHT, VERTICAL (D) | 22′ 0″ |
| MAXIMUM DEPTH, 45° | 7′ 10″ |
| LIGHTBAR KIT | STANDARD |
HEAD SELECTION CHART
| FLAIL HEAD | 50081485 | 50081486 | 50081487 |
| MINIMUM TRACTOR HP / WEIGHT | 80 HP / 9,920 LB. | 80 HP / 9,920 LB. | 80 HP / 9,920 LB. |
| ROTOR / KNIFE | UNI-BOOT FLAIL | OMEGA FLAIL | UNI-BOOT FLAIL |
| TYPICAL APPLICATION | HEDGE CUTTING, GRASS | HEDGE CUTTING, GRASS | HEDGE CUTTING, GRASS |
| CUTTING CAPACITY | 1" DIAMETER | 1-1/2" DIAMETER | 1" DIAMETER |
| CUTTING WIDTH | 47" | 45" | 59" |
| ROTARY HEAD | 50081488 |
| MINIMUM TRACTOR HP / WEIGHT | 80 HP / 9,920 LB. |
| TYPICAL APPLICATION | GRASS / BRUSH |
| CUTTING CAPACITY | 4″ DIAMETER |
| CUTTING WIDTH | 47″ |
