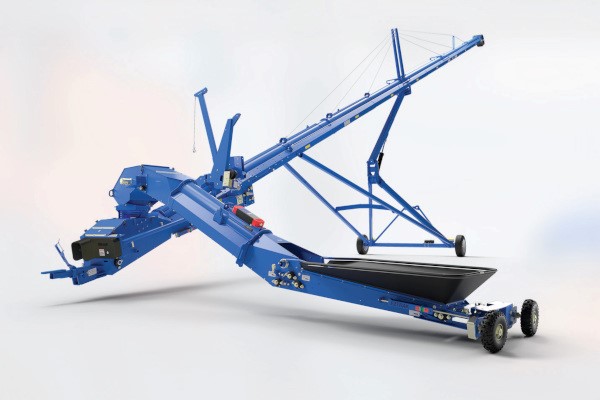

Brandt 15 Series
Brandt’s A-Series 15” Harvest grain belt conveyors are available in lengths of 80’, 90’ and 100’ and are designed to fit any farming application. These models deliver unmatched capacity in a 15” conveyor system and offer total versatility with multiple intake styles, drive options and optional EZMOVE system.
Brandt conveyors are a fast, worry free grain handling solution that moves up to 6,700 bu/hr, saving you time and money. Gentle and quiet, they move all your commodities faster than you ever thought possible.
Models Available: 80', 90', 100’
Shopping Tools
15 Series Features & Benefits
Intake Options
- The standard intake offers the proven performance and reliability that Brandt harvest belt conveyors have become known for.
- The same high-capacity, low-profile intake used on LP+ field belt conveyor is now available for Brandt harvest grain belt and can be used, not only for loading bins, but also for unloading hopper bins and center bin unloads!
- The swing-away intake incorporates a permanently attached transfer conveyor that has been designed to maintain optimal angles of operation at any raised height, while keeping the transfer conveyor angle as shallow as possible. This allows the entire unit to be optimized for performance when unloading trucks.
EZTRAK
Brandt's EZTRAK tensioning and tracking system keeps your belt aligned and properly tensioned at all times. A patented steel envelope keeps the belt aligned while the heavy-duty springs maintain consistent belt tension. The visual tension indicator makes it easy to see when adjustment is needed.
Precision Rollers
Drive rollers are machined to exact standards to eliminate run-out of the rollers against the rubber belting. This extends the life of the roller bearings and reduces maintenance.
High Traction S-Drive
The S-Drive allows for over 22” of belt contact on the 9” drive roller for increased drive traction, while belt take-up has been increased to 35” for improved tensioning. Viewing ports allow easier monitoring of tracking and roller wear and all rollers are replaceable without removing the belt, eliminating the need for spring re-tensioning.
Vulcanized Drive Roller
The fully vulcanized drive drum has superior drive and manufacturing characteristics, which prevent any damage to the belting.
Synchronous Belt Drive
The drive system is quieter that competitors’ models during operation and has enhanced wear characteristics over a chain-drive system. This eliminates downtime and maintenance costs associated with the roller chain such as lubrication, re-tensioning and excessive stretching causing chain failure.
Scissor Lift
Brandt’s scissor-lift undercarriage delivers unmatched strength and rigidity when the conveyor is fully raised, ensuring smooth operation and maximum reach into any bin or handling system.
Solid Wind Guards
The wind guard design incorporates welded side panels for added tube strength and protection from the elements. Removable panels on the underside allow for easy belt access.
Modular Construction
Critical wear points, such as the intake and discharge, feature modular construction and are easily replaced after extensive use.
Drive Options
- PTO (side drive PTO on standard and LP intake, end drive on swing-away intake)
- Gas (standard and LP intake only)
- Diesel (standard and LP intake only)
- Electric (standard and LP intake only)
Attachment Options
- Bucket spout
- Hopper cover
- Hydraulic brake winch
- Safety lights
- Work lights
- Electric clutch*
- Remote clutch*
- Soft start clutch*
- EZMOVE*
*Standard and LP intake only
15 Series Specs & Compare
| 15 Series | Length | Height | Capacity |
| 1580A | 80 ft | 10' 3" - 39' 5" | 6700 bu/hr |
| 1590A | 90 ft | 11' 5" - 44' 5" | 6700 bu/hr |
| 15100A | 100 ft | 11' 5" - 49' 5" | 6700 bu/hr |
