Orthman Bed Lister 7025
Precision Bedding Solutions for Maximum Crop Yield

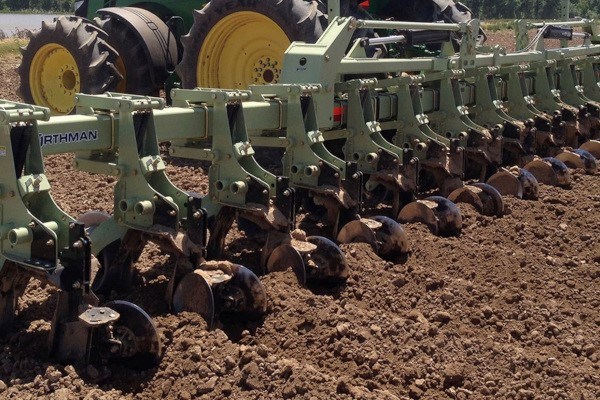

The Orthman Model 7025 rigid-mount Bed Lister provides quality bedding at a competitive price. The heavy-duty U-bolt mounted row units provide an economical, yet effective design for creating consistent beds for your crops. Rotary moldboards mounted on high- strength steel shanks offer a smooth and consistent pull to create perfectly shaped beds. The 7025 is available in a wide range of sizes and row spacings to fit your needs. The 8-row 30” model is available with a rigid toolbar design, the 12- and 16-row 30” models are available with a vertical-folding toolbar design, and the 6-row 60” and 12-row 30” are available with the innovative Orthman stack-folding toolbar. All folding toolbars feature the time-tested and rugged Orthman design with internal hydraulic fold cylinders for a cleaner toolbar design and precision line-bored wing fold hinges for smooth folding and unfolding, every time.
Shopping Tools
Bed Lister 7025 Features & Benefits
AN ECONOMICAL BEDDING TOOL WITH PRECISE BED-BUILDING CAPABILITIES
When your soils are mellow and mostly level, the model 7025 Bed Lister provides an economical bedding tool with precise bed-building capabilities. It is available in an 8-row 30” spacing configuration with a rigid toolbar, or as a 12- or 16-row 30” with a vertical-folding toolbar. The innovative stack-folding machines are available with 6-row 60" spacing or 12-row 30" spacing.
The rigid-mount row unit design is securely fastened to the toolbar with heavy-duty U-bolts.
The shear-bolt-protected tail protects the width- and angle-adjustable lister bottom from rocks and other obstructions to ensure a long life. The width is adjustable from 10" to 22" to perform in-row cultivation.
Your bed height, width and slope are all adjustable with smooth-pulling rotary moldboards that have been perfected through decades of infield research and customer feedback. They feature double bearings for added durability and are mounted on 3/4" steel shafts for longevity.
Accessories include optional base- or wing-mounted gauge wheels for depth control that feature an enclosed adjustment screw for easily matching your tillage needs.
Bed Lister 7025 Specs & Compare
Rigid-Mount 7025 Bed Lister
Horsepower requirements of 15–20 per shank. Specifications provided are for a standard 7025 with bar stands, safety lighting, rigid-mount row units, 1x3 shank, Bed Lister shovel and rear rotary discs.
| Rows | 6 | 8 | 12 | 12 | 16 |
| Spacing | 60" | 30" | 30" | 30" | 30" |
| Toolbar | Single 7x7 5x7 Hitch | Single 7x7 5x7 Hitch | Single 7x7 5x7 Hitch | Single 7x7 5x7 Hitch | Single 7x7 5x7 Hitch |
| Hitch | CAT 3/3N | CAT 3/3N | CAT 3/3N | CAT 3/3N | CAT 3/3N |
| Frame | Stack Fold | Rigid | Vertical Fold | Stack Fold | Vertical Fold |
| Row Unit | Rigid Mount | Rigid Mount | Rigid Mount | Rigid Mount | Rigid Mount |
| Trans. Width | 19' 11" | 22' 1" | 18' 6" | 21' 2" | 23' 6" |
| Trans.Height | 10' 8" | 4' 2" | 6' 10" | 10' 8" | 7' 6" |
| Work Width | 32' 9" | 22' 1" | 31' 11" | 34' | 41' 11" |
| Trans. Length | 3' | 3' | 3' | 3' 4" | 3' 6" |
| Approx. Weight | 4,490 lbs | 2,740 lbs | 4,240 lbs | 6,530 lbs | 5,890 lbs |
Due to continuing improvements in the design and manufacture of Orthman products, all specifications contained herein are subject to change without notice.
