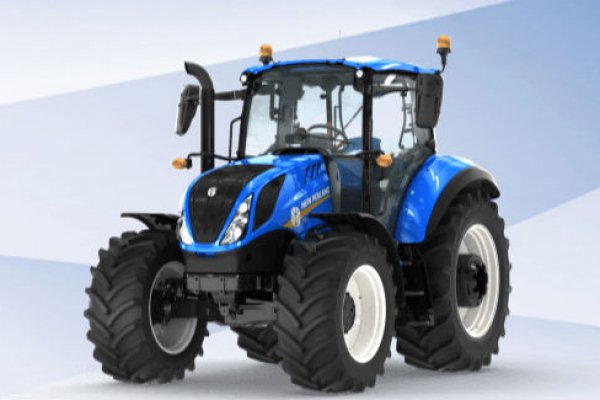

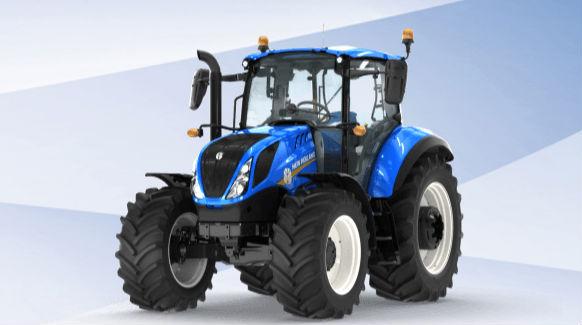

The hard-working T5 is the best utility tractor with deluxe features and big power to handle every chore.
TERRAGLIDE™ FRONT AXLE SUSPENSION: OUTSTANDING TRACTION. UNSURPASSED COMFORT.
The optional New Holland Terraglide™ suspended 4WD axle protects the tractor, mounted implements and the operator from heavy shock loads.
TRANSMISSIONS PERFECT FOR THE WORK YOU DO.
Choose the 24x24 Dual Command™ transmission or the Electro Command™ semi powershift transmission.
INCREASED PRODUCTIVITY AND EFFICIENCY.
T5 engines use ECOBlue™ Compact HI-Escr technology for Tier4B compliance, and to reduce your fuel bills.
CLEAN PERFORMANCE. RESPONSIVE PRODUCTIVITY.
T5 Series tractors deliver the power you need for loading, making hay and much more. They boast the latest in engine technology, featuring 3.4-L, 4-cylinder, 16-valve engines with common-rail fuel injection to maximize power and efficiency. These super-quiet engines develop between 107 and 117 horsepower and up to 362 lbs/feet of torque for guaranteed productivity. Add in a power-to-weight ratio of 85.7 lbs/hp and the T5 is your perfect farming partner.
TIER 4B EMISSIONS COMPLIANT
T5 Series engines fully comply with the stringent Tier 4B emissions regulations. They use ECOBlue™ Compact HI-eSCR System (Selective Catalytic Reduction) with light CEGR (Cooled Exhaust Recirculation) to achieve low emissions. This solution requires no diesel particulate filter (DPF) and no need for regeneration or operator input or the inconvenience of stopping. It all adds up to outstanding efficiency, which is what you’ve come to expect of the Clean Energy Leader.
ECOBLUE™ COMPACT HI-eSCR EXPLAINED
New Holland ECOBlue Compact HI-eSCR technology gives you the benefit of the highest NOx conversion efficiency in the industry. This multi-patented system uses a new Engine Control Unit, which not only manages the engine, but also the HI-eSCR after-treatment system by controlling the supply and dosing modules. Using a dedicated closed loop system, it continuously monitors the NOx levels in the exhaust gases, ensuring that during every cycle the precise amount of AdBlue® (DEF) is injected to achieve NOx conversion of over 95%, all while guaranteeing low fluid consumption.
PROVEN TECHNOLOGY FROM FPT INDUSTRIAL
New Holland is not going it alone when it comes to Tier4 technology. They can draw on the experience of their in-house engine development specialist: FPT Industrial. The award-winning Hi-eSCR solution has been extensively tested and has clinched numerous awards.
MORE POWER, TORQUE RISE AND RESPONSE THAN PREVIOUS
With four valves per cylinder, the T5 engines “breathe” better and achieve better performance by maximizing power output from each cylinder. This improved performance translates into increased lugging power and efficiency.
THE IMPORTANCE OF TRANSIENT RESPONSE
Transient response is your productivity guarantee. Put simply, since your T5 engine breathes only clean fresh air, it can react more quickly when placed under load. So when you’re transporting fully loaded trailers or grain carts and you encounter a hill, you’ll be able to maintain constant forward speed with quicker engine rpm recovery.
CONSTANT RPM WITH ENGINE SPEED MANAGEMENT
In applications where a constant PTO speed is required, just select Engine Speed Management to ensure the speed is maintained even under changing loads. In many applications, this allows you to maintain a fixed forward speed in difficult terrain.
SIMPLE ESM. TAKING THE HASSLE OUT OF THROTTLE CONTROL
A versatile mid size tractor needs to be equally suited to PTO and heavy draft applications. With Engine Speed Management (ESM), the advanced engine management system precisely fuels the engine so it accommodates fluctuations in engine load while maintaining the desired engine speed. For convenience, two engine speeds can be memorized. You can then simply toggle between the speeds using a button on the transmission controller.
THE PERFECT SPEED
New Holland offers a choice of transmissions to match your applications and your preferences.
24X24 DUAL COMMAND™ TRANSMISSION
This easy-to-use transmission makes a big difference in your day. It gives you a Hi-Lo speed in each of the four gears within the three ranges. Simply use the push buttons on the side of the control lever. In addition, the Dual Command transmission offers a PowerClutch button that allows you to shift between gears within a range without clutching with your foot, as well as a smooth, left-hand electrohydraulic shuttle lever that conveniently returns to the central rest position for quick direction changes. Select from three shuttle aggressiveness settings using a rocker switch.
16x16 ELECTRO COMMAND™ SEMI-POWERSHIFT
The Electro Command™ transmission gives you eight thumb-button powershifts without making a shift lever range change. You can see the selected gear at a glance thanks to the large gear display. Top transport speeds of 25 MPH (40kph) are achieved at a mere 2040 rpm (with 18.4-34 rear tires). The result? Your T5 will slash your fuel bills while reducing in-cab noise.
AUTOSHIFT MODES FOR COMFORT AND PRODUCTIVITY
Add the AutoShift™ option with the Electro Command transmission and gear shifting is taken care of for you automatically. With Auto Transport, the tractor shifts seamlessly through eight speeds like a vehicle with an automatic transmission. Auto Field mode manages both the engine speed and transmission to optimize performance and economy. In power-take-off (PTO) applications, where a constant engine speed is the priority, the system will select the transmission ratio to match the load on the engine. In draft applications, engine speed is allowed to drop to fully exploit the available torque rise before selecting a lower ratio under load.
ERGONOMIC POWER SHUTTLE WITH 3 AGGRESSIVENESS SETTINGS
You can operate the convenient, column-mounted electro hydraulic power shuttle without taking your hand off the wheel for increased safety during loader work. You can even regulate the shuttle aggressiveness setting with an ergonomically positioned switch. Select soft for general field work, standard for daily tasks and the aggressive position for near instantaneous direction changes during loader work. You can even change the setting while on the move.
OPTIONAL ISO BUS CLASS 2
ISO BUS Class 2 allows you to control all of your implements—balers, mowers and more—using your T5 IntelliView™ IV tractor monitor (optional parts supplied).
TERRALOCK™ AUTOMATIC TRACTION MANAGEMENT
New Holland’s renowned Terralock™ system is simple to setup and operate. It automatically controls four-wheel drive and differential lock engagement. Forward speed and steering angle information dictate engagement. When making tight turns, the system automatically disengages to guarantee the tightest turning and reduce strain on the driveline.
|Type||Turbo diesel with high pressure common rail with electronic fuel delivery control|
|Displacement cu. in. (L)||207 (3.4)|
|Emissions System||ECOBlue™ Compact HI-eSCR System with light CEGR|
|Standard||16 x 16 Electro Command™ Semi-Powershift|
|Option 1||16 x 16 Electro Command™ with Auto Shift|
|Option 2||32x32 Electro Commmand™ with Creeper|
|3 Point hitch|
|Lift capacity||8,084 lbs|
|Implement Pump Flow||21.1 gpm (80 L/min)|
