WORK ANYWHERE, ANYTIME, WITH HIGH RETURN ON INVESTMENT (ROI)

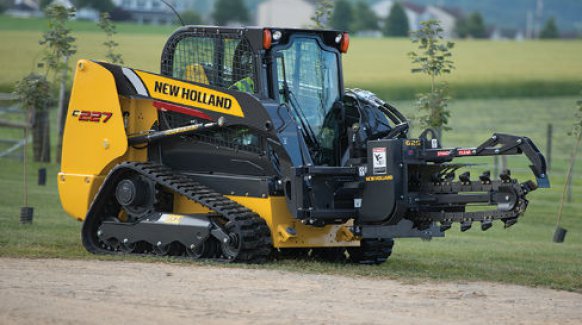

New Holland 200 Series compact track loaders allow you to move bigger loads and work with a higher level of confidence, comfort and speed. These models hold fast to steep slopes and move easily through muddy or sandy terrain to complete jobs quickly and efficiently. Low ground pressures allow these machines to float over terrain in any weather condition, making them perfect for Landscaping and Nursery applications.
Outstanding breakout forces and dump height
With the patented Super Boom® vertical lift linkage, New Holland compact track loaders provide you with some of the best breakout forces and dump heights in the industry.
Turbocharged engines feature externally cooled EGR (exhaust gas recirculation) for efficient air handling and high engine power density with the shortest load response time.
Comfortable, sealed and pressurized cab
Optional sealed cab minimizes noise and dust. The full-view windshield provides an outstanding view. A heater/defroster kit and optional air conditioning allows you to control the climate in any weather.
A smooth ride and longer track life
New Holland’s low-profile undercarriage design uses steel-embedded tracks that roll on rubber instead of steel to give you a smoother, quieter ride and longer-lasting tracks. The undercarriage design has fewer moving parts than competitive designs, and the simplified carrier design includes more open areas to improve track cleanout and extend track and carrier life. Lifetime sealed and lubricated rollers and idlers reduce your maintenance costs.
|Manufacturer/model||FPT / F5H FL463A|
|Bore/stroke, in (mm)||3.9 x 4.3 (99 x 109)|
|Displacement, in3 (L)||207 (3.4)|
|Fuel injection||HPCR Direct|
|Horsepower per SAE J1349 Gross hp (kW)||74 (55) @ 2500 rpm|
|Horsepower per SAE J1349 Net hp (kW)||68 (51) @ 2500 rpm|
|Peak torque, lb-ft (Nm)||232 (314) @ 1400 rpm|
|Travel speed, low range, mph (km/h)||5.1 (8.2)|
|Travel speed, high range (optional), mph (km/h)||7.6 (12.2)|
|Bucket hinge pin, in (mm)||123 (3124)|
|Top of ROPS, in (mm)||78.7 (1998)|
|Bottom of level bucket, fully raised, in (mm)||116.1 (2950)|
|Overall length without attachment with coupler, in (mm)||105.1 (2669)|
|Dump angle, degrees||40|
|Dump reach (max height), in (mm)||22.3 (568)|
|Rollback, bucket on ground, degrees||31|
|Rollback, bucket at full height, degrees||99|
|Track on ground, in (mm)||55.9 (1419)|
|Ground clearance (bottom of belly pan), in (mm)||8 (203)|
|Angle of departure, degrees||32|
|Clearance circle without bucket, in (mm)||50.7 (1289)|
|Clearance circle rear, in (mm)||62.9 (1599)|
|Overall width, in (mm)||65.9 (1676)|
|Ground pressure, PSI (with spec belt)||5,9|
|Pump flow, gpm (Lpm)||24.2 (91.5)|
|Optional high flow, gpm (Lpm)||32.4 (122.6)|
|Relief pressure, psi (bar)||3046 (210)|
