MORE POWER. MORE PRODUCTIVITY. MORE VALUE.

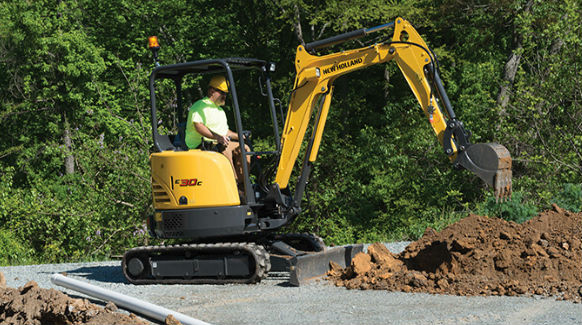

You can work next to buildings, foundations and roads with greater confidence in a C Series compact excavator. They combine power, performance and versatility to make the very most of every minute of your day.
Big power in restricted spaces
C Series excavators deliver big digging and grading performance with SAE bucket breakout forces up to 8,490 lbf and dig depth up to 12.5 feet. Their compact design and zero/short tail swing mean you can dig, fill and grade in the most confined, congested areas. You can offset the excavator boom left or right within the operating range to match the situation. The C Series also offers more ground clearance and excellent dozer blade lift height for maneuvering and working in tough conditions.
More selection, more power
With seven models from 1.7 to 6 tons, there’s nothing small about the performance of New Holland compact excavators. All models offer an increase in horsepower compared to previous models, powered by quiet, fuel-efficient Tier 4 Final engines up to 66.9 horsepower.
Ease and comfort equate with operator productivity, so the wide C Series cab is designed for spaciousness, all-around visibility, comfortable seating and smooth control. New Holland’s Auto Shift traveling system automatically downshifts when load increases to enhance travel torque on slopes and in difficult conditions, then shifts back up to secure a faster travel speed after the load decreases. The Auto Idle system activates when you are not using the operating levers to improve fuel efficiency.
|Emissions Certification||Tier 4 Final|
|Displacement||77.0 in³ (1 261 cc)|
|Gross horsepower – SAE J1995||24.8 hp (18.5 kW) @ 2300 RPM|
|Travel speeds - 1st||1.5 mph (2.4 kph)|
|Travel speeds - 2nd||2.7 mph (4.3 kph)|
|Maximum traction force||4,800 lb (2 177 kg)|
|Ground pressure||Canopy 3.8 psi (0.27 kgf/cm²)/ Cab 4.1 psi (0.29 kgf/cm²)|
|Fuel tank||7.9 gal (30 L)|
|Hydraulic tank - Refill capacity||7.1 gal (27 L)|
|Hydraulic tank - Total system||14.5 gal (55 L)|
|Engine oil w/ filter change||1.6 gal (5.9 L)|
|Radiator||1.3 gal (5 L)|
|Arm (standard length)||3 ft 8 in (1.12 m)|
|Overall height||8 ft 2 in (2 500 mm)|
|Overall transport length||13 ft 9 in (4 180 mm)|
|Track overall length||6 ft 6 in (1 970 mm)|
|Track overall width||5 ft 1 in (1 550 mm)|
|Track shoe width||11.8 in (300 mm)|
|Center to center – idler to sprocket||4 ft 11 in (1 490 mm)|
|Upper structure ground clearance||1 ft 8 in (510 mm)|
|Minimum ground clearance||11 in (290 mm)|
|Tail swing radius||Standard counterweight 2 ft 6 in (750 mm)/ Additional counterweight 2 ft 10 in (875 mm)|
|Boom swing||75° left/50° right|
|Tail swing overhang||Standard counterweight 0 in (0 mm)/ Additional counterweight 5 in (125 mm)|
|Operating weight||Canopy 6,306 lb (2 860 kg)/ Cab 6,636 lb (3 010 kg)|
|Backfill blade height||1 ft 1 in (330 mm)|
|Backfill blade width||5 ft 1 in (1 550 mm)|
|Backfill blade rise above ground||1 ft 7 in (370 mm)|
|Backfill blade dig depth||1 ft 6 in (450 mm)|
|Maximum dig radius||15 ft 3 in (4 650 mm)|
|Dig radius at groundline||14 ft 10 in (4 515 mm)|
|Maximum dig depth||8 ft 2 in (2 500 mm)|
|Vertical straight wall dig depth||6 ft 10 in (2 085 mm)|
