DEPENDABLE, HIGH-SPEED RAKING
Individual floating rake wheels provide cleaner raking and help form more uniform windrows that are easier to bale.
DURABLE, COMPACT DESIGN
The well-built frame provides the strength and reliability you need, and it’s compact and stable so you can move fast between farm and field.
HIGH FRAME CLEARANCE
Unlike other carted wheel rakes on the market, ProCart™ rakes offers a high frame clearance to accommodate high-volume crops.
A CHOICE OF MODELS
With raking widths from 18 to 28 feet, and a choice of five different models, there’s one perfect for you.
CLEANER RAKING WITH INDEPENDENT RAKE WHEEL FLOTATION
Individual floating rake wheels follow ground contours independently to gather every bit of the swath to cause less stubble damage compared to rakes with tandem-mounted rake wheels. Suspended by an adjustable compression spring, each rake wheel can be adjusted to your crop and field conditions for the cleanest possible raking.
FLIP-UP FRONT RAKE WHEELS
You can raise the leading rake wheel on each beam and lock it out of the work position to adapt to changing crop conditions. When working in heavy crops like first cuttings, raise the front rake wheel, or for lighter, late-season cuttings, lower the front rake wheel into raking position. This added flexibility allows you to produce the ideal windrow size for your baler or harvester, no matter the season or crop conditions.

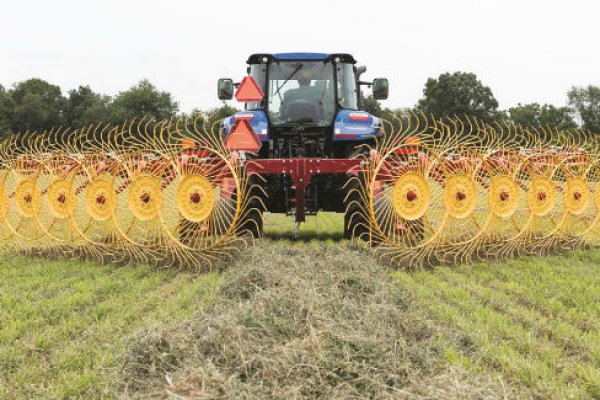

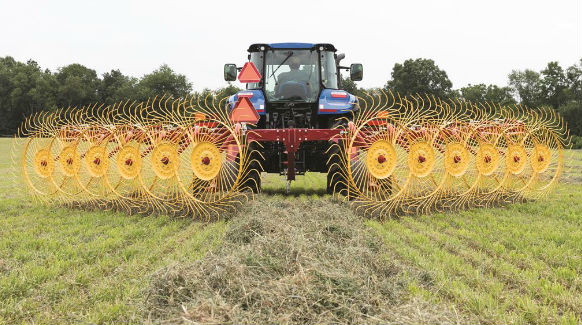

|1225 Plus 12-Wheel|
|Number of finger wheels||12|
|Finger wheel diameter in (m)||55 or 60 (1.4 or 1.5)|
|Teeth per wheel||40|
|Rake wheel tine diameter in (mm)||0.28 (7) or .30 (7.5)|
|Overall length* ft (m)||23' 9" (7.24)|
|Minimum transport height ft (m)||9' 2" (2.8)|
|Transport width ft (m)||9' 2" (2.8)|
|Tread width outside of tires ft (m)||8' 1-1/2" (2.48)|
|Minimum working width* ft (m)||22' (6.7)|
|Maximum working width* ft (m)||25' 1" (7.65)|
|Minimum windrow width* ft (m)||3' (0.9)|
|Maximum windrow width* ft (m)||6' 7" (2.0)|
|Operating Weight lb (kg)||2,736 (1,241)|
|Tires||205 - 75/15|
|Tractor requirement hp (kW)||50 (36.7)|
|Tractor requirement, hydraulic||2 DA|
