FAST, SMOOTH CUTTING

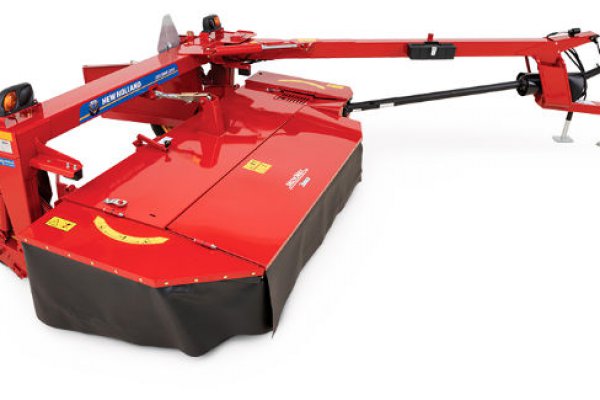

The maneuverable 9’2” Discbine® 209 and the 10’4” Disbine® 210 make high-quality hay with the smooth, trouble-free performance you expect from a genuine Discbine.
MOWMAX™ DISC CUTTERBAR 3-YEAR FACTORY WARRANTY
New Holland’s MowMax™ disc cutterbar breezes through tough mowing conditions and is backed by three full years of factory warranty so you can cut close with confidence.
QUICKMAX™ BLADE CHANGE SYSTEM IS STANDARD EQUIPMENT
The QuickMax™ knife change system makes it easy to keep knives sharp for the close, clean cut you want and increased tonnage.
HIGH QUALITY AND FAST DRYDOWN
Choose the best conditioning system for your crops – rubber chevron rolls, steel chevron rolls or advanced LeaningEdge™ flail tines.
|Cutting width ft. in. (m)||9' 2" (2.8)|
|Cutterbar model||MowMax™ Modular Cutterbar with ShockPRO™ hubs|
|Number of discs||7|
|Knives per disc||2|
|Disc speed @ 540 rpm PTO speed rpm||3000|
|Tilt angle degrees||2° - 10°|
|Flotation||Up & back, adjustable springs|
|Drive method||PTO drive with slip & overrunning clutch to bevel gearbox to LH end of header, vertical PTO shaft to cutterbar|
|Cutting height in. (mm)||1.1-2.7 (29-68)|
|Cutting height w/optional high-stubble shoes in. (mm)||2.25-4.5 (58-115)|
|Cutting height w/optional adjustable shoes in. (mm)||2.25-4.5 (58-115)|
|Type||Chevron intermeshing rubber|
|Length / Diameter in. (mm)||90 (2286) / 10.4 (264)|
|Drive method||4 HB V-belt and enclosed gears|
|Conditioner roll tension adjustment||Single crank|
|Conditioner gap adjustment||Adjustable drawbolt stop, each end|
|LeaningEdge Flail Conditioners|
|Type||Flail rotor with 90 tapered flails|
|Length / Diameter in. (mm)||90 (2286) / 22 (560)|
|Drive method||4 HB v-belt|
|Speed rpm||718 std. 1000 opt.|
|Conditioner gap adjustment||Single crank adjustable rotor hood|
|Swath width ft. (m)||6 (1.83)|
|Windrow width ft. (m)||3-6 (0.9-1.83)|
|Input speed rpm||540|
|Driveline protection||Slip clutch and overrunning clutch assembly at rear of PTO shaft|
|Secondary driveline||Non-CV driveline|
|Type||Side-pull, straight tongue|
|Hitch type||Drawbar with CV PTO|
|Minimum PTO power required hp (kW)||65 (49)|
|Hydraulic circuits required||2|
|Minimum relief pressure required psi (bar)||1500 (103)|
|Drawbar||ASAE Category II|
|Swivel Hitch - Drawbar||—|
|Swivel Hitch - 2-Point||—|
|Electrical||7-pin electrical connector for transport lights|
|Tubeless ag rib implement tires||9.5L x 14L 6PR|
|Max road speed mph (kph)||20 (32)|
|Width, transport ft. in. (m)||9' 11" (3.02)|
|Width , operating ft. in. (m)||14' 10" (4.52)|
|Length, transport ft. in. (m)||Flail Tine: 18' 1'' (5.50)*** or Roll: 17' 7'' (5.23)***|
|Length, operating ft. in. (m)||Flail Tine: 17' 8'' (5.4)*** or Roll: 17' 2'' (5.23)***|
|Height ft. in. (m)||Transport: 5' 8" (1.73) / Operating: 4' 5" (1.35)|
|Ground clearance with head fully raised in. (mm)||17 (4.32)|
|Operating weight lbs. (kg.)||Flail Tine: 3690 (1674)*** / Roll: 3740 (1697)***|
— Not Available
*** Rear curtain down for all height and length measurements on machines with flail conditioners. Subtract 2” (50.8 mm) for flail curtain up. Windrow shields fully open for length in both positions.
*** Weights with rubber conditioning rolls. Add 100 lbs. (45 kg) for steel rolls.
*** Weights & dimensions are with standard drawbar hitch. Add 150 lbs. (68 kg) & 2 ft. (.60) length for swivel hitch models.
