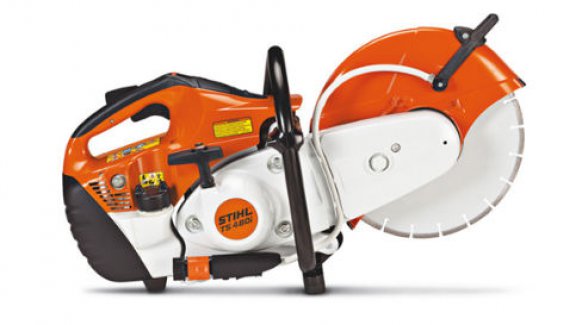

Stihl TS 480i STIHL Cutquik®

Double tap to zoom



Features

The TS 480i STIHL Cutquik® cut-off machine features an electronically controlled fuel-injection system, increasing the power by 17% as compared to the STIHL TS 410.

Powerful, lightweight and well-balanced, the STIHL TS 480i is designed for superior handling during the toughest jobs (maximum wheel size is 12 inches). With low exhaust emissions, the engine provides optimal torque throughout the RPM range and eliminates the need for a choke, simplifying the starting procedure. The standard electronic water control feature allows for easy and efficient water flow adjustment while operating. The X2 air filtration system is virtually maintenance-free and maintains an incredible 99.96% cleaning efficiency.

Specifications

TS 480i STIHL Cutquik® Specifications - Professional Use
DISPLACEMENT 72.2 cc (4.41 cu. in.)
ENGINE POWER 3.9 kW (5.2 bhp)
WEIGHT* 10.0 kg (22.0 lbs.)
FUEL TANK CAPACITY 725 cc (24.5 oz.)
ENGINE SPEED 9,000 rpm (Elec. Gov.)
MAX. SPINDLE SPEED 5,350 rpm
MAXIMUM WHEEL SIZE 300 mm (12")
MAXIMUM CUTTING DEPTH 100 mm (3.9")
POWER SOURCE Gas
*Weight includes water attachment and guard.
