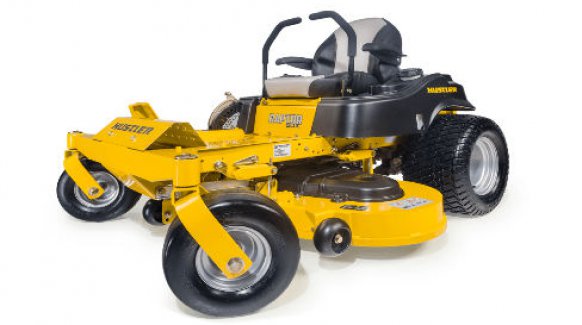

Hustler 54" Kawasaki FR691V

Double tap to zoom



Patented Automatic Park Brake System

A simple and convenient system that automatically engages the parking brake when you open the steering levers.

Heavy-duty fabricated frame

Hustler's heavy-duty fabricated frames are the toughest in its category.

Open deck design

Designed for more open discharge of clippings.

Premium Seat

Custom, bolstered vinyl seat with internal suspension for superior comfort.

Engine Guard

Standard on the Raptor SDX

Exclusive SmoothTrakSteering

The most precise steering in the zero-turn industry is only found on a Hustler®.


Zero-Turn Configuration 54" Kawasaki FR691V
Manufacturer Kawasaki
HP (Per SAE J 1995.) 23HP
Displacement 725cc
Cooling Air Cooled
Air Cleaner Single Stage
Engine Warranty 3 Year
Drive System
Zero-Turn Configuration 54" Kawasaki FR691V
Type Dual Hydrostatic
Pumps n/a
Wheel Motors n/a
Hydraulic Lines n/a
Hydraulic Cooling n/a
Reservoir Capacity n/a
Transmission HydroGear ZT2800
Speed 7.5 mph
Parking Brakes Patented Automatic
Zero-Turn Configuration 54" Kawasaki FR691V
Cutting Width 54"
Cutting Heights 1.5"-4.5"
Deck Lift Foot Operated
Depth 4.5"
Blades 3
Blade Length 3 - 18.50" x 2.50" x .20"
Blade Tip Speed 18,900 fpm
Spindles Aluminum w/ 1.0" Shafts and Double Lip Sealed Ball Bearings
Deck Belts n/a
Drive Electric PTO Clutch
Construction 11ga. Fabricated
Spindle Mounts Reinforced 7ga.
Impact/Trim Areas 3/8" x 1" Steel Bar
Zero-Turn Configuration 54" Kawasaki FR691V
Frame 3.25" x 1.5" x .120" Steel
Deck Carrier Frame n/a
Engine/Transmission Frame n/a
Engine Plate n/a
Front Axle Fabricated w/ Sealed Ball Bearings
Front Caster Wheels Commercial Duty Steel Roller Bearings, greasable
Front Caster Forks Fabricated 3/8" Steel
Operator Platform n/a
Zero-Turn Configuration 54" Kawasaki FR691V
Seat Adjustable premium seat with armrests. Internal suspension.
Fuel Capacity 3 gal.
Cup Holder Yes
Front Tire 13 x 6.5 - 6
Drive Tire 20 x 12 - 10
Zero-Turn Configuration 54" Kawasaki FR691V
Acres per Hour 3.27
Zero-Turn Configuration 54" Kawasaki FR691V
Weight 666 lbs.
Height 42"
Height w/ ROPS Up n/a
Height w/ ROPS Folded n/a
Length 73"
Width n/a
Width w/ Chute Up 57"
Tire Width 46"
Dimensions w/ Catcher
Zero-Turn Configuration 54" Kawasaki FR691V
Catcher Type 2-bag
Powered/Non-powered Non-powered
Catcher Capacity 5.2 bushel
Mower Length w/ Catcher 91.4"
Mower Width w/ Catcher 63.25"
