Features

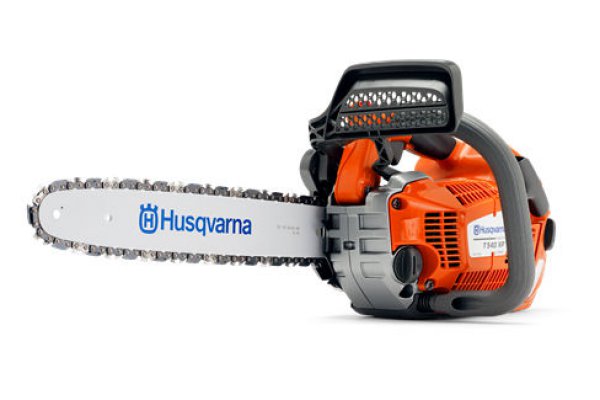

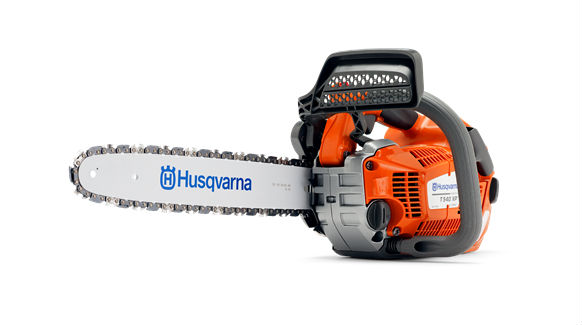

Husqvarna T540 XP® is a high-end top handle arborist chainsaw designed for professional customers like pro arborists, landscapers, garden contractors and utility services who need excellent performance in combination with the best ergonomics.
AutoTune
AutoTune gives optimal engine performance throughout automatic engine setting.
No time spent on carburetor adjustments. It compensates for
different fuels, altitude, humidity, temperature and clogged air filter.
Adjustable oil pump
Allows you to control oil flow depending on application and weather conditions.
X-Torq®
Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.
Individual grip size
The top handle grip size can be set in three alternative sizes, to perfectly fit your hand.
Specifications
Lubricant
Oil tank volume 0.42 US pint
Oil pump type Adjustable flow
Oil pump capacity Max 9 ml/min
Oil pump capacity Min 3 ml/min
Vibration
Equivalent vibration level (ahv, eq) front handle 3.1 m/s²
Equivalent vibration level (ahv, eq) rear handle 3.2 m/s²
Overall dimensions
Weight (excl. cutting equipment) 8.6 lbs
Dimensions
Weight (excl. cutting equipment) 8.6 lbs
Equipment
Recommended bar length, max 16 in
Recommended bar length, min 12 in
Chain pitch 3/8"
Chain gauge 0.05 in
Chain speed at max power 63.65 fts
Chain speed at 133% of maximum engine power speed 84.65 fts
Engine
Cylinder displacement 37.7 cm³
Cylinder displacement 2.3 cu.inch
Power output 2.4 hp
Maximum power speed 10200 rpm
Fuel tank volume 0.72 US pint
Idling speed 3000 rpm
Spark plug NGK CMR6H
Electrode gap 0.02 in
Torque, max. 1.79 Nm
Fuel consumption 464 g/kWh
Sound and Noise
Sound power level, guaranteed (LWA) 116 dB(A)
Sound power level, measured 114 dB(A)
Sound pressure level at operators ear 104 dB(A)
