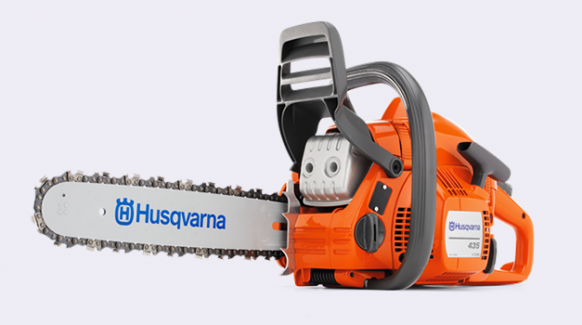

Husqvarna HUSQVARNA 435

Husqvarna HUSQVARNA 435 for sale at H&R Agri-Power

Double tap to zoom

Husqvarna HUSQVARNA 435 for sale at H&R Agri-Power



Features

Snap-lock cylinder cover

Saves time when changing spark plugs and cleaning.

Air Injection

Centrifugal air cleaning system removes larger dust and debris particles before reaching the air filter. This results in reduced air filter cleanings and improved engine life.

X-Torq®

Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.

LowVib®

System designed to reduce vibration levels to the operator, which lessens fatigue.

Quick-release air filter

Facilitates cleaning and replacement of the air filter.

Ergonomic rear handle

Increased comfort with soft inlay, ergonomic trigger and asymmetrical handle.

Felling marks

Distinct marks for better felling precision.

Side-mounted chain tensioner

Easier access to chain tensioning device.

Three-piece crankshaft

Forged three-piece crankshaft for maximum durability for the toughest applications.

Visible fuel level

Transparent fuel indicator makes it easy to check fuel level.

Easy to start

Combined start/stop switch, Smart Start® and fuel pump make the saw very easy to start.

Air Purge

Removes air from carburetor and fuel system for easy starting.

Inertia activated chain brake

Reduces the likelihood of injury due to kickback.

Specifications

Engine

Cylinder displacement 40.9 cm³
Cylinder displacement 2.49 cu.inch
Power output 2.15 hp
Maximum power speed 9000 rpm
Fuel tank volume 0.78 US pint
Idling speed 2900 rpm
Spark plug Champion RCJ7Y, NGK BPMR7A
Electrode gap 0.02 in
Torque, max. 2 Nm
Fuel consumption 650 g/kWh

Equipment

Recommended bar length, max 18 in
Recommended bar length, min 13 in
Chain pitch .325"
Chain gauge 0.05 in
Chain speed at max power 56.9 fts
Chain speed at 133% of maximum engine power speed 75.46 fts

Lubricant

Oil tank volume 0.53 US pint
Oil pump type Fixed flow
Oil pump capacity Max 13 ml/min
Oil pump capacity Min 13 ml/min

Overall dimensions

Weight (excl. cutting equipment) 9.2 lbs

Sound and Noise

Sound power level, guaranteed (LWA) 114 dB(A)
Sound power level, measured 112 dB(A)
Sound pressure level at operators ear 102 dB(A)

Vibration

Equivalent vibration level (ahv, eq) front handle 3.8 m/s²
Equivalent vibration level (ahv, eq) rear handle 4.2 m/s²
