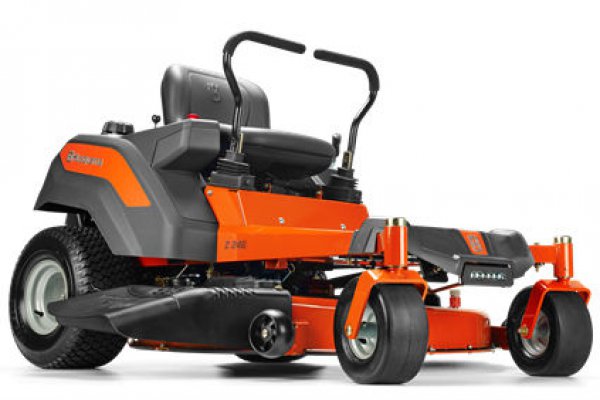

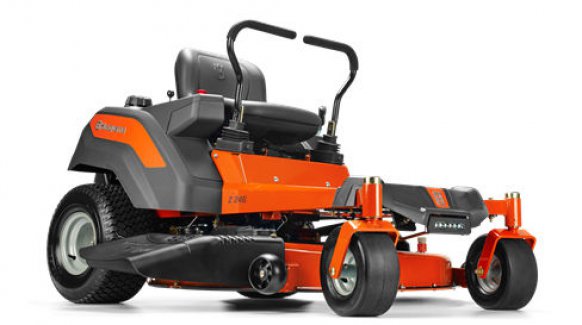

Husqvarna Z246 - 967 32 40-01

Double tap to zoom



Features

Air Induction Mowing Technology

Air is drawn from the top and bottom of the deck, improving grass lift and delivering a superior cut.

Reinforced steel cutting deck

The stamped cutting deck is reinforced with heavy flat-stock steel for added strength and durability on the leading edge and trim side. (Z254 shown)

Maintenance-Free Transmission

Worry free performance with maintenance free, integrated zero-turn transmissions.

Rugged frame and casters

The robust frame and casters ensure durability and reduced chassis flex.

Convenient deck lift

The deck lift system is spring assisted for ease of use and conveniently located within easy reach of the operator.

Anti-slip foot area

The footrest area incorporates generous non-slip surfaces for safe and comfortable use.

Rear engine guard

The rear guard protects the engine from impact as well as limits access to hot surfaces for safety.

Ergonomic control panel

The ergonomic control panel places everything conveniently at your fingertips.

Refinement

Rubber bellows offer a refined look and prevent debris and moisture from entering the control system

Removable foot plate

The unique tube style chassis features a removable foot pan for easy access to the top of the cutting deck.

Automatic park brake system

The new patent pending park brake system automatically activates or deactivates as the steering levers are moved outward or inward, freeing the user of the task.

Specifications

Capacity

Productivity 2.4 acres/hr
Speed forward max 6.5 mph

Cutting deck

Cutting width 46 in
Cutting deck type Stamped, Reinforced
Cutting methods 3-in-1 Mulch/Rear Bag/Side Discharge Capable
Cutting deck material Steel
Deck thickness 13 gauge
Blade engagement Electric clutch
Blades 2 pcs
Blade-tip speed 16600 fpm
Deck lifting system  Manual, hand operated
Spindle/mandrel type Cast Aluminum
Deck Wash Port  Yes
Cutting height, min (approximate)  1.5 in
Cutting height, max (approximate) 4 in

Dimensions

Weight 580 lbs
Tire size, front Width    6 in
Tire size, front Diameter  11 in
Tire size, front Diameter wheel 5 in

Drive system

Transmission type Hydrostatic
Transmission manufacturer  Hydro-Gear
Transmission model  EZT

Engine

Engine manufacturer Kawasaki
Engine name  FR Series
Power   21.5 hp
Cylinder displacement 44.30 cu.inch
Cylinders 2
Engine cooling Fan/Air
Air Filter type Standard OEM
Fuel Type Gasoline
Engine lubrication type  Full pressure
Fuel tank volume (with reserve) 3.5 gal (US)
Fuel tank location Side (Single)

Equipment

Seat material Vinyl
Seat spring Yes
Hour meter Digital with pre-programmed service intervals
Cup holder Yes
Seat type 15" high back
