Husqvarna M-ZT 61 967 17 70-08

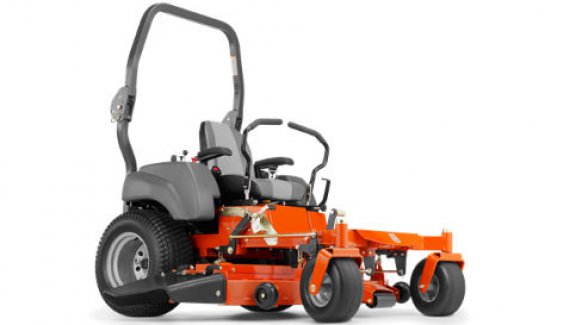

Husqvarna M-ZT 61 967 17 70-08 for sale at H&R Agri-Power

Double tap to zoom

Husqvarna M-ZT 61 967 17 70-08 for sale at H&R Agri-Power



Features

Roll Over Protection System (ROPS)

The practical foldable ROPS protects the user and can be lowered in areas with low-hanging branches.

Heavy Duty Fabricated Deck

The robust cutting deck features twin 11 gauge sheet (1/4" combined) construction for added structure and spindle support. Cast iron blade spindles impact resistant discharge shields and reinforced scalp rollers add to the commercial duty design.

Cast Iron Spindle Housings

Bold cast iron blade housings built for durability and featuring sealed ball bearings.

Commercial drive system

Hydro-Gear's ZT3400 series commercial transmissions are fully serviceable and offer higher ground speeds with smooth performance.</>

Transmissions

Longer life due to premium integrated zero-turn transmissions featuring charge-pumps, larger drive axles and expansion tanks.

Oversized chassis

2'' x 3'' tube chassis combined with large rear and front tires provide superior strength and improved ride quality.

Adjustable steering levers

Steering levers are adjustable for different size operators - ergonomically angled inward for more comfort and can be adjusted to suit your particular style.

Convenience

Convenient control panel placement makes it a breeze to operate.

9 Bushel Collection System

Increase productivity and versatility with a 9 bushel triple bag collection system. Unique design removes or installs in a matter of minutes.

Rugged Frame

One-piece frame for increased rigidity

6-inch Wide Caster Wheels

Durable 6-inch wide front casters with pneumatic tires provide long life and are easy on turf.

Removable foot pan

Removable foot pan for easy access to deck belt pulleys, spindles and clean-up.

Adjustable tracking

The easily accessible adjustment allows fine-tuning of straight line tracking without tools.

Zero-turn steering system

Individual, hydraulic wheel-drive provides very precise maneuvering and allows the mower to rotate around its own axis, without any turning radius.

Pedal-assisted cutting deck lift

Ergonomically designed deck lifting system offers precise cutting height adjustment. Easy and quick adjustment from the operator’s seat.

Comfortable operation

Convenient seat slide with spring suspension, large dampened steering levers with premium foam grip and multiple control lever adjustments for operator preference.

Hour meter with service minder

Indicates when it's time to service your mower.

Premium seat

Thick cushions and EVC (elastomeric vibration control) provide unsurpassed comfort for the operator. The two tone vinyl covers are replaceable in the event of damage.

Kawasaki engine

Kawasaki engines offer smooth, quiet, reliable power. Heavy-duty components offer long life and electric start is standard.

Specifications

Approval

Commercial Warranty: 1 Year Limited

Capacity

Productivity: 4.9 acres/hr
Speed forward max: 10 mph
Speed forward min: 0 mph

Cutting deck

Cutting width: 61 in
Cutting deck type: Fabricated flat
Cutting methods: Collect/Mulch/Side ejection
Cutting deck material: Steel
Deck thickness: 11 gauge
Cutting height steps: 12
Blade engagement: Electric clutch
Clutch rating: 200 ft.lb
Blades: 3 pcs
Blade-tip speed: 18500 fpm
Anti-scalp wheels: 2
Nose roller: Yes
Deck lifting system: Manual, foot assisted
Powder-coated cutting deck: Yes
Spindle/mandrel type: Cast iron
Greasable mandrels: Yes
Cutting height, min (approximate): 1.5 inch
Cutting height, max (approximate): 4.5 in

Dimensions

Base machine, length: 75.5 in
Base machine, width (chute down): 76 in
Base machine, width (chute up): 62.3 in
Weight: 790 lbs
Base machine, height (ROPS down): 45.5 in
Base machine, height (ROPS up): 72 in
Tire size, front Width: 6.5 in
Tire size, front Diameter: 13 in
Tire size, front Diameter wheel: 6 in

Drive system

Transmission type: Hydrostatic
Transmission manufacturer: Hydro-Gear
Transmission model: ZT 3400
Pump displacement: 12 cm³
Fan-cooled pumps: Yes

Engine

Engine manufacturer Kawasaki
Engine name FS Series V-Twin
Power 23 hp
Cylinder displacement 44.3 cu.inch
Cylinders 2
Engine cooling Air
Generator 16 A
Air Filter type Standard
Fuel Type Gasoline
Engine lubrication type Full pressure
Oil filter Yes
Fuel tank volume (with reserve) 5 gal (US)
Fuel tank location Side (Single)

Equipment

Seat material: Vinyl
Seat spring: Yes
Seat back height: High
Hour meter: Digital
Cup holder: Yes
Armrests: Yes
ROPS: Yes
Seat type: Deluxe, armrests
