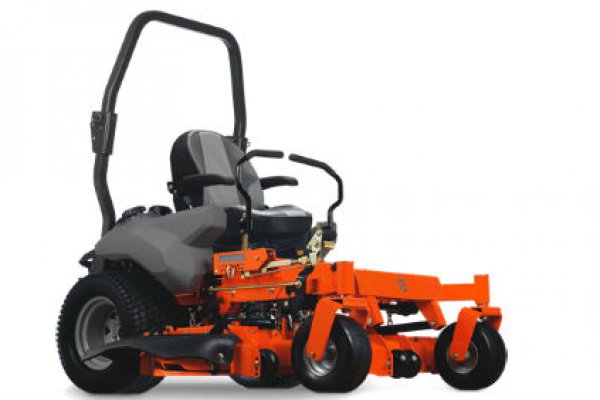

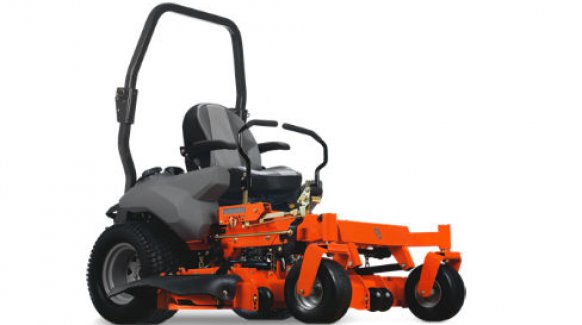

Husqvarna HUSQVARNA PZ 72 966 61 47-01

Husqvarna HUSQVARNA PZ 72 966 61 47-01 for sale at H&R Agri-Power

Double tap to zoom

Husqvarna HUSQVARNA PZ 72 966 61 47-01 for sale at H&R Agri-Power



Roll Over Protection System (ROPS)

The practical foldable ROPS protects the user and can be lowered in areas with low-hanging branches.

High-performance cutting deck

The combination of 6" deck depth, high-performance blades and optimized deck baffles allows for exceptional cut quality and clipping dispersal.  This gives you faster cutting speeds for increased productivity while minimizing missed grass or clumps.

Heavy-duty spindle

The rugged cast iron blade spindle assembly features long lasting construction and greasable ball bearings.

Oversized chassis

2'' x 3'' tube chassis combined with large rear and front tires provide superior strength and improved ride quality.

Hydro drive system

The standard drive system features Hydro-Gear pumps and Parker wheel motors. The 7

Hands-free deck lift

The robust, pedal-operated deck lift system allows quick, hands-free operation.

Adjustable steering levers

Steering levers are adjustable for different size operators - ergonomically angled inward for more comfort and can be adjusted to suit your particular style.

Stable ride

Low center of gravity and wide stance ensure exceptional stability and riding comfort. Wide tires reduce grass compaction.

Hour meter with service minder

Indicates when it's time to service your mower.

Premium suspension seat

Deep cushions and EVC (elastomeric vibration control) provide unsurpassed comfort for the operator. Additional full suspension system gives a smoother ride on rough terrain during long working hours.

Zero-turn steering system

Individual, hydraulic wheel-drive provides very precise maneuvering and allows the mower to rotate around its own axis, without any turning radius.

Heavy-duty construction

The heart of the cutting deck is 7-gauge steel with a rolled front edge, 1-1/2

Flat-free casters

Durable steel front caster yokes feature heavy-duty tapered roller bearings and flat-free tires.

Convenient Control Panel

Convenient side mounted control panel places the choke, throttle, and ignition in one location for easy access.

Easy-access service points

Oil and filter maintenance, hydraulic drive system components/adjustment, electrical system and battery are all within easy reach so you can quickly get back to being productive.

Adjustable tracking

The easily accessible adjustment allows fine-tuning of straight line tracking without tools.

Large fuel capacity

11.4 gallons (Dual 5.7 gallon tanks) for up to 12 hours of mowing time. Large 3.5 inch diameter refill tube for easy refuelling.

Commercial-grade Engine

The Kawasaki V-twin is an overhead valve engine with full pressure lubrication and spin-on oil filter. It combines exceptional power and torque with fuel efficiency and reduced emissions.

Commercial duty chassis

The chassis is constructed of 2” x 3” steel tube with 11 gauge wall thickness for superior strength and durability. The open design also allows for more convenient servicing and reduced debris buildup.

Heavy-duty canister air filter

The heavy-duty canister air filter provides maximum protection for the engine in tough mowing conditions.

Stability and protection

Protective engine compartment and wide wheel stance ensure a more secure and stable ride.

Removable foot pan

Removable foot pan for easy access to deck belt pulleys, spindles and clean-up.

Vibration-isolated platform

Rubber isolators set your hands, body and feet apart from the frame, which means less fatigue during operation.

Optional Light Kit

Optional high powered clamp on style headlights feature simplified installation, plug directly into harnesses on 2005+ units and are functional with existing key switch.



Homeowner Warranty: N/A
Commercial Warranty: 3 Year Limited - Limited Lifetime Frame, Spindle Housing & Leading Deck Edge


Productivity: 7 acres/hr
Speed forward max: 12 mph
Speed forward min: 0 mph

Cutting deck

Cutting width: 72 in
Cutting deck type: Fabricated
Cutting methods: Collect/Mulch/Side ejection
Cutting deck material: Steel
Deck thickness: 7 gauge
Cutting height steps: 17
Blade engagement: Electric clutch
Clutch rating: 250
Blades: 3 pcs
Blade-tip speed: 18210 fpm
Anti-scalp wheels: 6
Deck lifting system: Manual, foot activated
Powder-coated cutting deck: Yes
Spindle/mandrel type: Cast iron
Greasable mandrels: Yes
Cutting height, min (approximate): 1 inch
Cutting height, max (approximate): 5 in


Base machine, length: 86 in
Base machine, height: 47.5 in
Base machine, width (chute down): 86 in
Base machine, width (chute up): 73.5 in
Weight: 1400 lbs
Base machine, height (ROPS down): 47.5 in
Base machine, height (ROPS up): 72 in
Tire size, front Width: 6.5 in
Tire size, front Diameter: 13 in
Tire size, front Diameter wheel: 6 in

Drive system

Transmission type: Pump/Wheel motor
Transmission manufacturer: Hydro-Gear/Parker
Pump displacement: 16 cm³
Fan-cooled pumps: Yes
Wheel motor displacement: 19 cu.inch
Hydraulic reservoir: 6 qt


Engine manufacturer: Kawasaki
Engine name: FX Series
Power: 31 hp
Cylinder displacement: 60.9 cu.inch
Cylinders: 2
Engine cooling: Air
Generator: 15 A
Air Filter type: Heavy-Duty Canister Style
Fuel Type: Gasoline
Engine lubrication type: Full pressure
Oil filter: Yes
Fuel tank volume (with reserve): 11 gal (US)
Fuel tank location: Side (Dual)


Seat material: Vinyl
Seat back height: High
Hour meter: Digital
Cup holder: Yes
Armrests: Yes
Seat type: Premium, suspension
