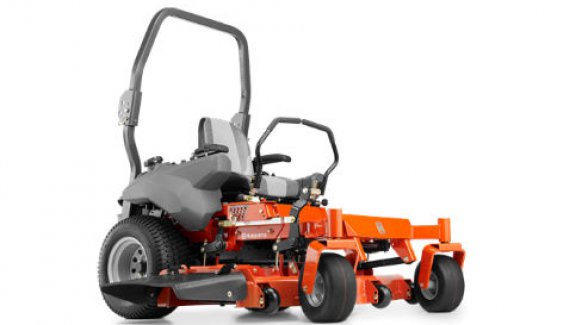

Husqvarna HUSQVARNA P-ZT 60 966 61 35-02

Double tap to zoom



Features

Roll Over Protection System (ROPS)

The practical foldable ROPS protects the user and can be lowered in areas with low-hanging branches.

High-performance cutting deck

The combination of 6" deck depth, high-performance blades and optimized deck baffles allows for exceptional cut quality and clipping dispersal.  This gives you faster cutting speeds for increased productivity while minimizing missed grass or clumps.

Oversized chassis

2'' x 3'' tube chassis combined with large rear and front tires provide superior strength and improved ride quality.

Commercial drive system

Hydro-Gear's ZT3400 series commercial transmissions are fully serviceable and offer higher ground speeds with smooth performance.

Commercial duty chassis

The chassis is constructed of 2” x 3” steel tube with 11 gauge wall thickness for superior strength and durability. The open design also allows for more convenient servicing and reduced debris buildup.

Heavy-duty spindle

The rugged blade spindle assembly features cast aluminum construction and greasable tapered bearings.

Easy-access service points

Oil and filter maintenance, hydraulic drive system components/adjustment, electrical system and battery are all within easy reach so you can quickly get back to being productive.

10 gauge steel deck

Fully baffled 10 gauge steel deck with 7 gauge skirts and rolled-under front edge for greater durability and superior cut quality

Easy height control

Foot activated deck lift and cutting height control allows for easy, quick adjustments.

Optional Light Kit

Optional high powered clamp on style headlights feature simplified installation, plug directly into harnesses on 2005+ units and are functional with existing key switch.

Tough caster assembly

Durable steel front caster yokes feature heavy-duty tapered roller bearings and pneumatic tires.

Adjustable steering levers

Steering levers are adjustable for different size operators - ergonomically angled inward for more comfort and can be adjusted to suit your particular style.

Removable foot pan

Removable foot pan for easy access to deck belt pulleys, spindles and clean-up.

Adjustable tracking

The easily accessible adjustment allows fine-tuning of straight line tracking without tools.

Large fuel capacity

11.4 gallons (Dual 5.7 gallon tanks) for up to 12 hours of mowing time. Large 3.5 inch diameter refill tube for easy refuelling.

Zero-turn steering system

Individual, hydraulic wheel-drive provides very precise maneuvering and allows the mower to rotate around its own axis, without any turning radius.

Heavy-duty canister air filter

The heavy-duty canister air filter provides maximum protection for the engine in tough mowing conditions

Stable ride

Low center of gravity and wide stance ensure exceptional stability and riding comfort. Wide tires reduce grass compaction.

Hour meter with service minder

Indicates when it's time to service your mower.

Premium seat

Thick cushions and EVC (elastomeric vibration control) provide unsurpassed comfort for the operator. The two tone vinyl covers are replaceable in the event of damage.

9 Bushel Collection System

Increase productivity and versatility with a 9 bushel triple bag collection system. Unique design removes or installs in a matter of minutes.

Kawasaki engine

Kawasaki engines offer smooth, quiet, reliable power. Heavy-duty components offer long life and electric start is standard.

Specifications

Approval

Homeowner Warranty: N/A
Commercial Warranty: 2 Year Limited

Capacity

Productivity: 4.9 acres/hr
Speed forward max: 10 mph
Speed forward min: 0 mph

Cutting deck

Cutting width: 60 in
Cutting deck type: Fabricated flat
Cutting methods: Collect/Mulch/Side ejection
Cutting deck material: Steel
Deck thickness: 10 gauge
Cutting height steps: 17
Blade engagement: Electric clutch
Clutch rating: 150 ft.lb
Blades: 3 pcs
Blade-tip speed: 18500 fpm
Anti-scalp wheels: 3
Deck lifting system: Manual, foot activated
Powder-coated cutting deck: Yes
Spindle/mandrel type: Aluminium, commercial
Greasable mandrels: Yes
Cutting height, min (approximate): 1.5 inch
Cutting height, max (approximate): 5.5 in

Dimensions

Base machine, length: 81 in
Base machine, width (chute down): 74.5 in
Base machine, width (chute up): 62.5 in
Weight: 1100 lbs
Base machine, height (ROPS down): 46 in
Base machine, height (ROPS up): 72.5 in
Tire size, front Width: 6.5 in
Tire size, front Diameter: 13 in
Tire size, front Diameter wheel: 5 in

Drive system

Transmission type: Hydrostatic
Transmission manufacturer: Hydro-Gear
Transmission model: ZT 3400
Pump displacement: 12 cm³
Fan-cooled pumps: Yes
Wheel motor displacement: 19 cu.inch
Hydraulic reservoir: 6 qt

Engine

Engine manufacturer: Kawasaki
Engine name: FX Series
Power: 24.5 hp
Cylinder displacement: 51.9 cu.inch
Cylinders: 2
Engine cooling: Air
Air Filter type: Heavy-Duty Canister Style
Fuel Type: Gasoline
Engine lubrication type: Full pressure
Oil filter: Yes
Fuel tank volume (with reserve): 11 gal (US)
Fuel tank location: Side (Dual)

Equipment

Seat material: Vinyl
Seat spring: Yes
Seat back height: High
Hour meter: Digital with pre-programmed service intervals
Cup holder: Yes
Armrests: Yes
ROPS: Yes
Seat type: Premium
