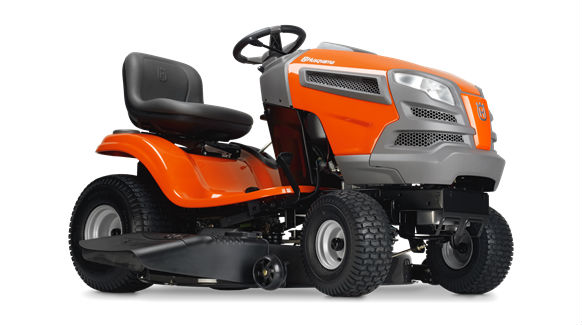

Husqvarna YTH22V42 CARB - 960 43 02-17

Double tap to zoom



Features

U-Cut™
The U-Cut steering technology makes it extra easy to make turns and mow around obstacles. This means less uncut areas, extraefficient mowing and improvedmanoeuvrability.

Reinforced Cutting Deck
The stamped cutting deck is reinforced with heavy flat-stock steel for added strength and durability on the leading edge and trim side. (48" shown)

Cast iron front axle
Heavy cast front axle provides superior balance and stability, even with a collector.

Air Induction Mowing Technology
Air is drawn from the top and bottom of the deck, improving grass lift and delivering a superior cut.

Cruise control
Allows the tractor to maintain consistent speed, even in rough terrain.

Briggs & Stratton Intek V-Twin
Two-cylinder engine provides longer life for the most demanding jobs. Features full-pressure lubrication, an advanced debris management system, and a mechanical compression release for reliable starting.

Pedal-operated hydrostatic transmission
Speed and direction are managed by pedals, which lets you keep both hands on the steering wheel, for optimum driving control.

Step-through
Ensures comfortable and easy mounting and dismounting.

Fender-mounted cutting height adjustment
Convenient fender mounted deck lever is spring assisted for easy operation.

Reverse Operating System (ROS)
For improved safety. The ROS disengages the cutting blades when driving in reverse.

Safety switch under seat
The tractor is equipped with a safety switch under the seat. If the driver leaves the seat the engine and cutting deck are automatically switched off.

Ergonomic steering wheel
Comfortable steering wheel, angled for optimal driver’s position.

Dual draglinks
Give tighter turning radius and improved manoeuvrability.

Manual blade engagement
Blade engagement lever is located on the dash for ease of operation.

Powder-coated cutting deck
Powder-coated deck for improved durability and corrosion resistance.

Anti-scalp wheels
The cutting deck is equipped with anti-scalp wheels, which reduce the risk of scalping when cutting uneven lawns.

Deck Wash Port
Connect your water hose to the port to clean the underside of your deck.

Visible fuel level
Transparent fuel indicator makes it easy to check fuel level.

Hour meter with service minder
Indicates when it's time to service your mower.

Cup holder
Cup holder for refreshments while mowing.

Headlights
Makes the tractor more visible and allows you to work when it’s dark.

Collector accessory
Two or three bin collectors available as accessories.

Year-round use
A wide range of accessories makes our tractors versatile and useful all year round. They can be fitted with trailers, snow blades, brushes and more.

BioClip® kit/cover accessory
Makes it possible to convert your mower to BioClip®, which means that the grass is cut into small pieces that quickly decompose and return to the lawn as fertiliser, also making the lawn more drought resistant.

Versatility through accessories
With different optional accessories this machine can be converted into an ultimate garden tool performing ridging, edging and dethatching.

Specifications

Cutting deck

Cutting width: 106.7 cm
Nose roller: No
Greasable mandrels: No
Anti-scalp wheels: 2

Drive system

Drive method: Pedal-operated
Speed reverse max: 2.9 mph
Speed reverse min: 0 mph

Engine

Motor/engine manufacturer: Briggs & Stratton
Engine name: Intek
Cylinders: 2
Generator: 5&3 A
Battery: 12 V
Battery: 28 Ah
Power/fuel type: Gasoline
Fuel tank volume (with reserve): 3 gal (US)
Oil filter: Yes

Equipment

Seat material: Vinyl
Front-End Protection: None
Hour meter: Digital with pre-programmed service intervals
Seat back height: High
Steering wheel type: Deluxe Overmolded
Collector: Available as accessory
BioClip® kit/plate: Available as accessory

Transmission

Transmission type: Hydrostatic
Transmission manufacturer: Tuff Torq
