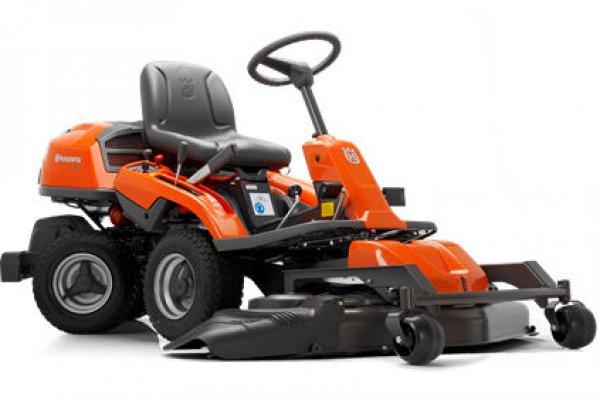

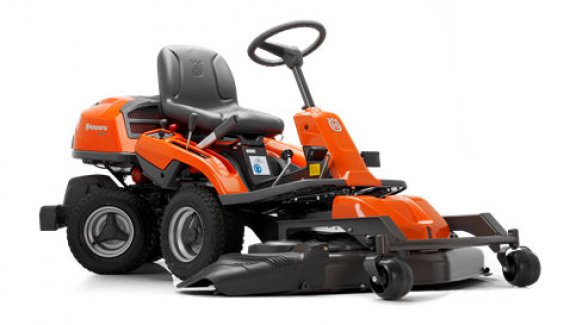

Husqvarna R 220T

Husqvarna R 220T for sale at H&R Agri-Power

Double tap to zoom

Husqvarna R 220T for sale at H&R Agri-Power



Articulated steering

The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine.  The result is superior maneuverability with a minimum turning radius at full lock.

Front-mounted cutting deck

Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.

Rear-wheel drive

The efficient rear-wheel drive system ensures excellent traction when mowing on slopes.

Service position

Service position on the cutting deck facilitates cleaning and service.

Comfortable driver's position

With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable

Pedal-operated hydrostatic transmission

Speed and direction are managed by pedals, which lets you keep both hands on the steering wheel, for optimum driving control.

Quick coupling

Unique quick coupling allows attachments to be changed quickly and efficiently without tools.

Adjustable pitch angle

Possible to fine-tune the cutting deck position, to ensure perfect cutting results at all times.

Pivoting rear axle

The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.

Versatile usage

A wide range of cutting decks and attachments will make your front mower exceptionally versatile, all year round.

Easy-access controls

Controls are easy accessible and designed for optimum user comfort.

Easy-access cutting height lever

The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.

Four large wheels

Large wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.

Easy-access service points

The tilting hood and easy-access servicing points make maintenance and servicing easy.

Storage compartment

The open left-hand storage is easy to access while mowing.

External fuel cap

Thanks to the external fuel cap, you don't have to open the engine hood when taking on more fuel. The extra wide fuel tank opening makes refueling even easier.

Automatic blade engagement

The blades are engaged automatically, when you lower the cutting deck.

Rear ejection

The rear ejection cutting mode provides high-effective cutting performance on areas that are cut less frequently.

Engine behind driver

Thanks to the rear-mounted engine, you get better overview of the mowing and less noise and emissions in the driver’s area.

Transparent fuel tank

Large, transparent fuel tank makes it easy to check the fuel level.

Bottle holder

Convenient bottle holder for refreshments.



Battery type: Lead/Acid
Battery capacity: 24 Ah

Cutting deck

Uncut circle: 26 in
Cutting width, min: 41 in
Cutting width, max: 48 in
Optional cutting decks: Combi 103, Combi 112
Cutting deck type: Stamped
Cutting deck material: Steel
Cutting height, max (approximate): 4 in
Cutting height, min (approximate): 1.5 inch
Cutting height steps: 10 pcs
Blade engagement: Automatic
Blades: 3 pcs
Powder-coated cutting deck: Yes


Vibration level steering wheel: 2.5 m/s²
Vibration level seat: 0.7 m/s²

Drive system

Transmission type: Hydrostatic
Transmission manufacturer: Tuff Torq
Drive method: Pedal-operated
Speed forward max: 5.59 mph
Speed reverse max: 5.59 mph
Transmission model: K46


Seat material: Vinyl
Seat back height: Medium
Foldable seat: Yes
Steering wheel type: Comfort


Engine manufacturer: Briggs & Stratton
Engine name: 800 Series
Net power at preset rpm Energy: 12.6 kW
Net power at preset rpm: 3000 rpm
Cylinder displacement: 40.03 cu.inch
Cylinders: 2
Engine cooling: Air
Generator: 16 A
Battery: 12 V
Battery: 24 Ah
Fuel Type: Gasoline
Fuel tank volume: 25.36 US pint
Fuel tank volume (with reserve): 3.2 gal (US)
Engine lubrication type: Full pressure
Oil filter: Yes


Tire dimensions, front: 165/60-8
Tire dimensions, rear: 165/60-8
Wheelbase: 34.9 in
Ground clearance: 4.1 in
Base machine, height: 42.13 in
Base machine, length: 74.8 in
Base machine, width: 35 in
Weight: 520 lbs
