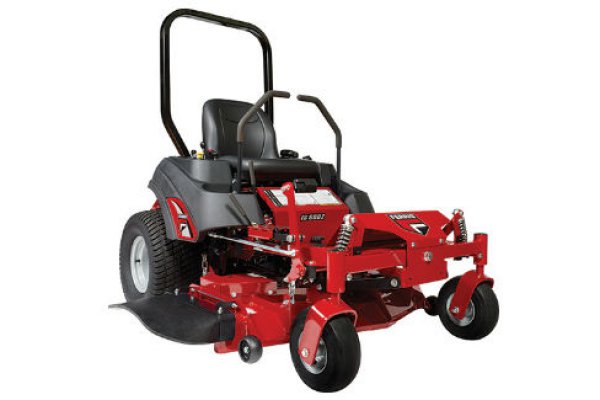

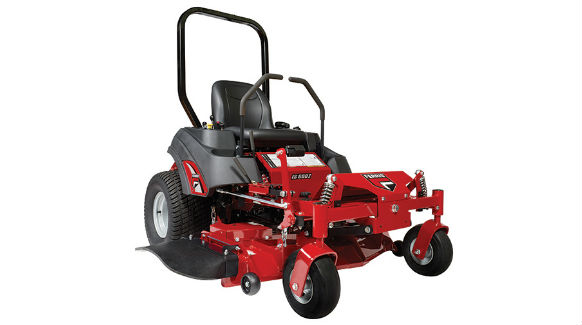

Ferris 5901701

Double tap to zoom



Features

ENGINE FEATURES

  • Patented advanced debris management system  (Briggs & Stratton® Commercial Series Models)
  • Rugged 5.5-gallon fuel tank
  • Heavy-duty integrated rear bumper protects engine compartment



MOWER DECK

  • Fabricated 10-gauge steel with double top deck, overlap  welded corners and double reinforced side skirts, steel  reinforced leading edge
  • Foot-operated deck lift, with adjustable pedal, can change  cut height in 1/4" increments from 1.5"- 4.5"
  • Cast aluminum greaseable spindles with greaseable  bearings for longer usable life



SUSPENSION & DRIVE TRAIN

  • Patented suspension system enables you to mow uneven terrain faster with a consistent cut quality
  • Dual, commercial Hydro-Gear® ZT-3200® Transaxles feature 7" cooling fans that assist with repelling debris
  • Removable floor pan provides easy access



SPEED

  • Ground speed up to 8 mph (44"), 10 mph (48", 52")



OPERATOR SYSTEMS

  • Ergonomic control panel features cup holder and fuel gauge for operator convenience
  • Mid-back seat features enhanced bolstering in seat,  with armrests for added comfort, and offers adjustable fore and aft positioning (48", 52")
  • Contour seat offers adjustable fore and aft positioning (44")
  • Comfortable thicker 1" tubular steering control levers
  • Flip-up seat for easy access
  • Removable floor pan provides easy access compartment

Specifications

Engine Brand Briggs & Stratton® Commercial Series
Engine Power Rating * 25
Displacement (cc) 724
PTO Electric
Cylinders 2
Starter Electric
Fuel Tank Capacity (gal) 5.5
Cutting Width (in) 48
Cutting Height (in) 1.5 - 4.5
Spindles Aluminum
Deck Construction 10-guage fabricated
Suspension Front and rear adjustable dual coil-over shocks
Transmission Dual commercial Hydro-Gear® ZT-3200® transaxles with 7" cooling fans
Drive Axles (in) 1.125
Caster Tires (in) 13 X 5-6
Drive Tires (in) 22 x 11-10
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Overall Length (in) 80
Overall Width (in) Deflector Down/Deflector Up 62.5/49.5
Dry Weight (lbs) 963
Seat Package Mid-back seat with arm rests
Instrumentation/Hour Meter Engine and PTO hour meter
Certified Roll-over Protection System Standard, retractable seatbelt
Controls / Safety Group Adjustable twin fold out 1" tubular steering levers with comfort grip
Parking Brake / Safety Circuit Internal transaxles
