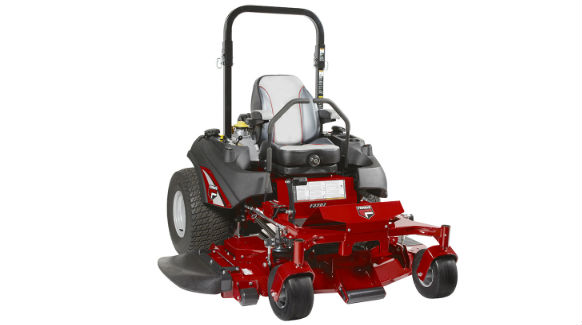

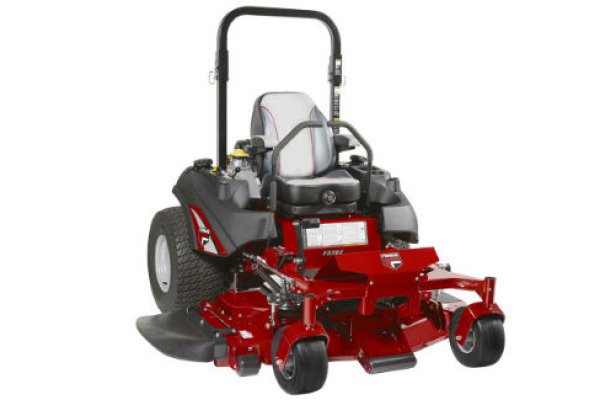

Ferris 5901646

Double tap to zoom



Features

ENGINE FEATURES

  • Oil Guard™ System on Vanguard™BIG BLOCK™ EFI engine options
  • Two-stage industrial air-cleaner
  • Easy-to-use oil drain
  • Twin 5.5-gallon rugged, impact resistant fuel tanks with switch for fuel source (11 gallons total)
  • Heavy-duty integrated rear bumper protects engine compartment



MOWER DECK

  • iCD™ Cutting System•  2-belt drive system that improves belt life and is more dependable
  • Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5"
  • Hercules™ II Spindles with greaseable bearings for longer usable life



DRIVE TRAIN

  • Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles feature 9" cooling fans that assist with repelling debris
  • Large turf friendly 26" rear tires for increased traction and performance
  • Flat-free caster tires



SPEED

  • Ground speed up to 12 mph



OPERATOR SYSTEMS

  • Ergonomic control panels feature a cup-holder, storage compartment and fuel gauges for operator convenience
  • Comfortable thicker 1" tubular steering control levers
  • Suspension seat in our premium high-back design features enhanced bolstering, with adjustable cushioned armrests for added comfort, manually adjusts to operator's height and weight, reclining back and adjustable lumbar support with fore and aft positioning for a custom-like fit
  • Flip-up seat
  • Removable floor pan provides easy access

Specifications

MODEL 6901646
Engine Brand Vanguard™ BIG BLOCK™ EFI with Oil Guard
Engine Power Rating * 37 gross hp
Displacement (cc) 993
PTO Electric
Cylinders 2
Starter Electric
Fuel Tank Capacity (gal) 11
Cutting Width (in) 72
Cutting Height (in) 1.5 - 5
Spindles Hercules™ II Spindles
Deck Construction iCD™ Cutting System
Suspension N/A
Transmission Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Drive Axles (in) 1.375 Tapered
Caster Tires (in) 13 x 6.5-6 Flat-free
Drive Tires (in) 26 x 12-12
Ground Speed-Fwd (mph) 0-12
Ground Speed-Rev (mph) 0-6
Overall Length (in) 81.5
Overall Width (in) Deflector Down/Deflector Up 88 / 74
Dry Weight (lbs) 1439
Seat Package Premium suspension high-back
Hour Meter Fuel level gauge in each tank, hour meter
Certified Roll-over Protection System Standard, 165° foldable
Controls / Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit Internal transaxles
