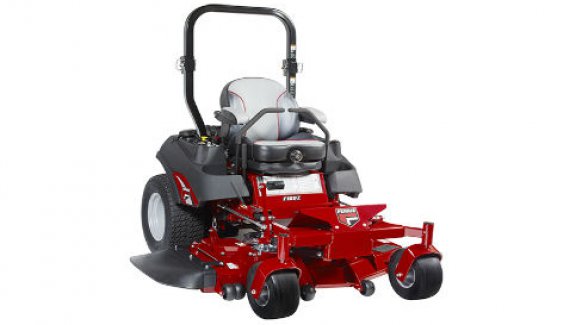

Ferris 5901516

Double tap to zoom



Features

ENGINE FEATURES

  • Two-stage industrial air-cleaner
  • Easy-to-use oil drain
  • Twin 5.5-gallon rugged, impact resistant fuel tanks with  switch for fuel source (11 gallons total)
  • Heavy-duty integrated rear bumper protects engine compartment



MOWER DECK

  • iCD™ Cutting System
  • Foot-operated deck lift, with adjustable pedal, can change  cut height in 1/4" increments from 1.5"- 5"
  • Spindles with greaseable bearings for longer usable life:  cast-iron greaseable (52"), aluminum greaseable (48")



DRIVE TRAIN

  • Dual commercial Hydro-Gear® ZT-4400™ Transaxles feature 8.3" cooling fans that assist with repelling debris
  • Large turf friendly 24" rear tires for increased traction and performance
  • Flat-free caster tires



SPEED

  • Ground speed up to 10 mph



OPERATOR SYSTEMS

  • Ergonomic control panels feature fuel gauges for  operator convenience
  • Comfortable thicker 1" tubular steering control levers
  • Suspension seat in our premium mid-back design features enhanced bolstering, with adjustable cushioned armrests for added comfort, manually adjusts to operator's height and weight in addition to fore and aft positioning for a custom-like fit
  • Flip-up seat
  • Removable floor pan provides easy acces

Specifications

MODEL 5901516
Engine Brand Vanguard™ 810
Engine Power Rating * 26 gross hp
Displacement (cc) 810
PTO Electric
Cylinders 2
Starter Electric
Fuel Tank Capacity (gal) 11
Cutting Width (in) 48
Cutting Height (in) 1.5 - 5
Spindles Aluminum
Deck Construction iCD™ Cutting System
Suspension N/A
Transmission Dual commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Drive Axles (in) 1.375 Tapered
Caster Tires (in) 13 x 6.5-6 Flat-free
Drive Tires (in) 24 x 9.5-12
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Overall Length (in) 78
Overall Width (in) Deflector Down/Deflector Up 61.5 / 51
Dry Weight (lbs) 997
Seat Package Premium suspension mid-back
Instrumentation Fuel level gauge in each tank, hour meter
Certified Roll-over Protection System Standard, 180° foldable
Controls / Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit Internal transaxle
