200 lbs. Spyker Hopper

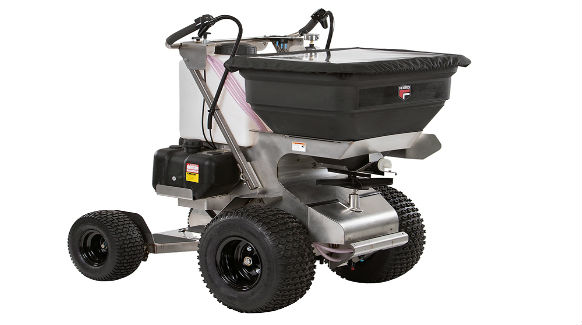

The Pathfinder XC™ FS2200 hopper will handle up to 200 lbs. of granular material providing over one acre of maximum coverage.
16 Gallons of Liquid Capacity
Covers a maximum of 1.4 acres between fill-ups.
Selectable Spray Width
The Pathfinder XC™ FS2200 allows the operator to select between two spray widths. A 3’ spray width is perfect for trim applications and narrow spaces. A 10’ broadcast spray is used for wide open spaces.
100% Stainless Steel Frame
Stainless steel resists corrosion from the granular and liquid chemicals distributed by the unit.
A low-friction sulky pivots on a ¾” tapered roller bearing for smooth movement. No mechanical steering assistance is required.
The Pathfinder XC™ FS2200 fits easily through a 36” gate, providing access to residential areas and condominium common areas.
|Fuel Capacity - gal (L)||2.5 (9.5 L)|
|Fuel Shut-Off Valve||Located on engine and below tank|
|Speed||Low Gear: 3.5 mph (5.6 km/hr) High Gear: 5.0 mph (8.0 km/hr)|
|Rear Tires||13 x 6.50 - 6|
|Spreader Hopper Capacity (lbs.)||200|
|Sprayer Tank Capacity - gal (L)||16.0 (60.6)|
|Spray Rate||Adjustable from 1/4 to 1/2 gallon per thousand square feet|
|Overall Width - in. (cm)||35.5 (90)|
|Dry Weight - lbs (kg)||450 (204)|
|Safety Interlock||This machine is equipped with a neutral safety start module. To start the engine, the transmission must be in the neutral (N) position.|
|Belts, Tires, Brake Pads, Hoses, Battery Warranty||Standard: 90 days Rental: 90 days|
|RPM||Full Speed: 3750 RPM (No load) Idle: 1400 RPM|
|Fuel Type||Regular unleaded gasoline, 87 octane or higher|
|Transmission Model||Peerless 855 Series, coated for corrosion resistance|
|Front Tires||18 x 9.5 - 8, RV antifreeze added for ballast and traction|
|Spreader Model||Spyker 220 Series|
|Spray Pump||2.0 gpm mechanically driven diaphragm pump|
|Nozzles||Broadcast: Turbo FloodJet TF-VS5 Trim: Turbo TeeJet TT11004VP|
|Overall Length - in. (cm)||58.0 (147)|
|Overall Height - in. (cm)||49.0 (124)|
|Full Weight - lbs (kg)||640 (290)|
|Charging Capacity||670 (304)|
