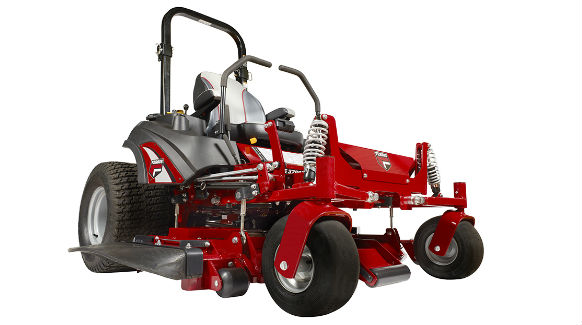

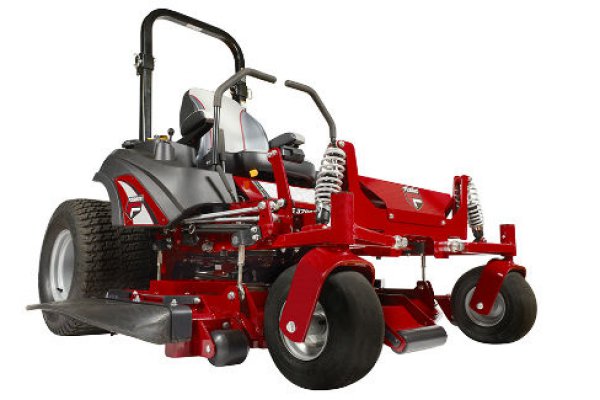

Ferris 5901694

Ferris 5901694 for sale at H&R Agri-Power

Double tap to zoom

Ferris 5901694 for sale at H&R Agri-Power



  • Standard-locking four-position speed control
  • Patent-pending Oil Guard™ System dry sump engine
    lubrication system — 500 hours between oil changes
  • 21" operator platform with five adjustable positions
  • Patent-pending pivoting front axle with twin stabilizer bars
  • Available with 61" or 72" mowing deck
  • 5" anti-scalp wheels made from high-impact copolymer polypropylene


Engine Brand Vanguard™ BIG BLOCK™ EFI with Oil Guard
Engine Power Rating * 37 gross hp
Displacement (cc) 993
PTO Electric
Cylinders 2
Starting Electric
Fuel Tank Capacity (gal) 11
Cutting Width (in) 72
Cutting Height (in) 1.75 - 5
Spindles cast-iron
Suspension Operator suspension platform with coil-over-shock suspension
Deck Construction iCD™ Cutting System
Transmission Dual commercial Hydro-Gear® ZT-4400® transaxles with 8" cooling fans
Drive Axles (in) 1.125
Drive Tires (in) 24 X 12-12
Caster Tires (in.) 13 X 6.5-6 flat-free
Ground Speed-Fwd (mph) 0 - 12
Ground Speed-Rev (mph) 0 - 5
Overall Length (in) 74.5
Overall Width (in) Deflector Down/Deflector Up 85.5 / 77
Dry Weight (lbs) 1327
Instrumentation Hour meter, fuel level gauge
Safety Group/Controls Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Parking Brake / Safety Circuit Internal transaxles
