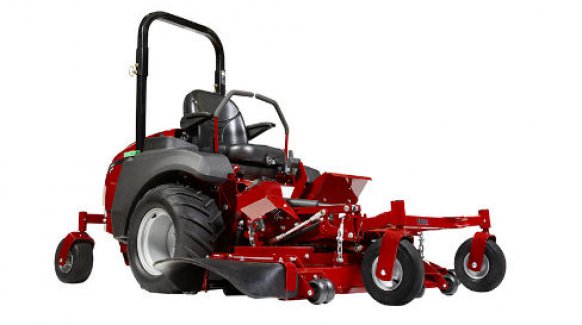

Ferris 5901236 w/ 5901238

Double tap to zoom



Features

  • The 31 gross-horsepower* Vanguard engine offers big performance along with a 3-year limited manufacturer’s warranty†.
  • The F800X has a speed of up-to 10 mph and features a pivoting rear axle with a floating front frame, pillow block bearings on its control mounts, dual hydro pumps and wheell motors equipped with 7” mounted cooling fans.
  • The iCD Cutting System comes with a 61” or 72” wide deck equipped with heavy-duty, cast-iron spindles.
  • The electric deck lift makes cut-height adjustments easy.
  • Quick access switches and quick release latches for the undercarriage and engine for easy maintenance.
  • Premium suspension seat for adjustable comfort.
  • Other features: twin six-gallon fuel tanks with integrated choke throttle, PTO and ignition switches; large, 24” flat-free drive tires; cup holder; and storage compartment.

Specifications

MODEL 5901236 w/ 5901238
Engine Brand Vanguard™
Engine Power Rating * 31 gross hp
Displacement (cc) 896
PTO Electric
Cylinders 2
Starting Electric
Fuel Tank Capacity (gal) 12
Cutting Width (in) 72
Cutting Height (in) 1.5 - 5
Spindles Cast-iron
Deck Construction iCD™ Cutting System
Transmission Dual hydro pumps and wheel motors with 7" cooling fans
Drive Axles (in) 1.25
Drive Tires (in) 24 x 12-12
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Overall Length (in) 115.5
Overall Width (in) Deflector Down/Deflector Up 88 / 74
Dry Weight (lbs) 1677
Seat Package Premium adjustable suspension seat
Certified Roll-over Protection System Standard, 90° foldable
Instrumentation Hour meter
Parking Brake / Safety Circuit Disk
