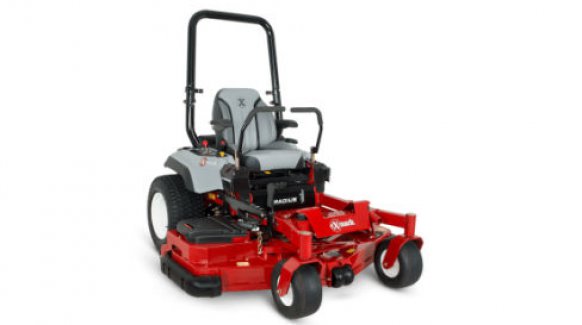

Radius S-Series Rear Discharge
Exmark Radius S-Series delivers the cut quality and durability professionals demand at an unbeatable value.
The Radius rear discharge mower comes with a 4 series UltraCut rear discharge deck. A 60” cut-width means you can cut more, quickly, while keeping clippings under control. Powered by Kohler ZT engines, with Hydro-Gear integrated transmissions and up to 9 mph fwd. ground speed. Radius S-Series improves productivity, but a operator seat with adjustable isolation technology and elastometric vibration control (EVC) means maximum comfort.
Heavy Duty Unibody Frame
Fully-welded using 2-inch by 3-inch frame tubes, the Radius frame design places major components including the engine, hydro drive and fuel tank lower, with better mass centralization. This gives the Radius increased hillside traction and stability, with heightened maneuverability.
Quick Adjustable Rollover Protection System (ROPS)
Uses an easy-to-fold up-and-down design built from round tubes and provides flexibility for placement of accessories.
Fuel Gauge Window
Easy-to-use, accurate sight window-type fuel gauge is standard on all Radius models.
Height of Cut Made Easy
The height of cut is positioned to provide an open operator platform that allows the operator to quickly locate the preferred cut position when viewing from the top down.
Adjustable Isolation Technology
Designed to offer increased operator isolation from vibration and bumps, Exmark’s exclusive adjustable seat isolation technology uses rubber isolation bumpers to suspend the operator seat above the chassis.
Provides increased service access to fuel system and engine compartment or help keep the seating surface cool and dirt free when not in use.
Radius Rear Discharge Deck
Available in 60-inch cutting width, the rear-discharge deck offers increased clipping discharge control, reduced noise, and the ability to trim on both sides of the cutting deck—all while keeping the operator clean.
|Blade Spindles||No maintenance, sealed and non-greasable spindles; 7.50"-diameter cutter housing contains 17mm (.67")diameter spindle shaft and hex blade drive.|
|Drive Tires||23 x 10.5-12 K500|
|Tractor Frame||Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel.|
|Steering Control||Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.|
|Front Caster Tires||13 x 6.5-6, smooth tread, pneumatic. Caged Roller Bearings|
|Parking Brake||Lever-actuated pawl brake.|
|Seat||High back seat with foam padded seat cushion , armrests, integral safety switch, and adjustable Seat Isolation System|
|Electrical||12-volt battery with 15-amp alternator.|
|Engine Speed||3,700 rpm|
|Air Filter||Cyclonic Air Cleaner|
|Fuel Type||Gas Carbureted|
|Fuel Capacity||7-gallon (26.5-L) single fuel tank with single fill location.|
|Fuel Indicator||Translucent Visual|
|Drive Description||Dual Hydro Gear ZT3400, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.|
|Speed||Infinitely variable speed selection from 0-9.0 mph (14.5 kmph) forward, 0-5.0 mph (8.0 kmph) reverse.|
|Deck Lift||Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.|
|Safety Package||Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.|
|ROPS||2-post foldable ROPS standard with seat belt and latch.|
|PTO Engagement||MagStop electromagnetic 125-ft-lb clutch|
|Drive Wheel Release||Allows unit movement without engine running.|
|Casters||.375" thick caster yoke arms|
|Width / Cutting Deck||60"|
|Deck Style||Floating Deck|
|Deck Style Description||Full-floating UltraCut Rear Discharge Deck. Rear-discharge standard with option to mulch.|
|Deck Construction||10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge high strength alloy side skirt.|
|Blade Tip Speed||Approximately 18,500 fpm.|
|Cutting Heights||1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from operator's seat.|
|Blades||3 Blades at 20.50" Length|
|Width||66.0 in ( 167.6 cm)|
|Length||84.3 in (214.1 cm)|
|Height||70.2 inches (178.3 cm)|
