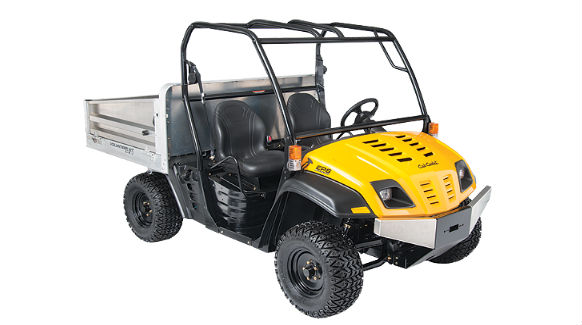

Cub Cadet Volunteer™ WT

Double tap to zoom



Features

UNRIVALED VERSATILITY

With more than 40 available attachments, no task or adventure will hold you back. It's designed to do it all while letting you enjoy the outdoors.

HAUL THE HEAVIEST LOADS

With a 1,400-lb payload capacity, even large jobs are no match. The Volunteer takes it with ease, meaning fewer trips for you to get the job done faster.

READY FOR ANYTHING

The Volunteer 4x4 EFI is ready for any job. On Campus, at work, or in the yard, finish what needs to get done while having some fun.

Specifications

SPECIFICATIONS
Series:  VOLUNTEER
Platform:  Utility Vehicle
Shocks:  Heavy-duty adjustable coil-cover
Power Port:  12V in-dash
Cargo Box:  Aluminum HD construction flatbed (1,200 lb. capacity)
L/W/H: 48"/60"/18"
Steering:  Electronic power steering w/ rack and pinion
Fuel Tank:  6 gal.
Selector:  Hurst® shifter (H-L-N-R)
Differential:  Hilliard® front/mechanical rear
Parking Brake:  Mechanical (hand lever)
Engine Cooling:  Liquid
Rear Axle Housing:  Die-cast aluminum
Ignition:  Transistor controlled
Tread Center:  F: 52"/R: 50"
Length/Width/Height:  140” / 66” / 73”
Front Tire Size:  25" x 10"-12"
Towing/Payload:  1,700 lbs. (total payload includes operator, passenger, and bed capacity)
Engine:  31 HP Kohler® Aegis® V-Twin EFI
Air Cleaner:  Heavy-duty replaceable
Alternator:  12V - 65 amp
Brakes:  4-wheel, 8" hydraulic disc
Torque:  47.7 ft.-lbs. @ 2,400 rpm
Indicators:  Fuel gauge, speedometer, battery, oil, parking brake, hour meter and 4x4 engage
Rims:  12” steel (black)
Lubrication:  Full pressure w/ spin-on oil filter
Rear Tire Size:  25" x 10"-12"
Seats:  Sport bucket style
Brake Lines:  Stainless steel braided
Drive:  Enclosed CVT
Wiring:  Automotive fused
Wheel Base:  78"
Storage:  Glove box in dash and under-seat storage
Headlights:  Halogen 37.5-watt
Battery Voltage:  450 cold crank amp
Turning Circle (Diameter):  22'
Tires:  Dual-purpose tread
Weight:  1,735 lbs.
Fuel:  Gas
Transaxle:  Fully enclosed, oil bath
Displacement:  747cc
Speed_UV- 0-25 mph (Hi-Lo Speed)
Receiver:  Receiver
Frame:    3" ladder construction
Ground Clearance:  11" (under foot platform)
