Features
UNRIVALED VERSATILITY
With more than 40 available attachments, no task or adventure will hold you back. It's designed to do it all while letting you enjoy the outdoors.
HAUL THE HEAVIEST LOADS
With a 1,400-lb payload capacity, even large jobs are no match. The Volunteer takes it with ease, meaning fewer trips for you to get the job done faster.
READY FOR ANYTHING

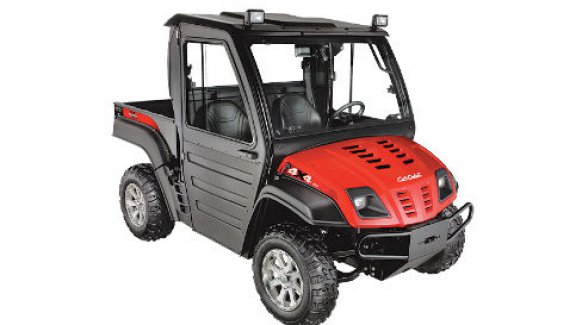

The Volunteer 4x4 EFI is ready for any job. On Campus, at work, or in the yard, finish what needs to get done while having some fun.
Specifications
| SPECIFICATIONS |
| Platform: Utility Vehicle |
| Series: VOLUNTEER |
| Battery Voltage: 450 cold crank amp |
| Fuel Tank: 6 gal. |
| Brakes: 4-wheel, 8" hydraulic disc |
| Bumper: Steel/Aluminum brush guard |
| Cargo Box: Steel (1,000 lbs) L/W/H: 51.6"/42"/11.5" |
| Differential: Hilliard® front/mechanical rear |
| Displacement: 747cc |
| Drive: Enclosed CVT |
| Engine: 31 HP Kohler® Aegis® V-Twin EFI |
| Engine Cooling: Liquid |
| Frame: 3" ladder construction |
| Front Tire Size: 26" x 9"-12" |
| Fuel: Gas |
| Ground Clearance: 11" (under foot platform) |
| Headlights: Halogen 37.5-watt |
| Ignition: Transistor controlled |
| Indicators: Fuel, battery, oil, parking brake & hour meter |
| Length/Width/Height: 119"/63.55"/73" |
| Lubrication: Full pressure w/ spin-on oil filter |
| Parking Brake: Mechanical |
| Power Port: 12V in-dash |
| Rear Axle Housing: Die-cast aluminum |
| Rear Tire Size: 26" x 11"-12" |
| Receiver: 2" - class 1 |
| Rims: 12" steel |
| Seats: Sport |
| Selector: Hurst® shifter (H-L-N-R) |
| Shocks: Adjustable coil-over |
| Speed: 0 - 25 mph |
| Steering: Rack and pinion |
| Storage: Glove box, under-seat |
| Tires: Trail |
| Torque: 47.7 ft.-lbs. @ 2,400 rpm |
| Towing/Payload: 1,400 lbs (total payload includes operator, passenger and bed capacity) |
| Transaxle: Fully enclosed, oil bath |
| Travel: 8" |
| Tread Center: F: 52"/R: 50" |
| Weight: 1,650 lbs |
| Wheel Base: 78" |
| Wiring: Automotive fused |
| Alternator: 12V - 65 amp |
| Air Cleaner: Heavy-duty replaceable |
| Turning Circle (Diameter): 11' |
| Brake Lines: Stainless steel braided |
